Rubber Bellows Only Yokohama S-240-3R Triple Convoluted Air Actuator With Hoop

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-240-3

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	F-240-3	Structure:	Triple Convoluted
Brand:	Guomat Or Neutral	Fuction:	Reduce Shock
Condition:	Brand New	Design Height:	152 MM
Maximum Height:	232 MM	Minimum Height:	82 MM
Highlight:	S-240-3R Triple Convoluted Air Actuator , Triple Convoluted Air Actuator With Hoop

Rubber Bellows Only Yokohama S-240-3R Triple Convoluted Air Actuator With Hoop

Product Introduction

Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.

Specifications: F-240-3

Model Size	Height H(mm)			Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Standard height, approximate value at 0.49MPA internal pressure					Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
Model Size	Design Height	Max. Height	Min Height	Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
S-240-4R	206	316	111	±80	300	450	10.1	22.2	235	1.6	0.88	2.9-3.9
S-240-3R	152	232	82	±60	300	450	7.3	22.2	324	1.9	0.88	2.9-3.9
S-240-2R	98	148	53	±40	300	450	4.4	22.2	520	2.4	0.88	2.9-3.9
S-240-1R	72	110	40	±30	340	450	3.5	22.2	765	2.9	0.69	2.9-3.9

OEM Cross Reference

YOKOHAMA S-240-3R

YOKOHAMA S 240 3R

YOKOHAMA S2403R

Product Applications

Mineral sample pulverizers
Spin washing machines
Expanded metal machine
Concrete brick machine
Rotating table with the air spring
Crushing machine
Concrete screening machine
Carpet extraction machine
Commercial laundry machines
Coordinate measuring tables and machinery
Centrifugal separators

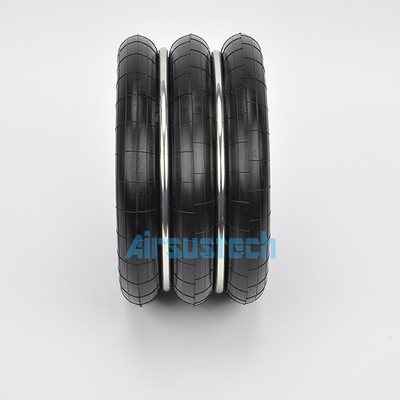

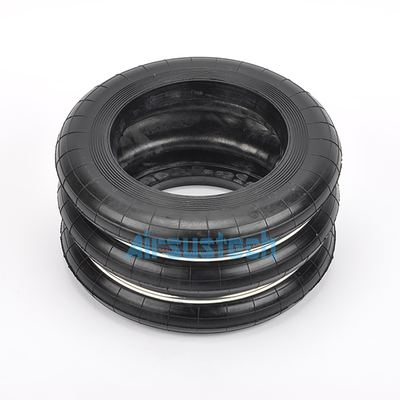

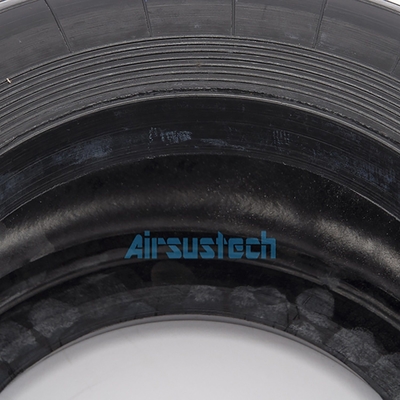

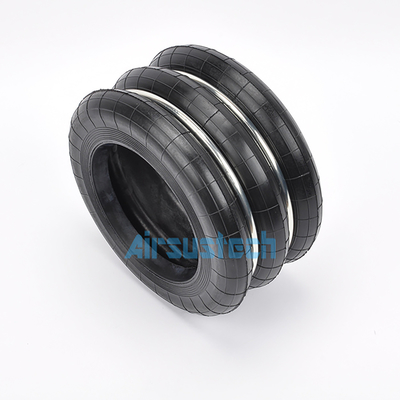

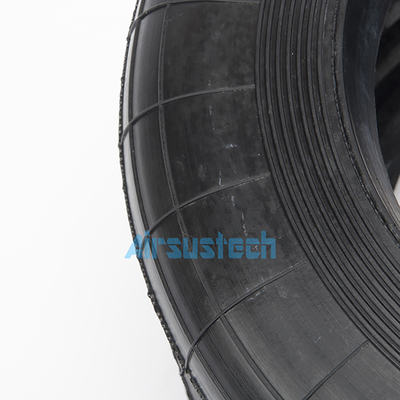

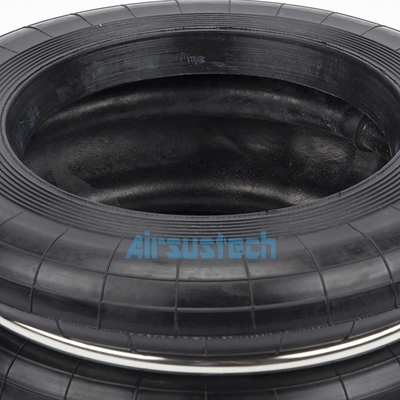

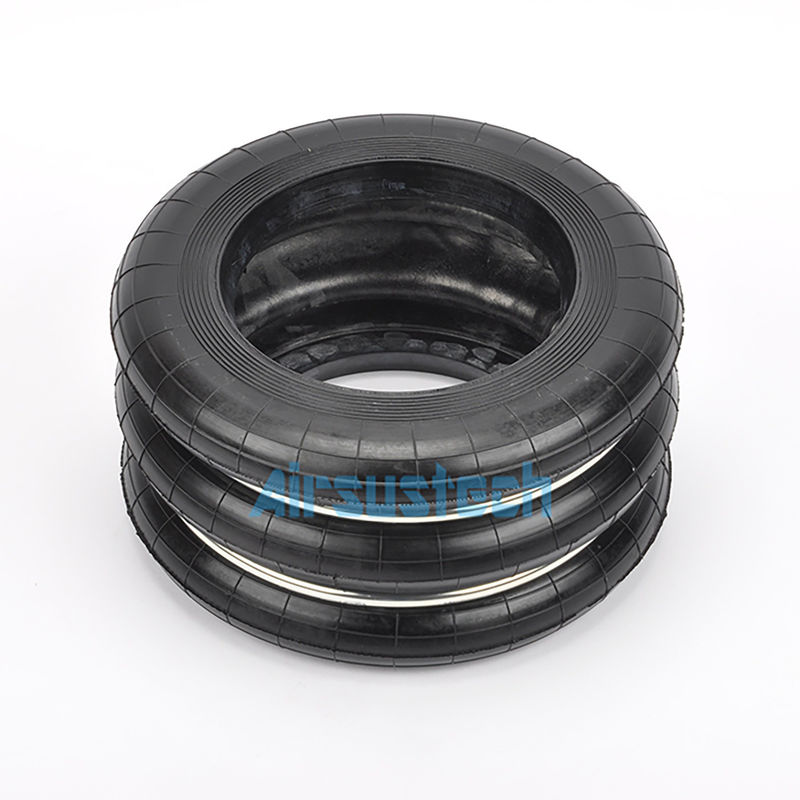

F-240-3 Pictures

Rubber Bellows Only Yokohama S-240-3R Triple Convoluted Air Actuator With Hoop 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Rubber Bellows Only Yokohama S-240-3R Triple Convoluted Air Actuator With Hoop 2

Factory Workshop

Rubber Bellows Only Yokohama S-240-3R Triple Convoluted Air Actuator With Hoop 3
