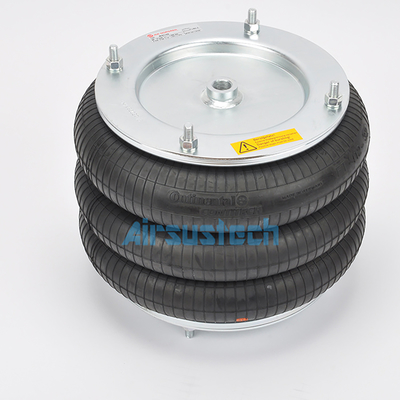

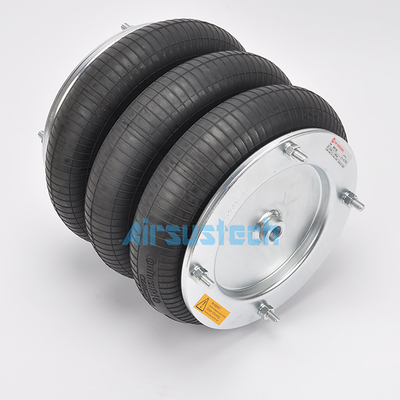

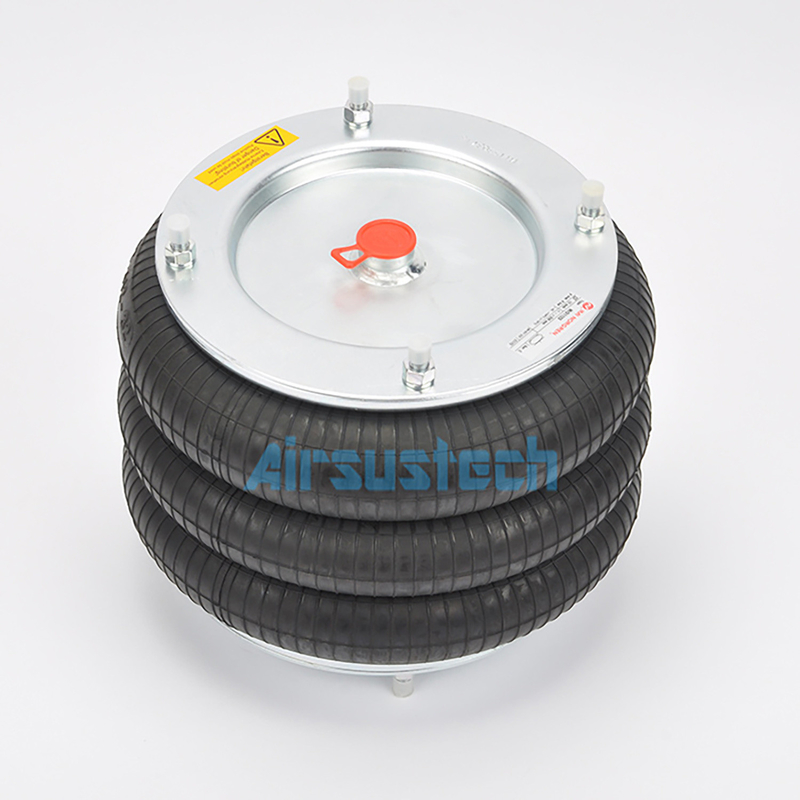

Triple Rubber Convoluted Air Spring M/31123 M31123 Norgren Air Suspsension

Product Details:

Place of Origin:	United Kingdom
Brand Name:	Norgren
Certification:	ISO/TS16949:2009
Model Number:	M/31123

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD159.9-199.9/PC
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	3-7 Working Days
Payment Terms:	L/C, T/T, Western Union Or Others
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Name:	Convoluted Air Spring	Fuction:	Reduce Shock
Brand:	Norgren	Key:	Norgren M/31123 M31123
Specification:	Rubber	Firestone:	W01-R58-4062
Contitech:	FT412-323	Warranty:	1 Year
Highlight:	Triple Rubber Convoluted Air Spring , M31123 Convoluted Air Spring

Triple Rubber Convoluted Air Spring M/31123 M31123 Norgren Air Suspsension

OEM Cross reference:

Norgen M/31123
Fire stone W01-R58-4062
Fire stone W01 R58 4062
Fire stone W01R5-4062
Contitech : FT412-323
Contitech : FT412 323
Goodyear : C2ECH
Dunlop pneuride: 12X3
Fire stone
W01R584062
EKER
42330003
Ive co
42107595
Intertruck-A
1700089105
Intertruck-A
1780115003
BlackTech
3C302200P03
BlackTech
3C30F03
BlackTech
3C302P03
Fabio
3DC3002C
Intertruck-S
8400108SX
Lohr
A06030606
Contitech
FT4123212M10
BlackTech
3C302200P01
Air Tech
115005
Dayco
DF12X3
Meritor
MLF7190 I
Templin
T600513
KRAFTIG
FT41232
Winkler
14109800305
Gigant
881204
Dunlop
SP1542
Peters Man
8422861
Goodyear
3B122452
Dunlop
SP2666NB
DAF
M002297
SMB
M002297
Gigant
M002297
Contitech
FT41232
Contitech
FT412321/2M10

Type	Order number
Rubber only	12×3
With removable top plate and G1/2 air inlet	M31123

Specifications and Detailed Technical Parameters: M/31123

Nut/blind nut

Top plate screw (nut) teeth: 4pcs X M10
Bottom cover plate screw (nut) teeth: 4pcs X M10

Air hole/air inlet/air fittings

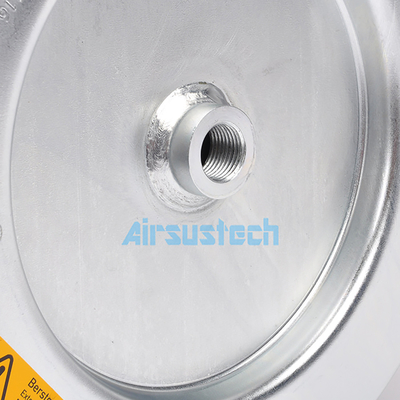

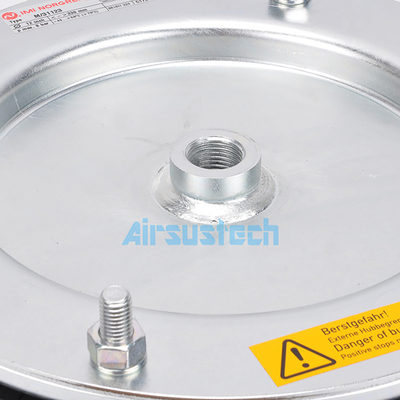

Air hole/air inlet: G1/2

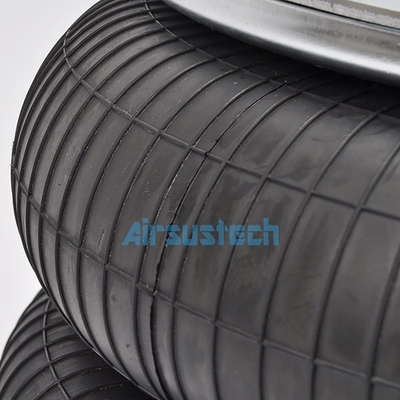

Rubber Bellows

Top plate diameter (width): 260mm
Diameter (width) of the bottom cover plate: 260mm
Stroke of Rubber Bellows:100mm-430mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two belt loop

Min. pressure: 0 bar
Return force to min.height: ≤250N
Overall weight with clamped plates: 6.9kg

Pneumatic application-static characteristic values
Force F[KN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H[mm]	350	9.8	13.2	16.7	20.5	24.3	28.4	17.2
	300	12.3	16.5	20.8	25.3	29.9	34.7	15.3
	250	14.4	19.3	24.2	29.4	34.5	39.9	12.9
	200	16.4	22.0	27.7	33.5	39.4	45.6	10.0
	150	18.8	25.1	31.4	37.8	44.2	50.7	7.2
