Durability Guomat Suspension Air Spring 3B53032 Replaces Firestone Flex313D

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B53032

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3B53032	Material:	Rubber And Steel
Quality:	100 % Tested	Fuction:	Reduce Shock
Key Word:	Fire Stone Flex 313D	Trademark:	GUOMAT
Origin:	Guangzhou, China	Warranty:	12 Months
Highlight:	Suspension Air Spring 3B53032 , High Durability Suspension Air Spring

Durability Guomat Suspension Air Spring 3B53032 Replaces Firestone Flex313D

3B53032 Product Standard

Nut/blind nut
Top plate screw (nut) teeth	4×3//8-16UNC
Bottom cover plate screw (nut) teeth	4×3//8-16UNC
Screw center distance	158.8mm
Air hole/air inlet/air fitting
Air hole/air inlet	1/4-18NPT
Rubber bellows
Top plate diameter (width)	289mm
Diameter (width) of the bottom cover plate	289mm
Rubber bellows max diameter	356 mm
The working stroke	282mm
Bumper block/bumper block
Bumper block	Yes
Belt loop/Belt loop
With belt loop	Two belt loop

Refer Number

Cross Reference No.

OEM No.

CONTITECH FT 530-32 -60717

CONTITECH FT 530 32 60717

CONTITECH FT 53032 60717

Hendrickson : S13157

Dayton : 3547808

Leland : Sc2031

Navistar : 554801C1

FIRE STONE FLEX 313D

Triangle : 6319

Triangle: 4336

GOODYEAR FLEX 578-93-3-350

GOODYEAR FLEX 578 93 3 350

GOODYEAR FLEX 578933350

EI Ride : 8030170

SAF Holland : 57007808

Truck stell : 63640

WEFORMA WBD 600-E3

WEFORMA WBD 600-E2

WEFORMA WBD 600-E1

WEFORMA WBD 600 E1

WEFORMA WBD 600 E2

WEFORMA WBD 600 E3

Brake & Wheel : M3533

Ridewell : 1003587808C

AIRKRAFT 115054

AIRKRAFT 115053

Peerless : 55000030

BOS-CH 822419082

Other OEM Number

AIRSUSTECH No.	Contitech No.	Fire stone No.	Goodyear No.
3B7996	FT330-29 520	W01-358-7996	3B12-335
3B7994	FT330-29 546	W01-358-7994	3B12-328/556-33-8-334
3B7995	FT330-29 547/64573	W01-358-7995	3B12-329/556-33-8-334
3B8008	FT330-29 431	W01-358-8008	3B12-300/556-33-8-334/578-93-3-100
3B8010	FT330-29 432	W01-358-8010	3B12-301/556-33-8-334/578-93-3-100
3B8027	FT330-29 466	W01-358-8027/38/W01-358-8029	3B12-310/556-33-8-334/578-93-3-100
3B8030	FT330-29 498	W01-358-8030/38	3B12-304/556-33-8-334/578-93-3-100
3B8006	FT 330-29 430	W01 358 8006/FLEX 38R/38D	3B12-301/578-93-3-100
3B6383-38	FT 530-30	/	/
3B6386	FT 530-30	/	/
3B7800	FT 530-32 333/FT 530-32 325	W01-358-7800/W01-358-7818	3B14-360/3B14-359/FLEX 578-93-3-350
3B7808	FT 530-32 336 / FT 530 32 329	W01-358-7808/FLEX 313D/	3B14-356/3B14-350/354/578-93-3-350

Six Reasons to Choose Us

1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound

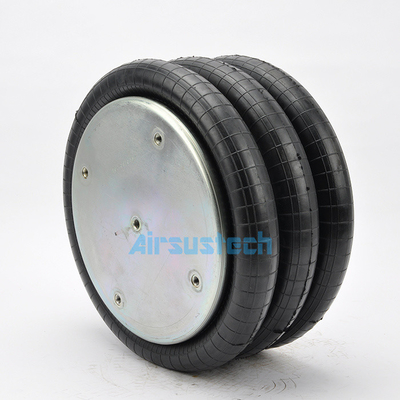

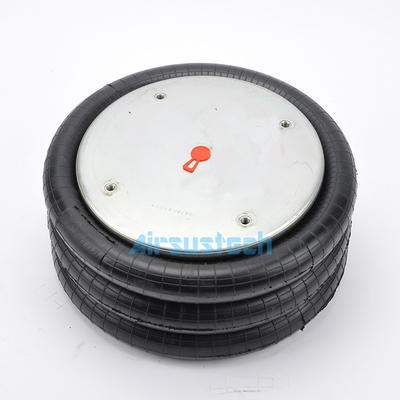

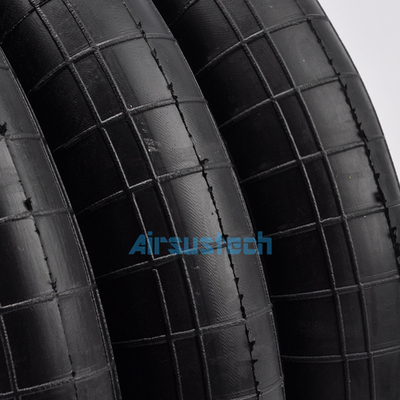

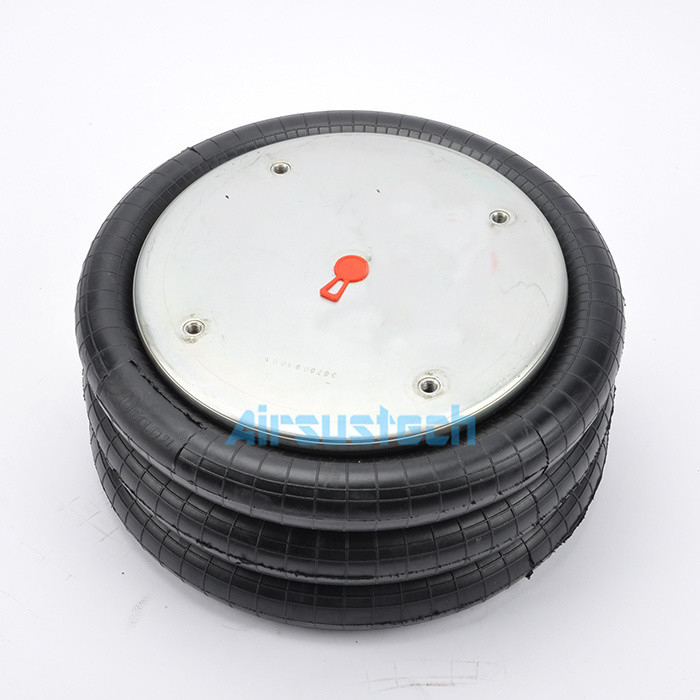

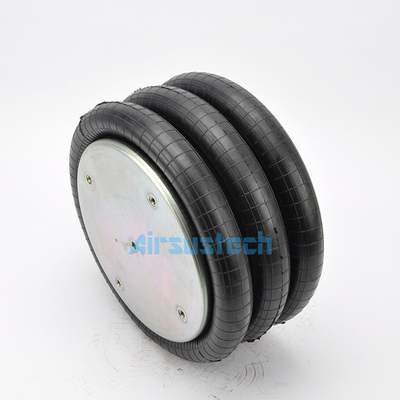

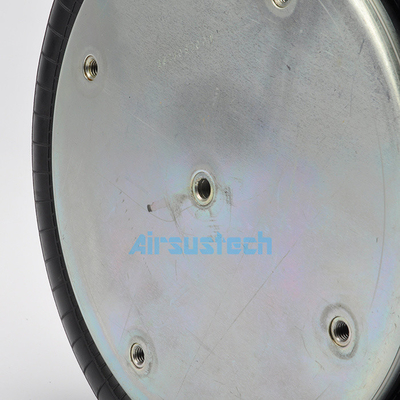

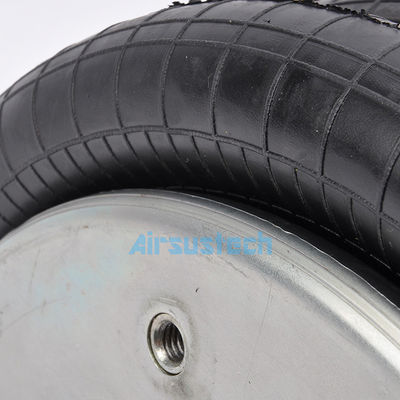

The Related Picture of 3B53032

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
