Industrial Air Suspension Firestone W01-358-7818 Convoluted Type Air Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B7818

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B7800	Quality:	100 % Tested
OEM Part NO.:	GRANNING 1014	Trademark:	GUOMAT
MIN. Height:	122 MM	Port Size:	1/4 NPTF
Bellows Type:	Triple Convoluted	Rubber Max. Diameter:	360 MM
Highlight:	Convoluted Type Air Suspension

Industrial Air Suspension Firestone W01-358-7818 Convoluted Type Air Rubber Bellow

GUOMAT Air Spring Features

GUOMAT air springs come in single, double, or triple bellow designs and serve various roles in different suspensions and applications. You'll find GUOMAT air springs in a range of trucks, trailers, and on industrial sites. These air springs stand out for their ability to execute linear or angular movements with a much lower profile than traditional air cylinders. They are incredibly adaptable and serve a variety of functions in machinery used for pressing, tensioning, rolling, conveying, lifting, and packaging. Additionally, as vibration dampers, they effectively minimize the detrimental impact of vibration.

Product Specifications

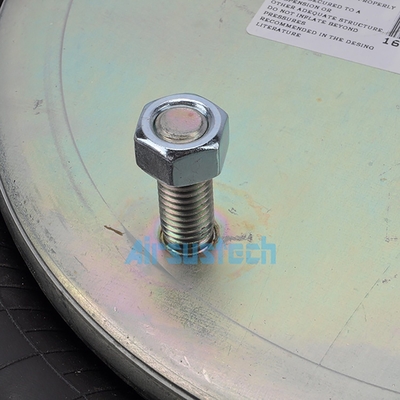

Nut/blind nut

Top plate screw (nut) teeth: 4×1/2-13UNC

Bottom cover plate screw (nut) teeth: 4×1/2-13UNC

Screw Center Distance: 158.8mm

Air hole/air inlet/air fittings

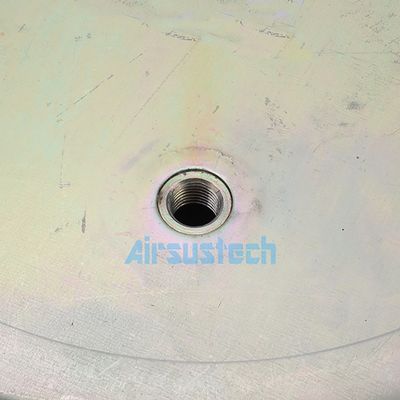

Air hole/air inlet: 1/4NPT

Distance from air hole to screw: middle

Rubber Bellows

Top plate diameter (width): 289mm

Diameter (width) of the bottom cover plate: 289mm

Rubber Bellows MAX Diameter: 356mm

Design Height: 9-13 inches / 229mm-330mm

Maximum Height: 460 mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With belt loop: Two belt loop

Refer Number

Firestone Bellows Number	313C
Goodyear Part Number	3B14-359
Goodyear Bellows Number	578-93-3-350
Triangle Part Number	4325
Triangle Bellows Number	6319
Contitech Number	64503, FT530-32325
Contitech Bellows Number	FT 530-32
Granning Number	1014, 1476
Hendrickson Number	S13041, S-13041
IHC Number	554803C1
Loadguard Number	SC2032
Neway Number	57007818, 57007839
Ridewell Number	1003587818C, 1003587839C, S2685C
Watson & Chalin	AS-0025, AS0025, AS0033, AS-0033
EZ Ride Number	8030180
UPC	767555005590
MPN	W01-358-7818

Product Applications

Tooling and machining system
Energy production
Tooling robotics and automation
Component assembly
Automotive assembly
Medical equipment
Conveyor systems
Packing
Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device

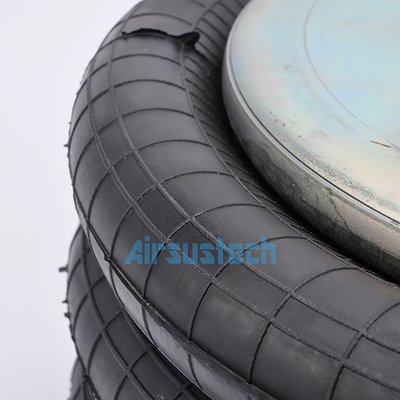

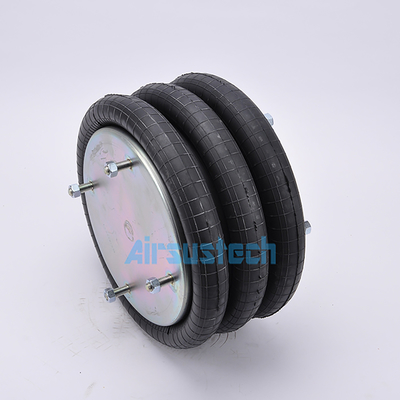

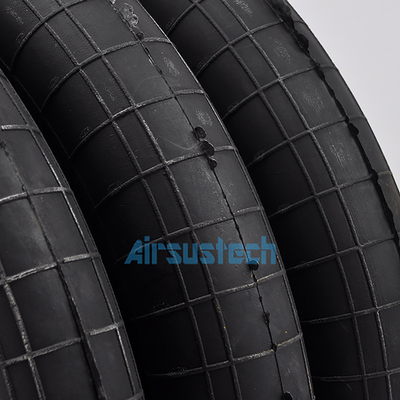

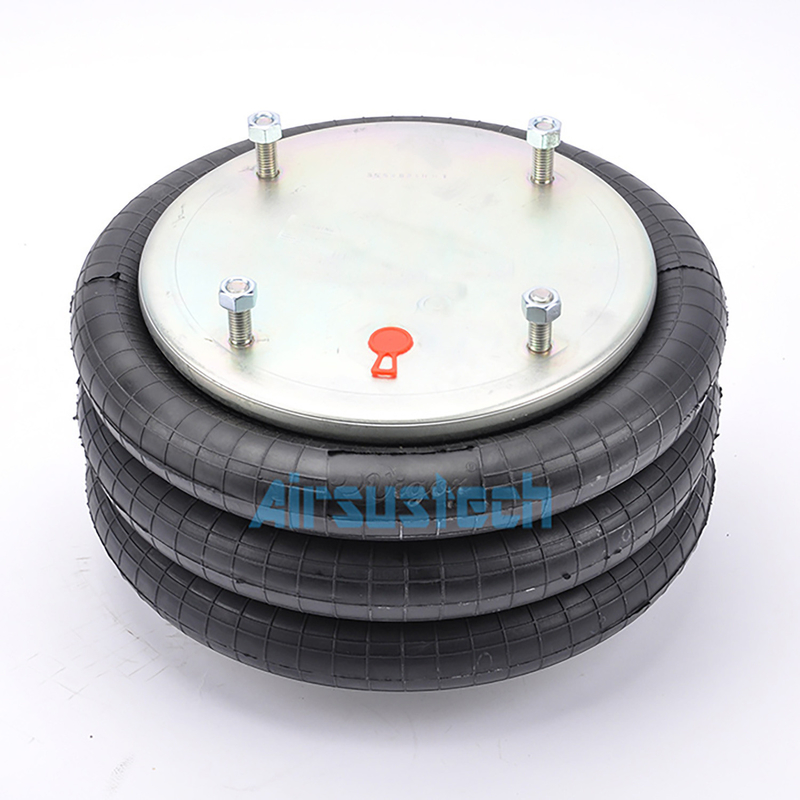

3B7800 Air Spring Images

Industrial Air Suspension Firestone W01-358-7818 Convoluted Type Air Rubber Bellow 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Industrial Air Suspension Firestone W01-358-7818 Convoluted Type Air Rubber Bellow 2

Factory Workshop

Industrial Air Suspension Firestone W01-358-7818 Convoluted Type Air Rubber Bellow 3
