Suspension Air Spring Guomat 3B5180 Triple Convoluted Air Actuator Shock Absorber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B5180

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	3B5180	Bellows Structure:	Triple Convoluted
Trademark:	GUOMAT	Cover Plate Dia.:	132 MM
Air Hole:	1/2NPT	Bumper:	NO
Screw Type:	3/8-16UNC \| Customized Request	Sample:	Available
Highlight:	3B5180 Suspension Air Spring , Triple Convoluted Suspension Air Spring , Guomat Suspension Air Spring

Suspension Air Spring Guomat 3B5180 Triple Convoluted Air Actuator Shock Absorber

Product Introduction

The GUOMAT Air springs are highly durable, precisely engineered and cost-effective for use in a wide variety of actuation and vibration isolation applications. With time-tested designs, fabric-reinforced Neoprene or Natural Rubber flex member construction and corrosion-protected end retainers, air springs provide superior quality and performance. We offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convoluted Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the End Retainer Style required for your installation.

Product Details

Nut/blind nut

Top plate screw (nut) teeth: 2×3/8-16UNC

The distance between the screw on the top plate: 70mm

Screw (nut) teeth of the bottom cover plate: 3/8-16UNC

Air hole/air inlet/air fittings

Air hole/air inlet: 1/2NPT

The distance between the screw and the air inlet: 33mm

Cover plate

The Diameter Of The Top Plate: 132 mm

The Diameter Of The Bottom Cover: 132mm

Bumper block/bumper block

Without bumper block

Belt loop/Belt loop

With two pieces of belt loop

We Can Supply Other Triple Convoluted Air Suspensions

3B12-304	3B12-305	FT 330-29 CI	SP2910
3B14-351	3B14-353	FT 430-32 CI	SP2895
3B14-354	3B15-375	FT 530-32 CI	SP2923
3B15-376	3B15-377	FT 530-35 CI	SP2861
3B15-378		FT 960-34 CI	SP2863
		FT 1330-35 CI	SP1539
			SP1542
			SP1558
			SP2141

Product Applications

Vibratory conveyors
Electronic equipment
Compressors
Conveyor loading points
Textile looms
Rotary shaft actuators
Conveyor or transfer systems
Vertical lift force for platforms and rotating tables
Injection or ejection of parts in manufacturing equipment
Scissor lifts
Clutch and brake systems
Amusement park rides
Palletizers, label applicators in
packaging equipment
Bin-tilting devices
Presses

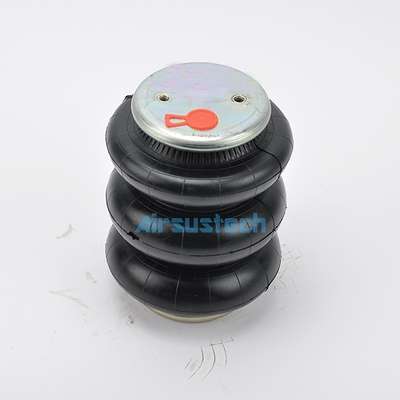

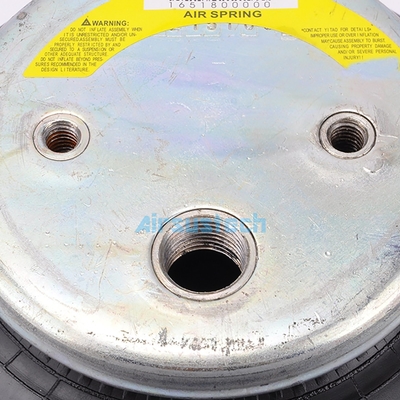

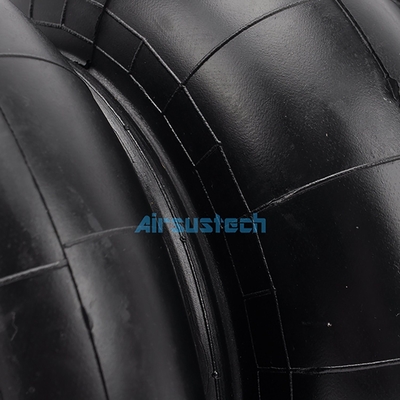

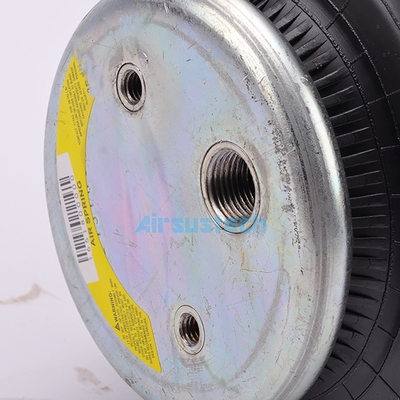

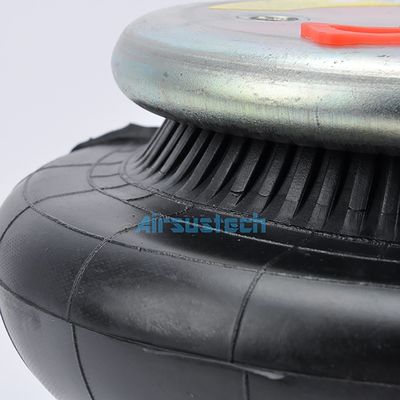

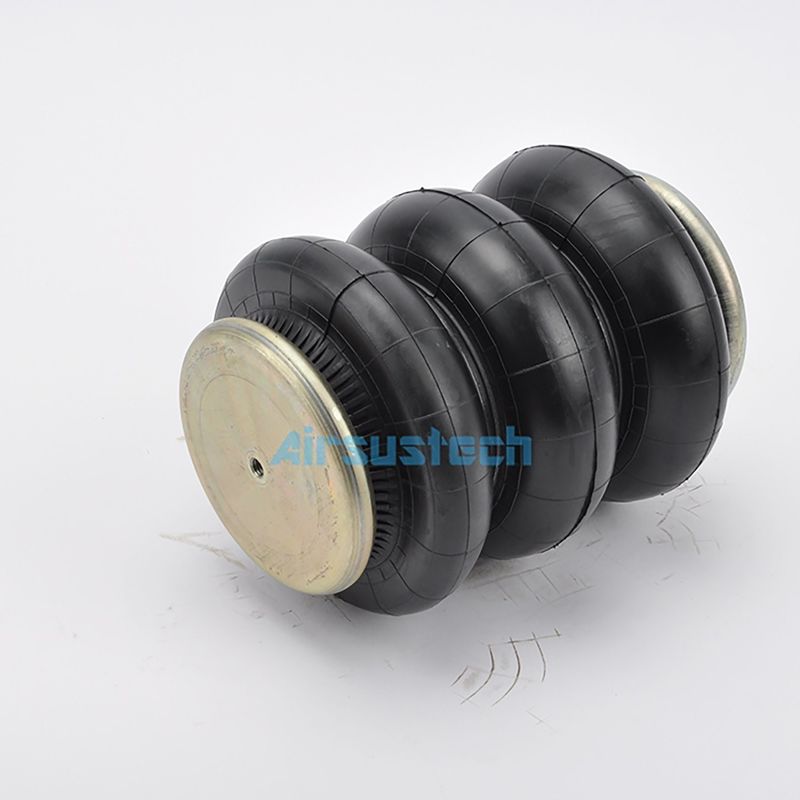

3B5180 Real Pictures

Suspension Air Spring Guomat 3B5180 Triple Convoluted Air Actuator Shock Absorber 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Suspension Air Spring Guomat 3B5180 Triple Convoluted Air Actuator Shock Absorber 2

Factory Workshop

Suspension Air Spring Guomat 3B5180 Triple Convoluted Air Actuator Shock Absorber 3
