Contitech FT 530-35 CI G1/4 Air Hole Triple Bellow Air Spring Full Stroke 395MM

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B14-374

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3B14-374	Structure:	Triple Convoluted
Damping Force Direction:	Bidirectional	Quality:	100 % Tested
Fuction:	Reduce Shock	Trademark:	GUOMAT
After-sales Service:	12 Months	Type:	Gas-Filled
Highlight:	CI G1/4 Air Spring , Triple Bellow Air Spring , Full Stroke Air Spring

Contitech FT 530-35 CI G1/4 Air Hole Triple Bellow Air Spring Full Stroke 395MM

Product Introduction

The GUOMAT Industrial Air Springs feature a stroke length of 395 mm, providing ample travel and ensuring maximum comfort for your vehicle. With a maximum height of 510 mm, these bellows air bags are the perfect addition to your air suspension system, providing the necessary support and stability to keep your vehicle running smoothly.

Product Standards

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 158.8 mm
Bottom Plate Diameter: 287 mm
Bottom Plate Hole Quantity: 4
Bottom Plate Type: Steel

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 158.8 mm
Top Plate Diameter: 287 mm
Top Plate Hole Quantity: 4
Top Plate Type: Steel

Bellow Maximum Diameter: 405 mm
Expanded Height: 510 mm
Compressed Height: 115 mm
Spring Type: Triple Convoluted
Nut/Blind Nuts Type: 4×M8

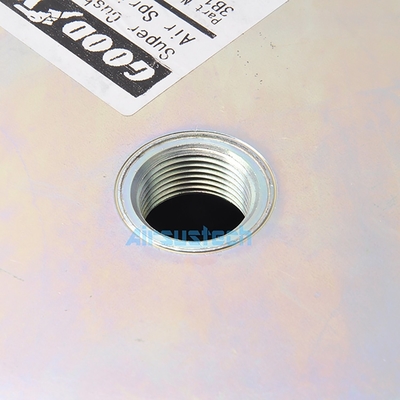

Air Inlet: G1/4

OEM Number

Firestone: W01-358-7842
Firestone: W01 358 7842
Firestone: W013587842
Contitech FT 530-35 C1 3/4 NPT OS
Contitech FT530-35 C1 3/4 NPT OS
Contitech FT530 35 C1 3/4 NPT OS
Contitech FT 530 35 C1 3/4 NPT OS
Contitech FT 530 35C1 3/4NPT OS

Other Types of Goodyear Air Spring

Goodyear Air Spring OE NO.	Goodyear Air Spring OE Bellows NO.	Goodyear order NO.	Bumper or not	Goodyear Air Spring OE NO.
1B8-564 Bellows Air Spring	1B8-564	20449825	N	1B8-564 Bellows Air Spring
ENIDINE YI-1B8-564	57991256400019	20095534	Y	ENIDINE YI-1B8-564
1B8-564 INTERNATIONAL 3547005C1	57991256400042	20141113	Y	1B8-564 INTERNATIONAL 3547005C1
1B8-565	1B8-565	20248442	N	1B8-565
C 1B8-560	57991256700090	20810735	Y	C 1B8-560
P 1B8-560	57991256800091	20810607	Y	P 1B8-560
P 1B8-550	57991256900091	20811403	Y	P 1B8-550
C 1B8-562	57991257000090	20811604	Y	C 1B8-562
C 1B8-564	57991257100090	20811605	Y	C 1B8-564
C 1B8-850	57991257200090	20811606	Y	C 1B8-850
C 1B8-550	57991262700090	20806174	Y	C 1B8-550
1B5-800	1B5-800	20469101	N	1B5-800
ENIDINE YI-1B5-800	57991280000019	20095537	Y	ENIDINE YI-1B5-800
GOODYEAR 1B5-801	57991280100000	20607917	Y	GOODYEAR 1B5-801
ENIDINE YI-1B5-801	57991280100019	20095538	Y	ENIDINE YI-1B5-801
1B5-810	1B5-810	20254245	N	1B5-810
ENIDINE YI-1B5-810	57991281000019	20095539	Y	ENIDINE YI-1B5-810
ENIDINE YI-1B5-820	57991282000019	20095540	Y	ENIDINE YI-1B5-820
ENIDINE YI-1B5-821	57991282100019	20224307	Y	ENIDINE YI-1B5-821
ENIDINE YI-1B6-831	57991283100019	20095541	Y	ENIDINE YI-1B6-831

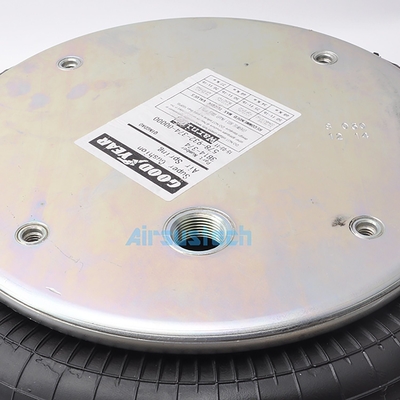

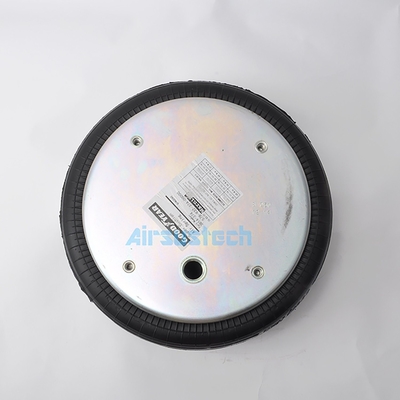

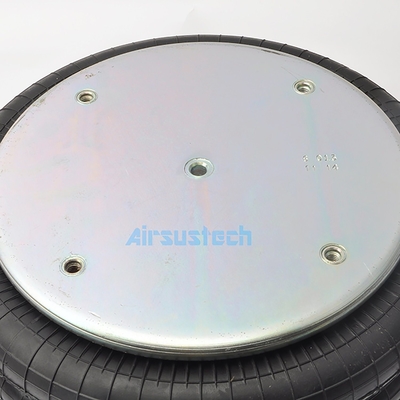

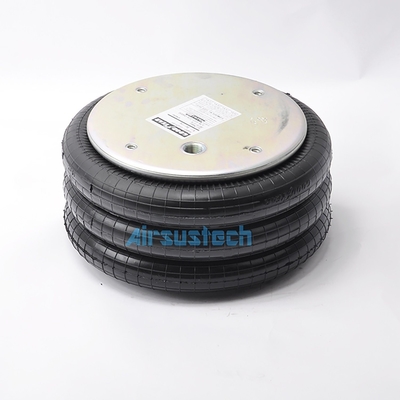

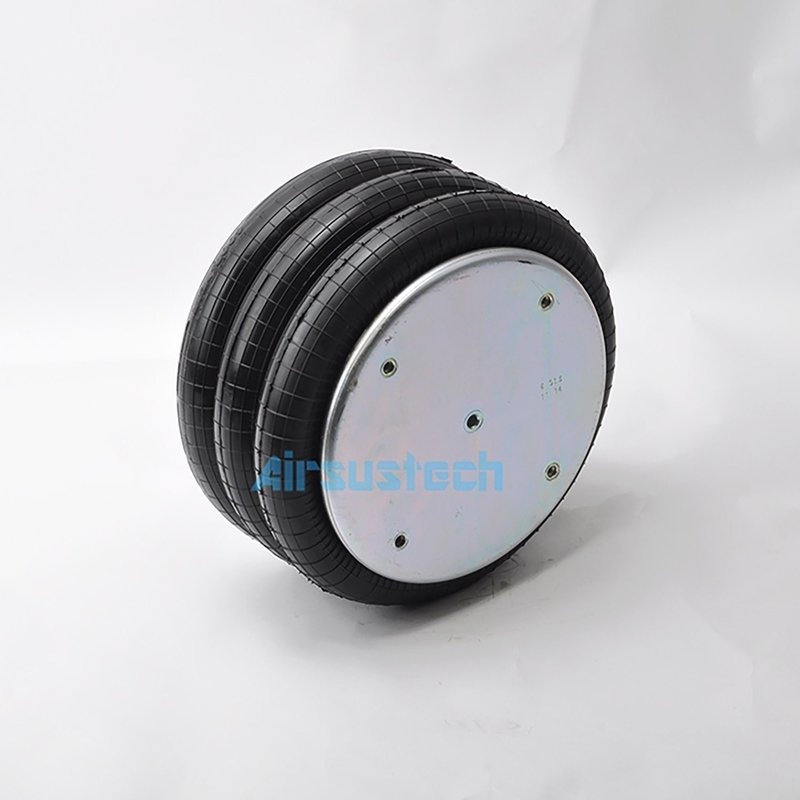

The Related Picture of 3B14-374

Contitech FT 530-35 CI G1/4 Air Hole Triple Bellow Air Spring Full Stroke 395MM 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Contitech FT 530-35 CI G1/4 Air Hole Triple Bellow Air Spring Full Stroke 395MM 2

Factory Workshop

Contitech FT 530-35 CI G1/4 Air Hole Triple Bellow Air Spring Full Stroke 395MM 3
