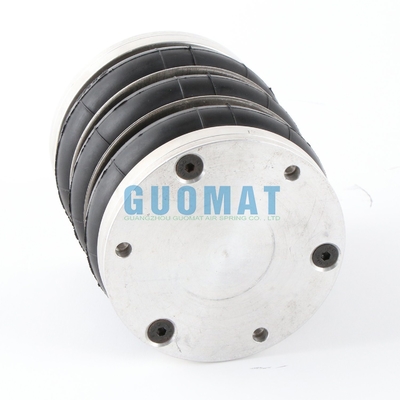

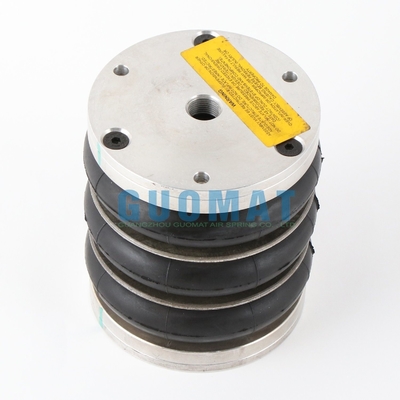

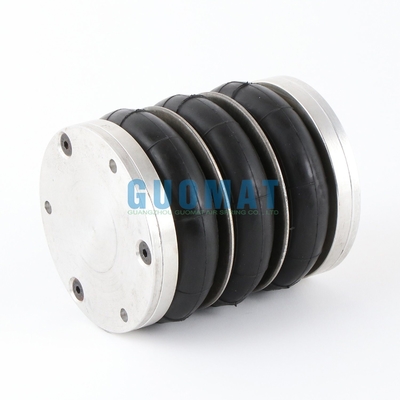

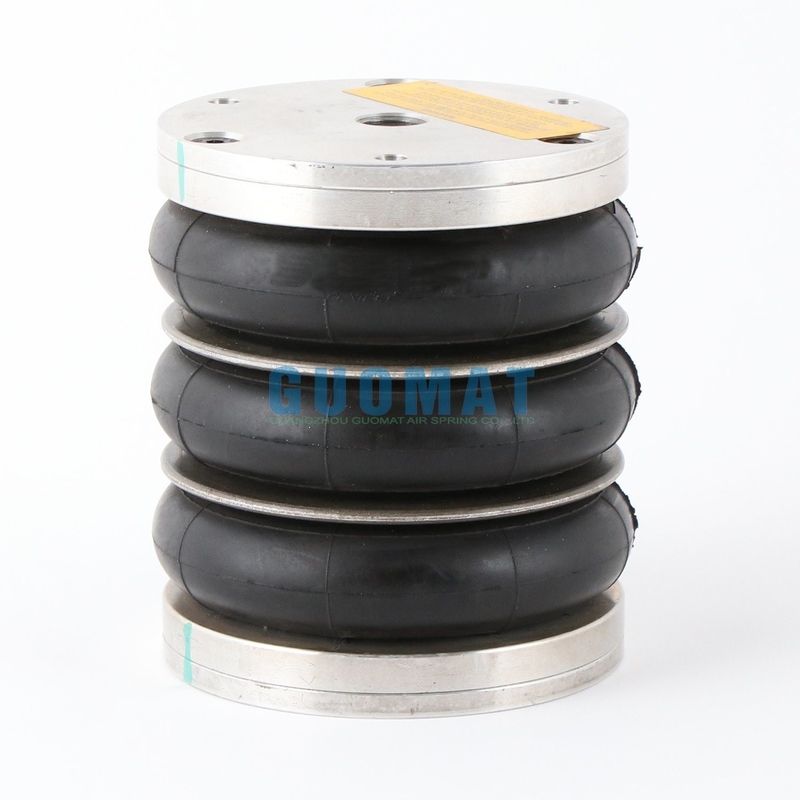

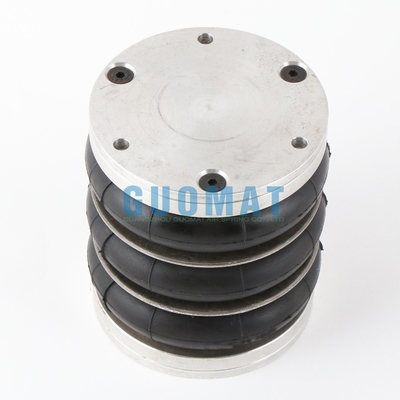

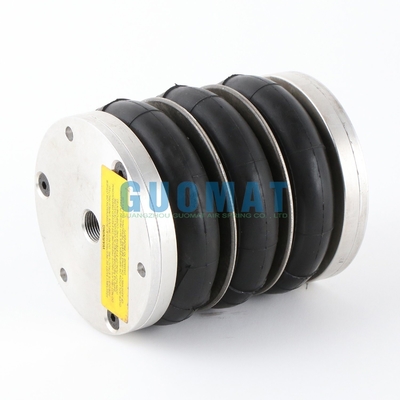

Dunlop 4 1/2''X3 Convoluted Rubber Bellows W01-R58-4035 Firestone Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	4 1/2x3

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product NO.:	4 1/2x3	Spring Material:	Rubber And Steel
Structure:	Triple Convoluted	OEM Number:	W01-R58-4035
Quality:	100% Tested	Brand Name:	GUOMAT
Air Hole:	3/8BSP	Total Stroke:	100 MM
Highlight:	W01-R58-4035 Firestone Air Spring , Convoluted Rubber Bellows Firestone Air Spring , Suspension Air Spring Triple Convoluted

Dunlop 4 1/2''X3 Convoluted Rubber Bellows W01-R58-4035 Firestone Air Spring

Product Specifications

Maximum Diameter: 125 mm
Space Required: 140 mm
Minimum Height: 100 mm
Maximum Height: 200 mm
Total Stroke: 100 mm
Static Height: 145 mm
Effective Area at Static Height: 65 cm²
Bellows Weight: 1.15 kg

The Cross Reference Number of 4 1/2x3

Fire-stone Air Bellow :W01-R58-4035 , W01R584035 , W01 R58 4035
Dunlop Air Bellow : SP2895 , SP 2895
Dimensions(Pouces) : 41/2 X2 / 41/2x2 / 41/2'' x2 / 4.5x2 / 4.5'' x2
FIRE-STONE Number : W01-R58-4035
DUNLOP Number : SP2895

Triple Convoluted Type Air Actuator

Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
	2 3/4''×3	SP2910	FT 22-6 DI		9109010
W01R584035	4 1/2''×3	SP2895	FT 44-15 DI	PM/31043	9109402

	6''×3(Al)	SP2923	FT 76-20 DS	PM/31063	9109007A
W01R584095	6''×3(Steel)	SP2861	FT 138-26 DS	M/31063	9109007
W01R584056	8''×3	SP2863	FT 138-26 DS	M/31083	9109017
W01R584059	10''×3	SP1539	FT 210-32 DS	M/31103	9109031
W01R584062	12''×3	SP1542	FT 412-32 DS	M/31123	9109051
W01R584065	14 1/2''×3	SP1558	FT 614-36 DS	M/31143	9109069
W01R584068	16''×3	SP2141	FT 816-40 DS	M/31163	9109177

GUOMAT Air Suspension Features

Unlock incredible savings compared to oem/dealer costs
Experience superior performance
Backed by a reliable 1-year warranty for peace of mind
Brand new and ready to elevate your driving experience
Guaranteed safe & secure checkout

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
