High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring

High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring

  • High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring
  • High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring
  • High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring
  • High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring
  • High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring
  • High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring
High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring
Product Details:
Place of Origin: Guangzhou,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B20F-2P03
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD69.9-79.9/PC
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-7 Working Days
Payment Terms: L/C, T/T, Western Union Or Others
Supply Ability: 1000PCS/Week
Contact Now
Detailed Product Description
Structure: Triple Convoluted Brand: Guomat/Neutral
Quality: 100 % Tested Fuction: Reduce Shock
Sample: Available After-sales Service: 12 Months
Position: Industrial Machine Type: Gas-Filled
Highlight:

Industrial Triple Convoluted Air Spring

,

3B20F-2P03 Triple Convoluted Air Spring

High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring

Product Description

Product Name:

Industrial Air Spring

Description:

Triple Convoluted Air Spring Bags

MOQ:

10 PCS

Warranty:

12 Months

Material:

Rubber+Steel

Package:

Carton/Cartons

Payment:

L/C ;T/T ;Western Union;Paypal

Port of shipment

Huangpu ,Guangzhou

Shippment:

By sea, By air, by DHL Fedex



Technical Data

Top Cover Plate Diameter: 160mm

Bottom Cover Plate Diameter: 160mm

Gas Hole: 1/2 NPT

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 223 mm

The Working Stroke : MAX 400 mm to MIN 200 mm

Top Cover Plate Screw (Nut) Tooth : 2X 3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2X 3/8-16UNC

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut : 44.5 mm

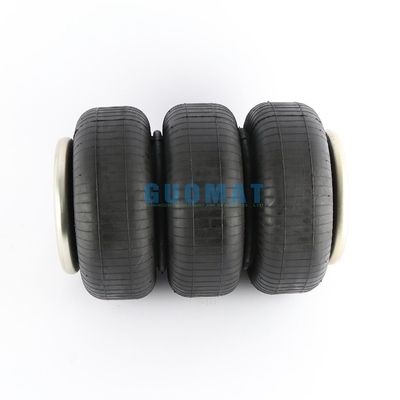

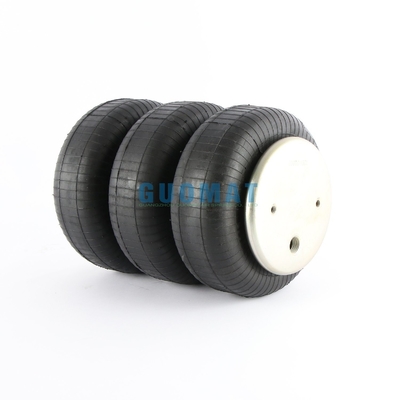

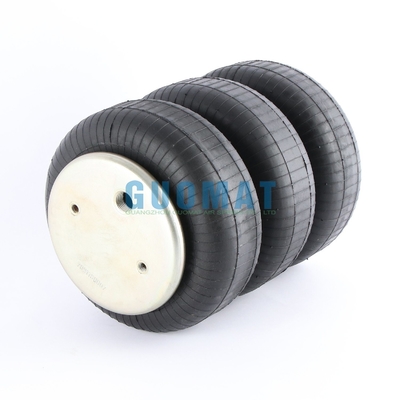

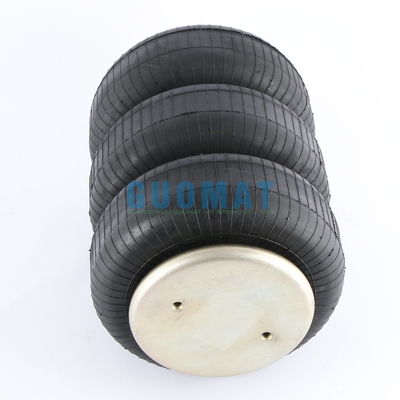

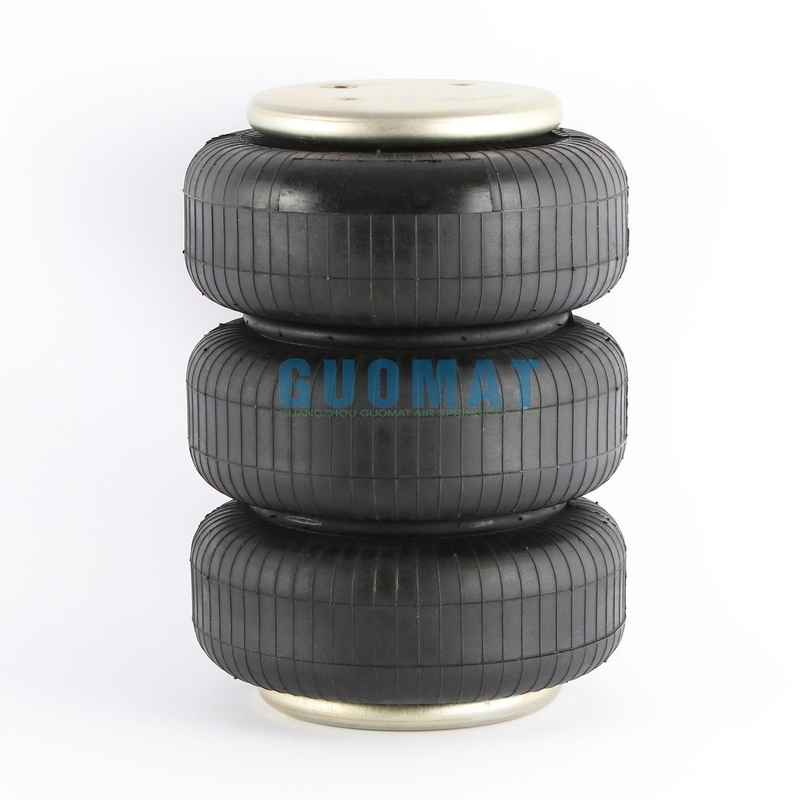

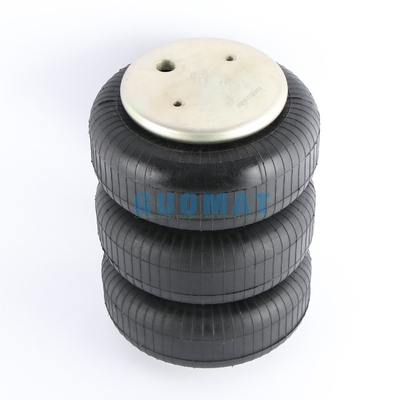

The pictures of air spring/air actuator/air ballon

High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring 0High Quality GUOMAT 3B20F-2P03 Industrial Triple Convoluted Air Spring 1
