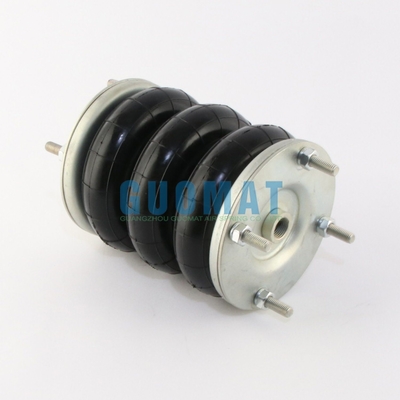

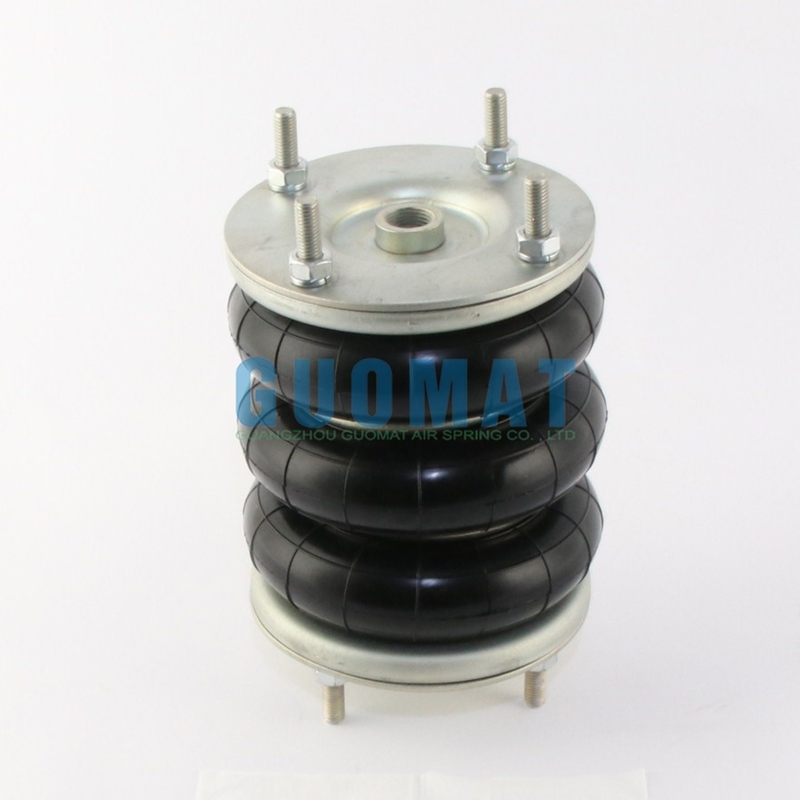

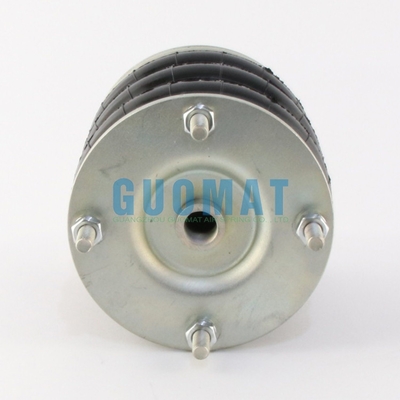

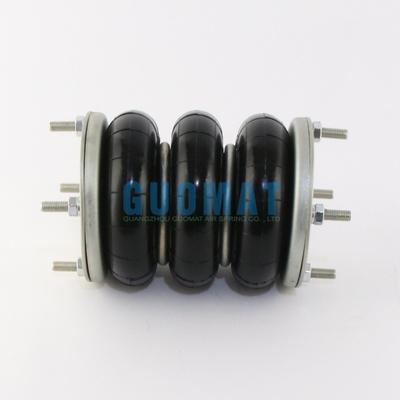

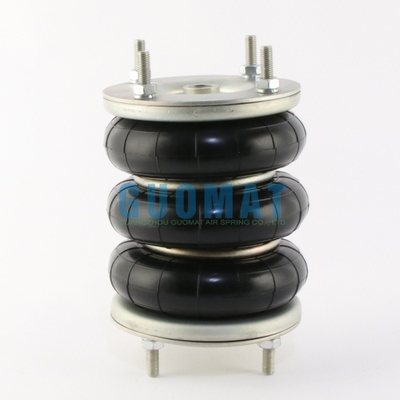

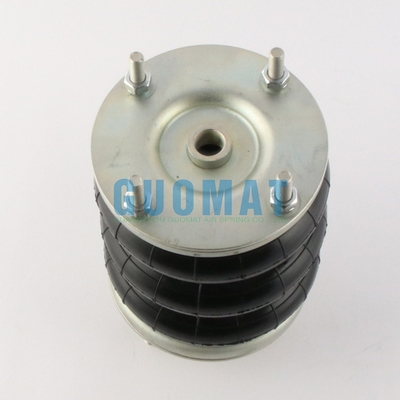

Dunlop 6''×3 Triple Convoluted Air Bellow W01-R58-4095 Firestone Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B6×3T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B6×3T	Spring Material:	Rubber And Steel
Bellows Type:	Triple Convoluted	Function:	Reduce Shock
Quality:	100% Tested	Condition:	Brand New
OEM NO.:	Norgren M/31063	Trademark:	GUOMAT
Highlight:	W01-R58-4095 Firestone Air Spring , Triple Convoluted Firestone Air Spring

Dunlop 6''×3 Triple Convoluted Air Bellow W01-R58-4095 Firestone Air Spring

Air Spring Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Product Standard

The Top Cover Plate Diameter	154mm
Air Inlet	1/2
The Top Cover Plate Stud	4XM10X1.5
The Distance Between the Top Cover Stud	127mm
The Bottom Cover Plate Diameter	154mm
The Bottom Cover Plate Stud	4XM10X1.5
The Distance Between the Bottom Cover Stud	127mm
Rubber Bellow Diameter	143mm
The Stroke	105mm-255mm

3B6×3T Refer NO.

Fire-stone Number: W01-R58-4095

Fire-stone Number: W01R584095

Fire-stone Number: W01 R58 4095

Fire-stone Number: WO1-R58-4095

Fire-stone Number: WO1R584095

Fire-stone Number: WO1 R58 4095

Dunlop Pneuride Number: 6''X3 (Steel)

Dunlop Pneuride Number: 6''x3 (Steel)

Dunlop Springride Number: SP2861

Dunlop Springride Number: SP 2861

Contitech Number: FT76-20DS

Contitech Number: FT 76-20DS

Contitech Number: FT 76-20 DS

Norgren Number: M/31063

Norgren Number: M 31063

Norgren Number: M31063

Parker Number: 9109007

Triple Convoluted Air Springs OEM NO.

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×3		2 3/4''×3	SP2910	FT 22-6 DI		9109010
4 1/2''×3	W01R584035	4 1/2''×3	SP2895	FT 44-15 DI	PM/31043	9109402
4 1/2''×3-E
3B6×3T(AI)		6''×3(Al)	SP2923	FT 76-20 DS	PM/31063	9109007A
3B6×3T(Steel)	W01R584095	6''×3(Steel)	SP2861	FT 138-26 DS	M/31063	9109007
3B8×3T	W01R584056	8''×3	SP2863	FT 138-26 DS	M/31083	9109017
3B10×3T	W01R584059	10''×3	SP1539	FT 210-32 DS	M/31103	9109031
3B12×3T	W01R584062	12''×3	SP1542	FT 412-32 DS	M/31123	9109051
3B14 1/2''×3T	W01R584065	14 1/2''×3	SP1558	FT 614-36 DS	M/31143	9109069
3B16×3T	W01R584068	16''×3	SP2141	FT 816-40 DS	M/31163	9109177
