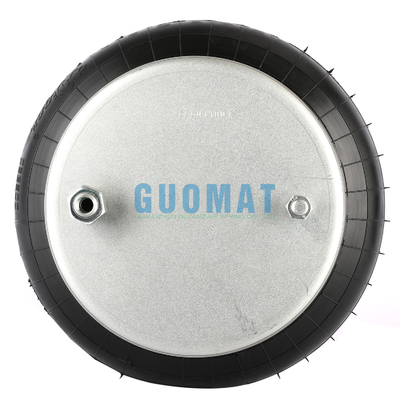

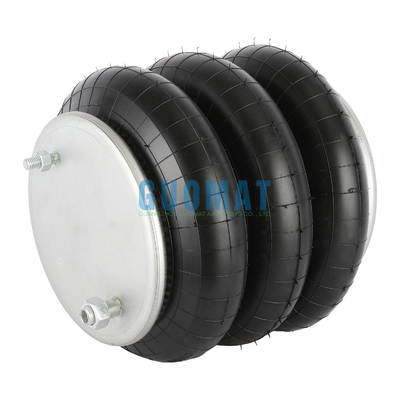

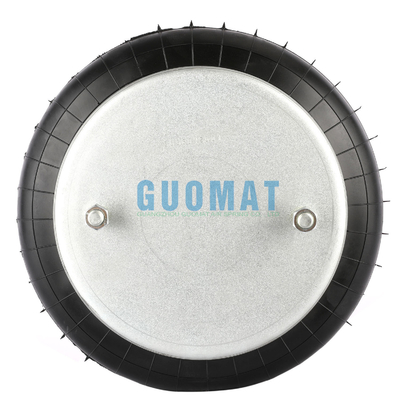

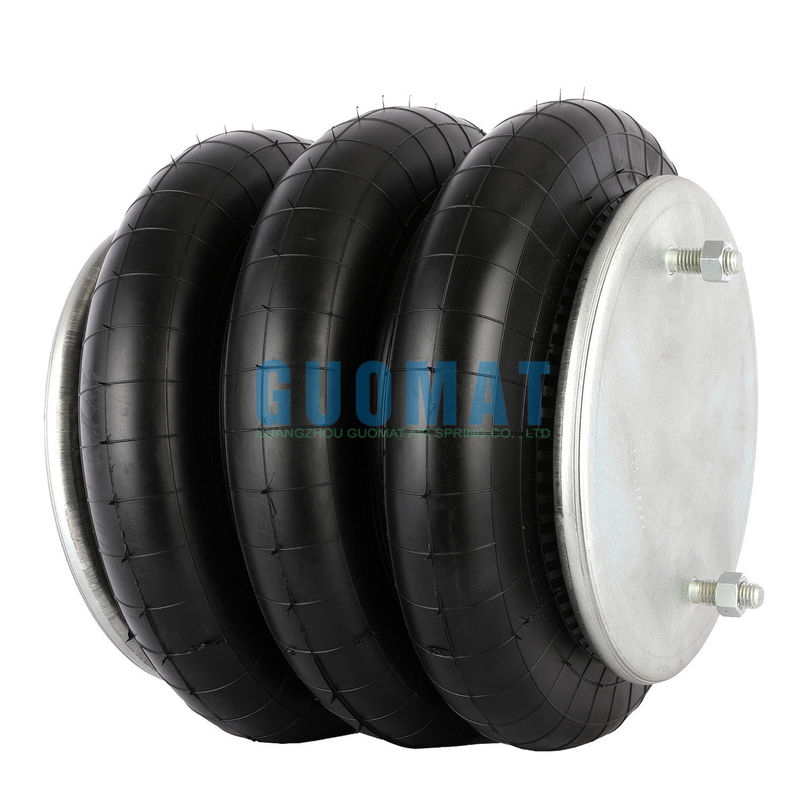

W01-358-7996 Firestone Suspension Air Spring Contitech AS7996 Durability Air Bag

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B7996

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3B7996	Material:	Rubber And Steel
Structure:	Triple Convoluted	Quality:	100% Tested
Condition:	Brand New	Cover Plate:	Aluminum Plate
Trademark:	GUOMAT	After-sales Service:	1 Year
Highlight:	Firestone Suspension Air Spring , W01-358-7996 Suspension Air Spring

W01-358-7996 Firestone Suspension Air Spring Contitech AS7996 Durability Air Bag

Product Features

An air spring is a precisely engineered rubber-fabric bellow containing a column of compressed air. The bellow itself does not provide force or support the load; this function is entirely fulfilled by the column of air within it. GUOMAT air suspensions are meticulously crafted flexible bellows equipped with specially designed metal end caps. Our standard double-layer air spring bellows are constructed with four layers in total. Many of our air shock suspensions also feature high-strength structures to withstand greater pressure. In such cases, the design includes either four layers of fabric-reinforced rubber or two layers of special high-strength cords, complemented by an inner lining and an outer cover.

Product Details

Model Number	2B7996
Product	Rubber Air Spring
Brand	GUOMAT
Material	Rubber and Steel
Warranty	1 Year
MOQ	1 Piece
Color	Black
Application	Industrial Machine

Cross References

Firestone Air Spring	W01-358-7996, W01 358 7996, W013587996 WO1-358-7996, WO1 358 7996, WO13587996
Contitech Air Spring	FT 330-29 520, FT330-29 520, FT33029 520
Goodyear Air Spring	3B12-335, 3B 12-335, 3B12335
Goodyear Bellow Number	578-93-3-100, 578 93 3 100, 578933100
Triangle Air Spring	6334 / 4520
Granning/Tuthill Air Spring	8221

Product Applications

Scissor lift
Hopper vibration and damping
Mechanical handling stop
Quick lock device
Reel tensioning
Machine isolation
Direct force
Impact absorbtion
Roller tensioning
Platform lift
Short stroke mechanical linkage
Hot foll stamping press
