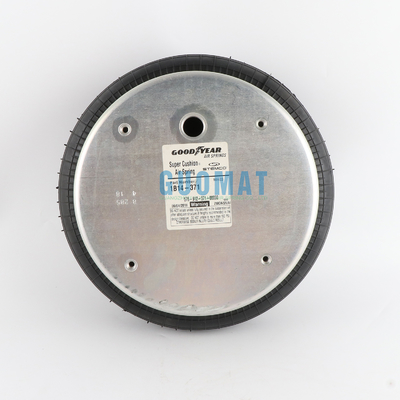

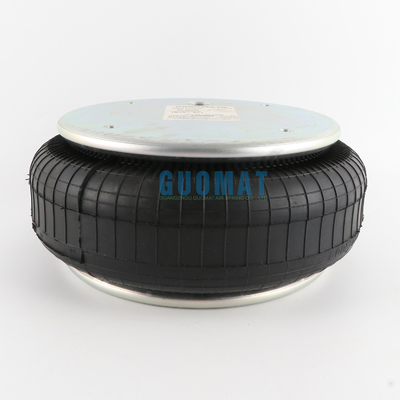

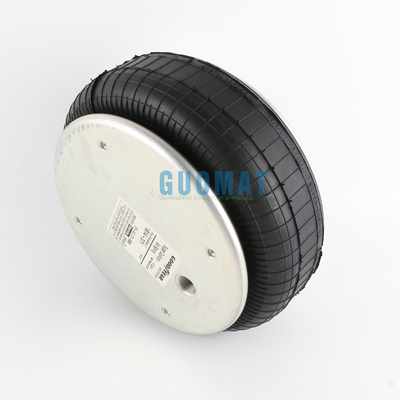

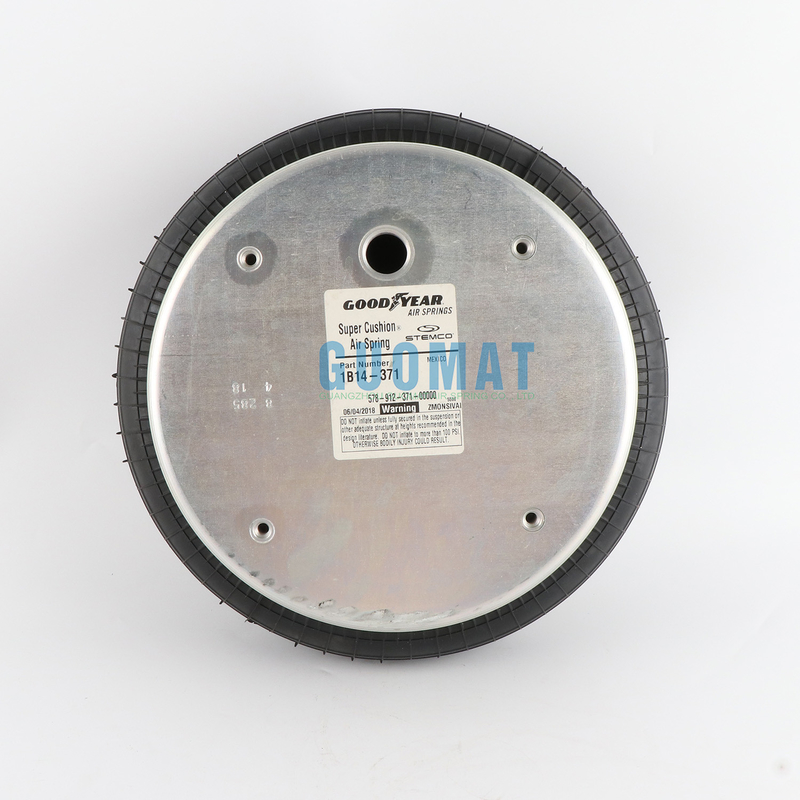

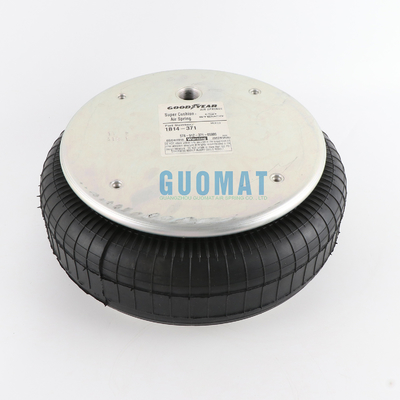

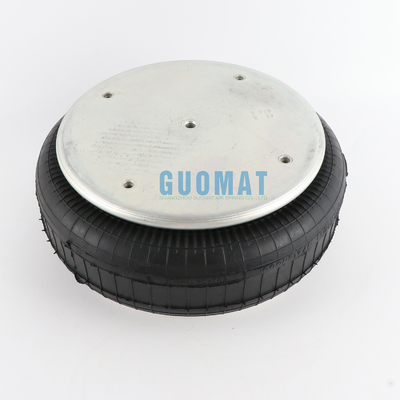

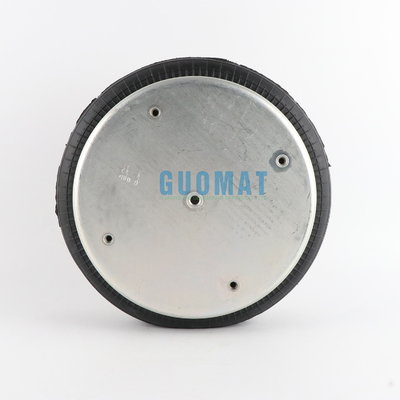

Reduce Shock 1B14-371 Suspension Air Spring 3/4 NPTF Air Hole Bellows 578912371

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B14-371

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Item NO.:	1B14-371	Net Weight:	5.5 KG
Maximum Diameter:	406 MM	Transport Package:	Cartons
Structure:	Single Convoluted	Brand:	GUOMAT
Cross Code:	FS 530-14	Production Process:	Burst Resistance
Highlight:	1B14-371 Suspension Air Spring , Suspension Air Spring 578912371

Reduce Shock 1B14-371 Suspension Air Spring 3/4 NPTF Air Hole Bellows 578912371

Product Details

Upper cover screw (nut) teeth: 4 X M8
Top plate screw center distance: 158.8 mm
Screw (nut) teeth of the bottom cover plate: 4 x M8
The screw center distance of the bottom cover plate: 158.8 mm
The air hole distance between the nuts is 79.4 mm
Air hole/air inlet: 3/4 N P.T.F.
Top plate diameter (width): 289mm
Diameter (width) of the bottom cover plate: 289 mm
Rubber bellows natural diameter 380 mm
Maximum diameter of rubber bellows: 406 mm
Natural height of rubber bellows: 120 mm
Working stroke: maximum 160 mm to minimum 81 mm

Product Technical Data

Pneumatic Applications - Static Characteristics Force F [lbf]
Pressure p [psi]		40	60	80	100	120	Vol. V [in.3]
Height H [in.]	6.5	3340	5060	6840	8660	10500	740
	6.0	3760	5690	7650	9660	11600	690
	5.5	4140	6250	8380	10600	12700	650
	5.0	4450	6680	8960	11300	13500	610
	4.5	4720	7070	9460	11900	14300	560
	4.0	4940	7380	9870	12400	14900	510
	3.5	5120	7610	10200	12800	15300	450
	3.0	5260	7810	10500	13100	15700	380
	2.5	5350	7970	10700	13400	16000	300

OEM Part Number

Goodyear part number:1B14-371
Goodyear part number:1B14 371
Goodyear part number:1B14371

Goodyear Bellows 578 912 371
Goodyear Bellows 578912371
Goodyear Bellows 578-91-2-371

Cross Contitech NO.:FS 530-14
Cross Contitech NO.:FS53014
Cross Contitech NO.:FS530-14

Other Kinds of Goodyear Air Springs

57891235000019	57891235000019	20094306	Y	ENIDINE YI-1B14-350	ENIDINE YI-1B14-350
57891235100000	57891235100000	20094308	Y	1B14-351	1B14-351
57891235100004	1B14-351	20094309	N	1B14-351 Bellows Air Spring	1B14-351 Bellows Air Spring
57891235100019	57891235100019	20094310	Y	ENIDINE YI-1B14-351	ENIDINE YI-1B14-351
57891235200000	57891235200000	20094312	Y	1B14-352	1B14-352
57891235200004	1B14-352	20116210	N	1B14-352	1B14-352
57891235200019	57891235200019	20094313	Y	ENIDINE YI-1B14-352	ENIDINE YI-1B14-352
57891235300000	57891235300000	20094314	Y	1B14-353	1B14-353
57891235300004	1B14-353	20116211	N	1B14-353	1B14-353
57891235300019	57891235300019	20094315	Y	ENIDINE YI-1B14-353	ENIDINE YI-1B14-353
57891235800000	57891235800000	20094316	Y	1B14-358	1B14-358
57891235800004	1B14-358	20035777	N	1B14-358 Bellows Air Spring	1B14-358 Bellows Air Spring
57891236200000	57891236200000	20094323	Y	1B14-362	1B14-362
57891236200004	57891236200004	20116212	Y	1B14-362	1B14-362
57891236200019	57891236200019	20094324	Y	ENIDINE YI-1B14-362	ENIDINE YI-1B14-362
57891236400000	57891236400000	20094325	Y	1B14-364 EXT	1B14-364 EXT
57891236400004	1B14-364	20094326	N	1B14-364	1B14-364
57891236400019	57891236400019	20094327	Y	ENIDINE YI-1B14-364	ENIDINE YI-1B14-364
57891236800094	57891236800094	20811431	Y	C 1B14-352	C 1B14-352
57891237100000	57891237100000	20094334	Y	1B14-371	1B14-371
57891237100019	57891237100019	20094335	Y	ENIDINE YI-1B14-371	ENIDINE YI-1B14-371
57891237200019	1B14-372	20106777	Y	1B14-372	1B14-372
57891237300000	57891237300000	20140234	Y	1B14-373	1B14-373
57891237300004	1B14-373	20140235	N	1B14-373 Bellows Air Spring	1B14-373 Bellows Air Spring
