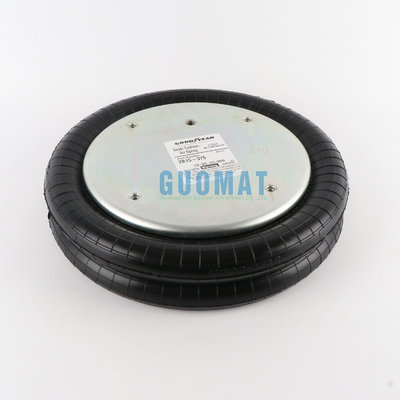

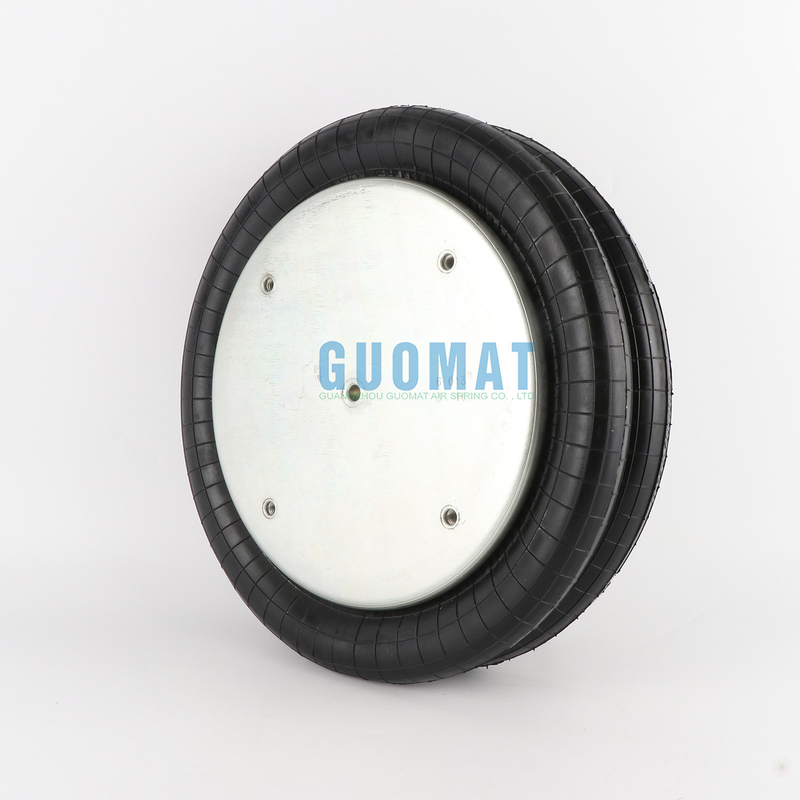

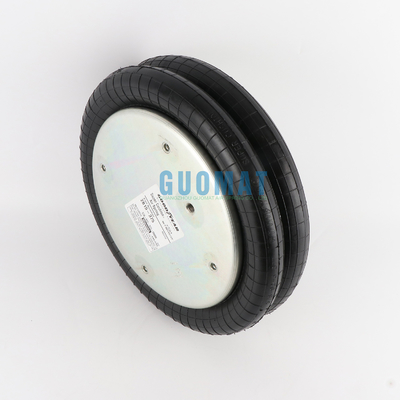

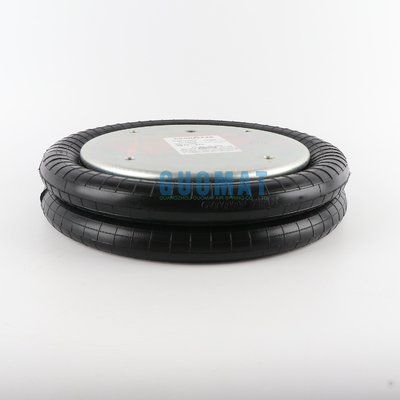

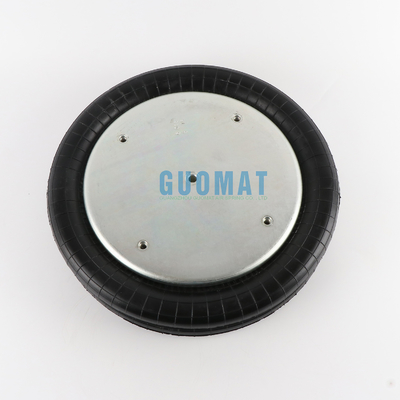

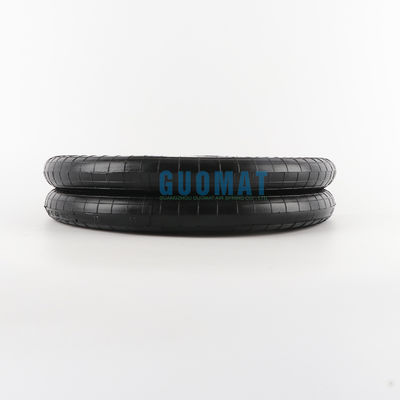

Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6800

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6800	Manufacturer:	GUOMAT
Material:	Natural Rubber	Sample:	Available
Working Stroke:	273MM	Type:	Double Convoluted
Space Required:	415MM	Ships From:	Any Port In China
Highlight:	Gas Filled Continental Bellow , Double Convoluted Gas Filled Continental Bellow , FD 530-30 Double Convoluted Air Actuator

Gas-Filled Continental Bellow Style FD 530-30 Double Convoluted Air Actuator

Cross OEM Number

Goodyear Parts NO.: 2B14-468
Goodyear Parts NO.: 2B14 468
Goodyear Parts NO.: 2B14468
Goodyear Parts NO.: 2B14-362
Goodyear Parts NO.: 2B14 362
Goodyear Parts NO.: 2B14362
Goodyear Parts NO.: 2B14-450
Goodyear Parts NO.: 2B14 450
Goodyear Parts NO.: 2B14450
Goodyear Parts NO.: 2B15-375
Goodyear Parts NO.: 2B15 375
Goodyear Parts NO.: 2B15375

Fire stone Air Spring Parts NO.: W01-358-6800

Fire stone Air Spring Parts NO.:: W01 358 6800

Fire stone Air Spring Parts NO.:: W013586800

Fire stone Air Spring: 21D-2

Fire stone Air Spring: 21-2

Fire stone Air Spring: 21 2

ContiTech Parts NO.: FD530-30 518 1/4 NPT

ContiTech Parts NO.: FD530-30518 1/4 NPT

Product Information

Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth	4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate	159 mm
Bottom Cover Plate Screw (Nut) Tooth	4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate	159 mm
Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet	1/4NPT
Center Distance Between Nut and Air inlet	79.5 mm
Cover Plate
Top Cover Plate Diameter (Width)	287 mm
Bottom Cover Plate Diameter (Width)	287 mm
Rubber Bellows
Rubber Bellows MAX Diameter	401 mm
Compressed Height	76.2 mm
Maximum Height	351 mm
Working Stroke	254mm

Product Technical Data

Vibration isolation - dynamic characteristics values

Pressure p [psi]	40	60	80	100	120
Force (Load) [lbs]	3740	5610	7480	9350	11220
Spring Rate [lbs/in]	987	1388	1811	2165	2628
Natural Frequency [Hz]	1.6	1.6	1.6	1.5	1.5

Pneumatic application - static characteristics values

Force F [lbs]

Pressure p	[psi]	20	40	60	80	100	120
Height H [in]	11	1660	3330	4990	6650	8320	9980
	9	2100	4210	6310	8410	10520	12620
	7	2440	4880	7320	9760	12200	14640
	5	2650	5310	7960	10620	13270	15920

The Must be Enough Clearance Around The Air Bellow

The full surface of the metal parts is to be used to bear the forces.
Air bellows must be equipped with lateral guides.
Deflate the air bellows fully before removing.
Ensure that the bellows is not constantly in contact with hydraulic oil, lubricants, solvents, metal cuttings and weldin sparks.
Should the air bellow be subjected to special media in an application, ask Precision Engineering for further information, specifying the medium, temperature and concentration.
