GUOMAT 2B15-377 Data

• Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 159 mm

• Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 NPTF OR 3/4 NPTF

Screw Center Distance Between Gas Hole and Nut : 79.5 mm

• Cover Plate

Top Cover Plate Diameter (Width): 287 mm /11.3 inches

Bottom Cover Plate Diameter (Width): 287 mm /11.3 inches

• Rubber Bellows

Rubber Bellows MAX Diameter: 424 mm

The Working Stroke : MIN 94 mm to MAX 325 mm

Maximum Height : 325 mm

Minimum Height (Compressed Height): 94 mm / 3.7 inches

Stroke Height : 262 mm

• Bumper block / Buffer block

Without or with Bumper Block

• Girdle Hoop / Girdle Ring

With Girdle Hoop :One Piece of Girdle Hoop

2B15-377 Goodyear Cross OEM

Goodyear Parts NO.:2B14-363
Goodyear Parts NO.:2B14 363
Goodyear Parts NO.:2B14363
Goodyear Parts NO.:2B14-451
Goodyear Parts NO.:2B14 451
Goodyear Parts NO.:2B14451
Goodyear Parts NO.:2B15-378
Goodyear Parts NO.:2B15 378
Goodyear Parts NO.:2B15378
Goodyear Parts NO.:2B15-375
Goodyear Parts NO.:2B15 375
Goodyear Parts NO.:2B15375

ContiTech Parts NO:FD 530-30 CI 3/4 NPT

ContiTech Parts NO::FD530-30 CI 3/4 NPT
Enidine YI-2B15-377 YM-2B15-377

Firestone Air Spring Parts NO.: W01-358-9529

Firestone Air Spring Parts NO.:: W01 358 9529

Firestone Air Spring Parts NO.:: W013589529

Enidine Kinds of Air Springs Technical Data Sheets

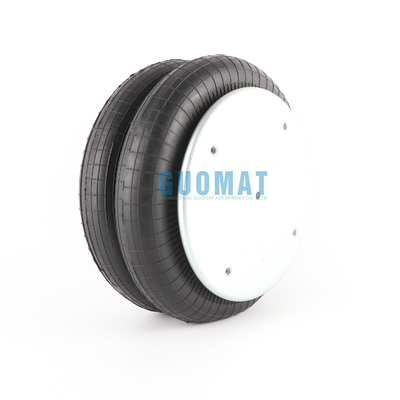

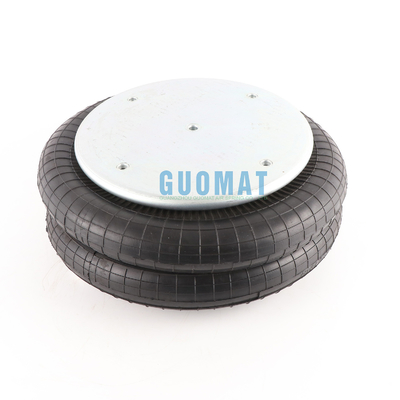

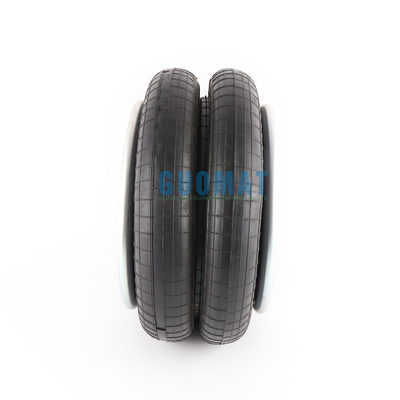

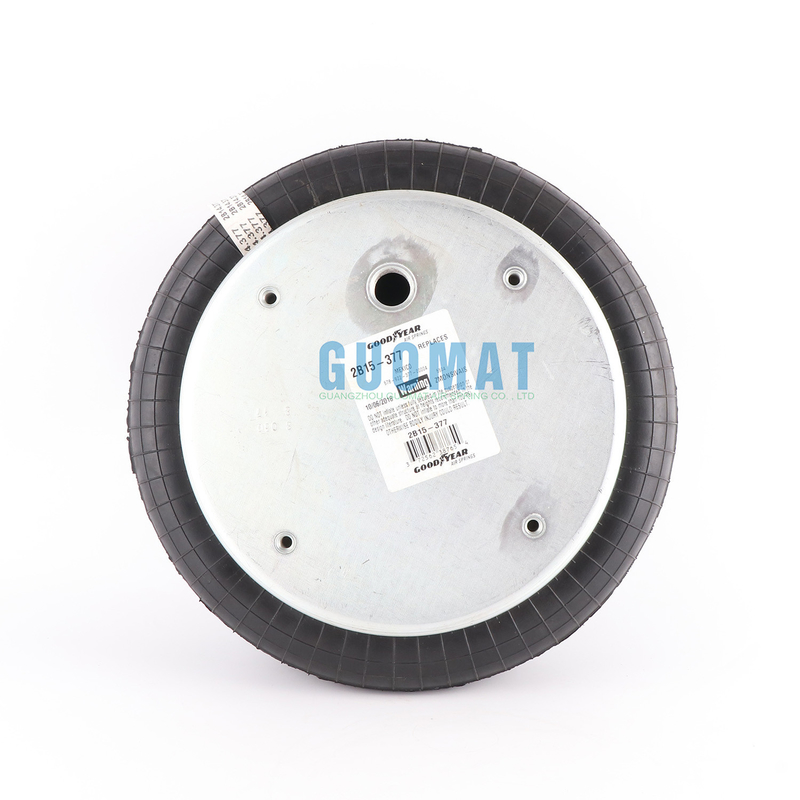

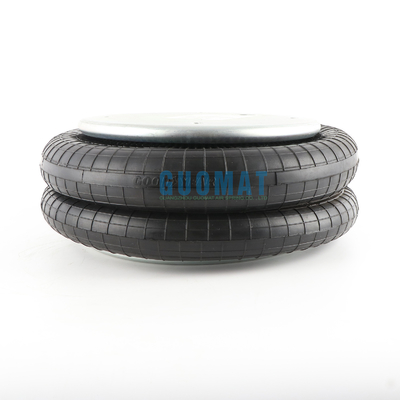

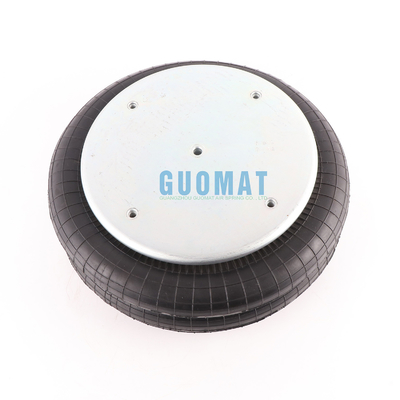

The Real Photos
