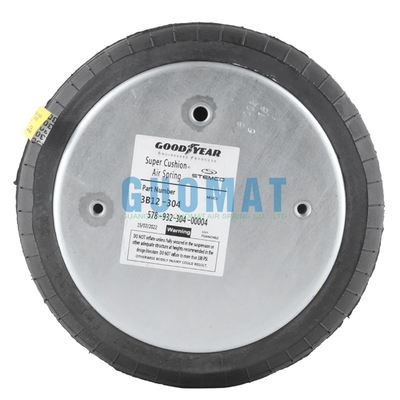

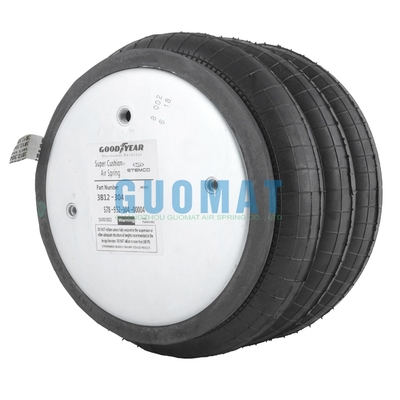

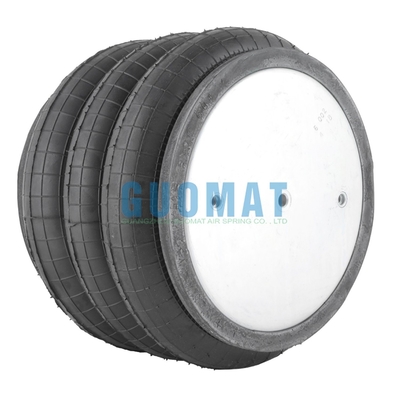

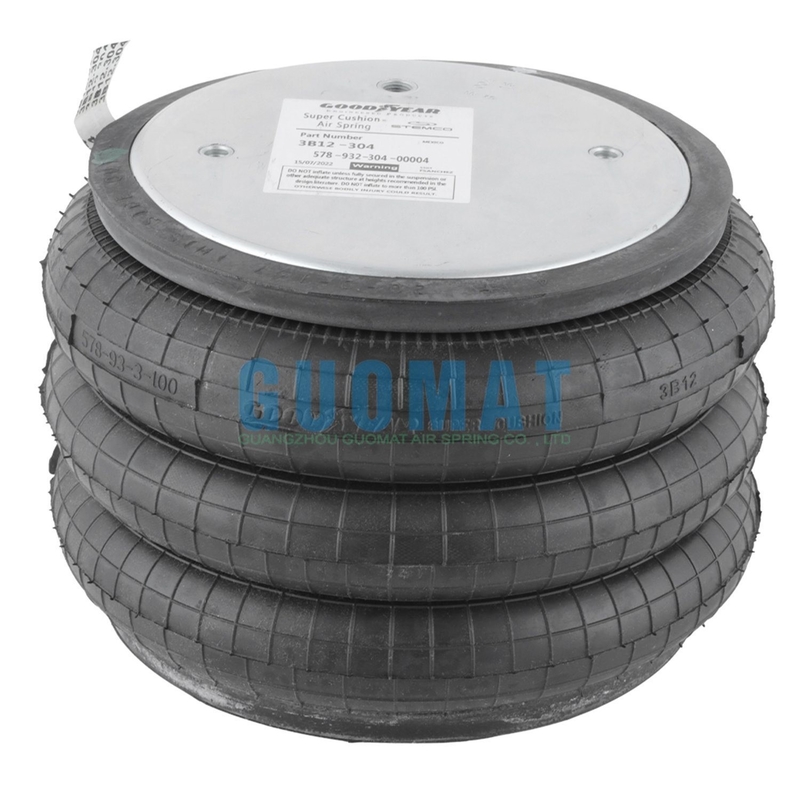

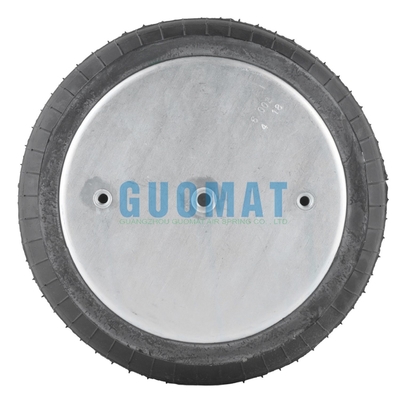

Contitech Suspension Air Spring FT 330-29 Goodyear 3B12-304 Effective Shock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B12-304

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3B12-304	Structure:	Triple Convoluted
Function:	Reduce Shock	Quality:	100% Tested
OEM:	FT 330-29	Trademark:	GUOMAT
Total Stroke:	320MM	Air Hole:	G1/4
Highlight:	FT 330-29 Suspension Air Spring , Contitech Suspension Air Spring , Effective Shock Suspension Air Spring

Contitech Suspension Air Spring FT 330-29 Goodyear 3B12-304 Effective Shock

Product Specification

Body Dia.[Max]: 325 mm
Compressed Height: 110 mm
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 320 mm
Pressure [Max]: 0-8 bar
Height [Max]: 110 mm
Height [Min]: 430 mm
Air Inlet: G1/4
Nut/Blind Nuts: M8
Center to Center Distance: 157.5 mm

Cross References

Goodyear: 3B12-304
Bellow Type: Triple
Automann Bellow: SP3B22R
Fire-stone Bellow: 38D was 38
Goodyear Bellow: 578-93-3-100
Contitech Bellow: FT 330-29
Triangle Bellow: 6334

We Can Offer Other Types Air Springs

Single Convoluted	Double Convoluted	Triple Convoluted
FS 40-6 CI	FD 40-10 CI	FT 330-29 CI
FS 50-5 CI	FD 70-13 CI	FT 430-32 CI
FS 70-7 CI	FD 110-15 CI	FT 530-32 CI
FS 100-10 CI	FD 120-17 CI	FT 530-35 CI
FS 120-10 CI	FD 120-20 CI	FT 960-34 CI
FS 120-12 CI	FD 200-19 CI	FT 1330-35 CI
FS 200-10 CI	FD 200-22 CI
FS 310-12 CI	FD 200-25 CI
FS 330-11 CI	FD 330-22 CI
FS 330-14 CI	FD 330-30 CI
FS 530-11 CI	FD 530-22 CI
FS 530-14 CI	FD 530-35 CI
FS 960-12 CI	FD 960-22 CI
FS 1330-11 CI	FD 1330-25 CI

The Benefits of Air Spring For Jacks Are Mainly Reflected In The Following Aspects

1. Routine maintenance
In terms of daily maintenance, due to the working process of the mechanical jack is closely connected with the rotation of the screw, mechanical jack need to periodically check the maintenance, albeit in when not in use, if you don't pay attention to the lubrication rust mechanical jack, it is easy to cause the screw rust, produce a lot of rust, stuck screw, even cause irreversible damage. And the air bag jack almost does not need any routine maintenance work, when not in use, just need to put the air bag in a cool and dry environment can be static.

2. Environment
Mechanical jack because of exposed thread, compact structure, the surface has more lubricating oil, in use, if the environment is more dusty sand, it is easy to stick to the screw of the mechanical jack, damage the equipment. And the air bag jack because of its good integrity, smooth and dry surface, can well avoid this problem.

3. Load-bearing capacity
The general bearing capacity of the air bag jack is about 3 tons or so, customized up to 15 tons or so, although not as good as the lifting capacity of the mechanical jack outstanding, but also enough to cope with most of the actual situation.

4. Initial height requirements
If mechanical jacks are used, a larger starting height is required, while airbag jacks do not require such a large starting height.

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
