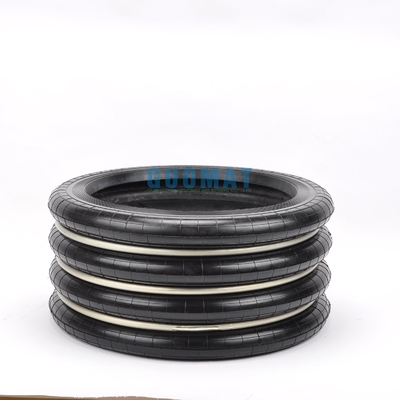

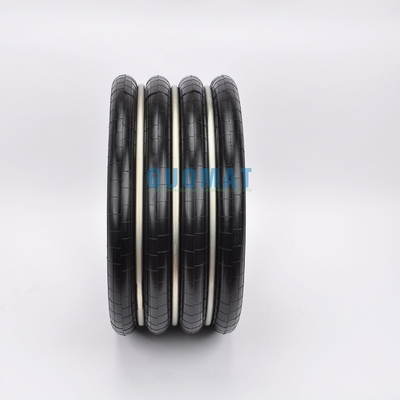

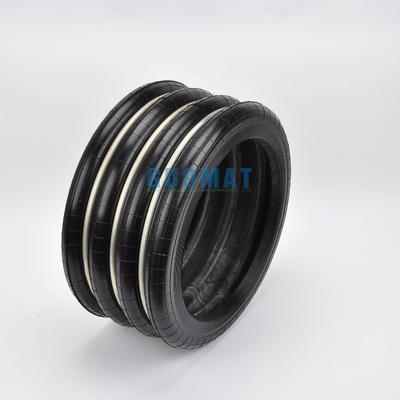

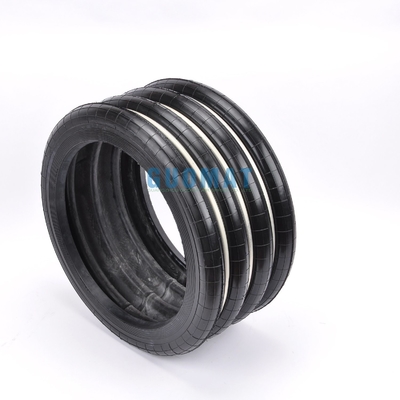

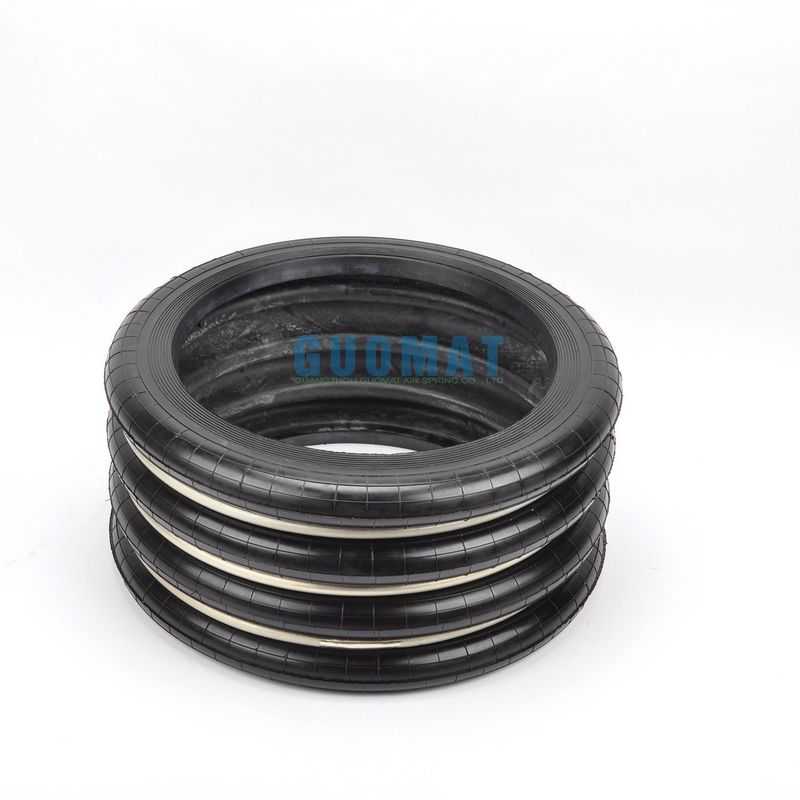

Rubber Bellow Guomat F-450-4 Cross Yokohama S-450-4 Electric Punch Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-450-4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	F-450-4	Structure:	Quintuple Convoluted
Product Size:	Standard	Function:	Reduce Shock
Trademark:	GUOMAT	Origin:	Guangzhou
Working Temperature:	-40℃+70℃	After-sales Service:	12 Months
Highlight:	Yokohama S-450-4 Electric Punch Air Spring , Rubber Bellow Electric Punch Air Spring

Rubber Bellow Guomat F-450-4 Cross Yokohama S-450-4 Electric Punch Air Spring

Product Description

Punch air springs are widely used in stamping and forming of electronics, communications, computers, household appliances, furniture, transportation, (automobiles, motorcycles, bicycles) hardware parts, etc. They are widely used in manufacturing industries such as precision machinery, instruments, computers, cameras, automobiles, motorcycles, computers, equipment, and household appliances.

Technical Data Of F-450-4

GUOMAT Number	F-450-5	F-450-4	F-450-3	F-450-2	F-450-1
Reference Number	S-450-5	S-450-4	S-450-3	S-450-2	S-450-1
Design Height (mm)	276	218	160	102	72
Max Height (mm)	456	363	270	172	117
Min Height (mm)	156	123	90	57	40
Common Maximum Travel (mm)	±113	±90	±68	±45	±30
Compression Max Outside Diameter (mm)	510	510	510	510	510
Effective Area (cm²)	1590	1590	1590	1590	1590
Volume(L)	43.6	33.9	24.3	14.7	11.9
Load (KN)	80.0	80.0	80.0	80.0	80.0
Dynamic Spring Constant (n/mm)	588	755	1040	1687	2295
Natural Vibration Frequency (Hz)	1.4	1.6	1.8	2.3	2.7
Maximum Internal Pressure (MPa)	0.69	0.69	0.69	0.69	0.69
Internal Pressure Failure(MPa)	3.9-4.9	3.9-4.9	3.9-4.9	3.9-4.9	2.9-3.9

GUOMAT Also Provide Other Models

S-600-5	S-550-3	S-500-5	S-450-5	S-400-5	S-350-4	S-300-4	S-240-4
S-600-4	S-550-2	S-500-4	S-450-4	S-400-4	S-350-3	S-300-3	S-240-3
S-600-3		S-500-3	S-450-3	S-400-3	S-350-2	S-300-2	S-240-2
S-600-2		S-500-2	S-450-2	S-400-2	S-350-1	S-300-1	S-240-1
S-600-1			S-450-1
S-220-4	S-160-4	S-200-4	S-120-4	S-100-4	S-90-3	S-60-4	S-50-3
S-220-3	S-160-3	S-200-3	S-120-3	S-100-3		S-60-3	S-50-2
S-220-2	S-160-2	S-200-2	S-120-2	S-100-2		S-60-2
	S-160-1
