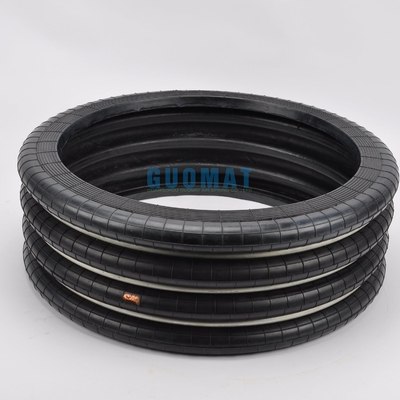

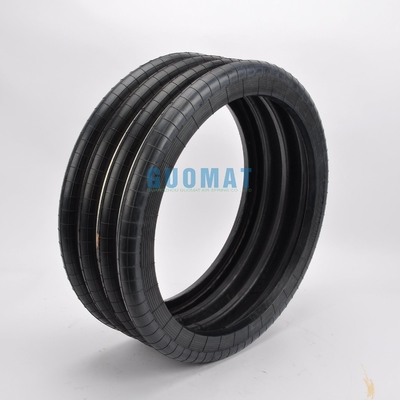

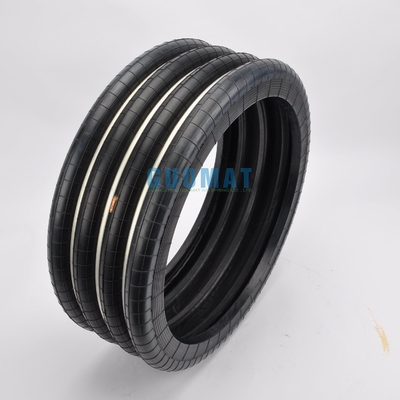

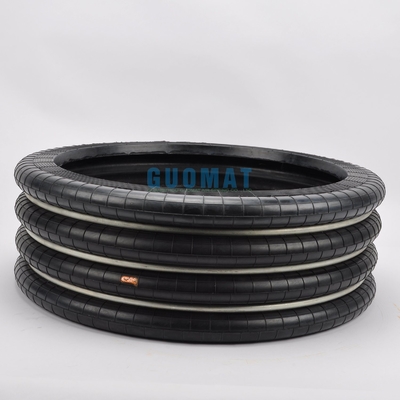

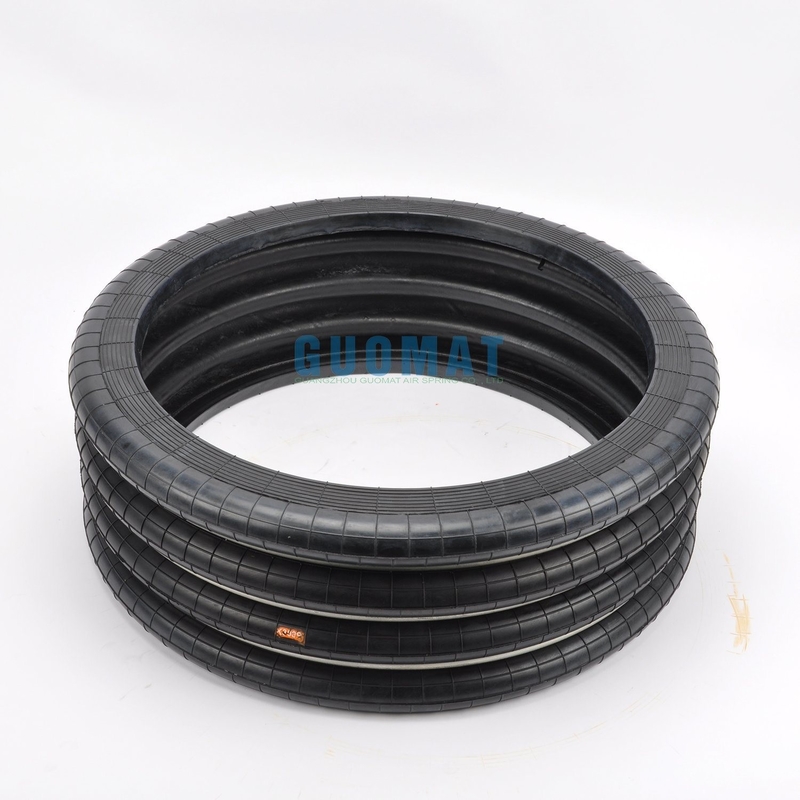

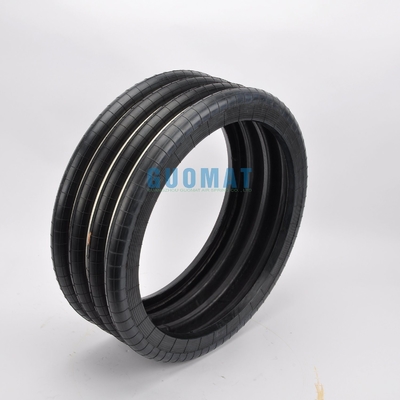

Convoluted Structure Bellows S-600-4 Yokohama Punch Air Springs with Steel Hoop

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-600-4

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	F-600-4	Application:	Industrial Punching Machine
Bellow Quantity:	Four	Trademark:	GUOMAT
Origin:	Guangzhou	Condition:	100% Brand New
Design Height:	218 MM	Full Stroke:	240 MM
Highlight:	Steel Hoop Air Springs , Convoluted Structure Air Springs , Yokohama Punch Air Springs

Convoluted Structure Bellows S-600-4 Yokohama Punch Air Springs with Steel Hoop

Product Description

Punch air springs are widely used in stamping and forming of electronics, communications, computers, household appliances, furniture, transportation, (automobiles, motorcycles, bicycles) hardware parts, etc. They are widely used in manufacturing industries such as precision machinery, instruments, computers, cameras, automobiles, motorcycles, computers, equipment, and household appliances.

Product Technical Data

GUOMAT	Reference NO.	Height H(mm)			Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area (cm²)	Volume (L)
GUOMAT	Reference NO.	Design Height (mm)	Max Height (mm)	Min Height (mm)	Common Maximum Travel (mm)	Compression Max Outside Diameter (mm)	Effective Area (cm²)	Volume (L)
F-600-5	S-600-5	276	456	156	±113	660	2830	76.6
F-600-4	S-600-4	218	363	123	±90	660	2830	59.9
F-600-3	S-600-3	160	270	90	±68	660	2830	43.2
F-600-2	S-600-2	102	172	57	±45	660	2830	26.3
F-600-1	S-600-1	72	122	40	±30	700	2830	19.0

Air Springs Can Reduce Your Costs And Increase Your Profits

Lasting at least twice, and up to four times longer than steel springs
Requiring minimal or no maintenance
Extending the lifespan of tires and brake linings
Drastically reducing damage and maintenance for other vehicle components, such as electrical systems, air conditioning, cab mounts, exhausts, chassis, seals, wiring, and drive trains
Enabling flexible hauling options and eliminating costly deadhead trips
Enhancing driver comfort and reducing fatigue, ultimately improving safety, productivity, and loyalty

Other Types

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R
