Triple Convoluted Rubber Bellow F-450-3 Punch Press Yokohama Air Spring S-450-3R

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-450-3

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-450-3	Structure:	Triple Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
OEM NO.:	Yokohama S-450-3R	Trademark:	GUOMAT
After-sales Service:	12 Months	Type:	Gas-Filled
Highlight:	Yokohama Air Spring , Punch Press Air Spring , Triple Convoluted Rubber Bellow

Triple Convoluted Rubber Bellow F-450-3 Punch Press Yokohama Air Spring S-450-3R

Specifications and Detailed Technical Parameters: F-450-3

Model Size	Height H(mm)			Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Standard height, approximate value at 0.49MPA internal pressure					Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
Model Size	Design Height	Max. Height	Min Height	Common Maximum Travel(mm)	Compression Max. Outside Diameter (mm)	Effective Area(cm2)	Volume(L)	Load(KN)	Dynamic Spring Constant(n/mm)	Natural Vibration Frequency(Hz)	Maximum Internal Pressure (MPA)	Internal Pressure Failure(MPA)
S-450-5R	276	456	156	±113	510	1590	43.6	80.0	588	1.4	0.69	3.9-4.9
S-450-4R	218	363	123	±90	510	1590	33.9	80.0	755	1.6	0.69	3.9-4.9
S-450-3R	160	270	90	±68	510	1590	24.3	80.0	1040	1.8	0.69	3.9-4.9
S-450-2R	102	172	57	±45	510	1590	14.7	80.0	1687	2.3	0.69	3.9-4.9
S-450-1R	72	117	40	±30	550	1590	11.9	80.0	2295	2.7	0.69	2.9-3.9

OEM Number

AIRSUSTECH Part No.: F-450-3

YOKOHAMA S-450-3R

YOKOHAMA S 450 3R

YOKOHAMA S4503R

GUOMAT Air Actuator Characteristics

Unlock Incredible Savings Compared to OEM/Dealer Costs
Experience Superior Performance
Backed by a Reliable 1-Year Warranty for Peace of Mind
Brand New and Ready to Elevate Your Driving Experience
Guaranteed safe & secure checkout

Other Types

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S 600 1R	F-240-4	S-240-4R	S 240 4R
F-600-2	S-600-2R	S 600 2R	F-240-3	S-240-3R	S 240 3R
F-600-3	S-600-3R	S 600 3R	F-240-2	S-240-2R	S 240 2R
F-600-4	S-600-4R	S 600 4R	F-240-1	S-240-1R	S 240 1R
F-600-5	S-600-5R	S 600 5R	F-220-4	S-220-4R	S 220 4R
F-550-2	S-550-2R	S 550 2R	F-220-3	S-220-3R	S 220 3R
F-550-3	S-550-3R	S 550 3R	F-220-2	S-220-2R	S 220 2R
F-500-2	S-500-2R	S 500 2R	F-200-2	S-200-2R	S 200 2R
F-500-3	S-500-3R	S 500 3R	F-200-3	S-200-3R	S 200 3R
F-500-4	S-500-4R	S 500 4R	F-200-4	S-200-4R	S 200 4R
F-500-5	S-500-5R	S 500 5R	F-160-1	S-160-1R	S 160 1R
F-450-1	S-450-1R	S 450 1R	F-160-2	S-160-2R	S 160 2R
F-450-2	S-450-2R	S 450 2R	F-160-3	S-160-3R	S 160 3R
F-450-3	S-450-3R	S 450 3R	F-160-4	S-160-4R	S 160 4R
F-450-4	S-450-4R	S 450 4R	F-120-4	S-120-4R	S 120 4R
F-450-5	S-450-5R	S 450 5R	F-120-3	S-120-3R	S 120 3R
F-400-2	S-400-2R	S 400 2R	F-120-2	S-120-2R	S 120 2R
F-400-3	S-400-3R	S 400 3R	F-100-4	S-100-4R	S 100 4R
F-400-4	S-400-4R	S 400 4R	F-90-3	S-90-3R	S 90 3R
F-400-5	S-400-5R	S 400 5R	F-90-2	S-90-2R	S 90 2R
F-350-1	S-350-1R	S 350 1R	F-90-1	S-90-1R	S 90 1R
F-350-2	S-350-2R	S 350 2R	F-300-1	S-300-1R	S 300 1R
F-350-3	S-350-3R	S 350 3R	F-300-2	S-300-2R	S 300 2R
F-350-4	S-350-4R	S 350 4R	F-300-3	S-300-3R	S 300 3R
			F-300-4	S-300-4R	S 300 4R

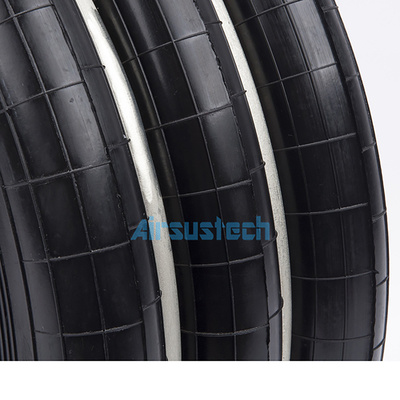

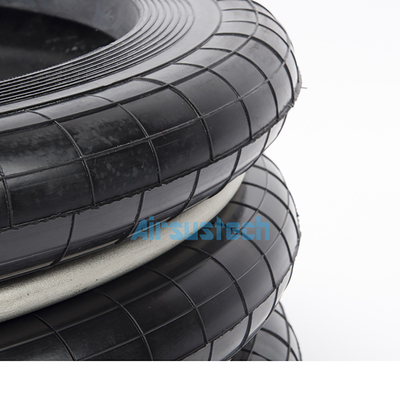

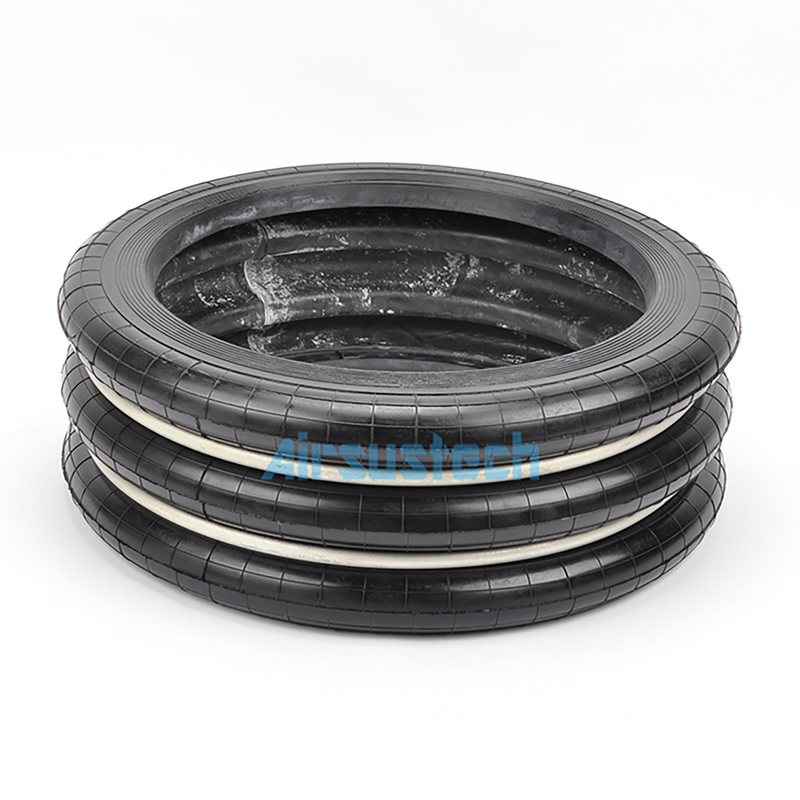

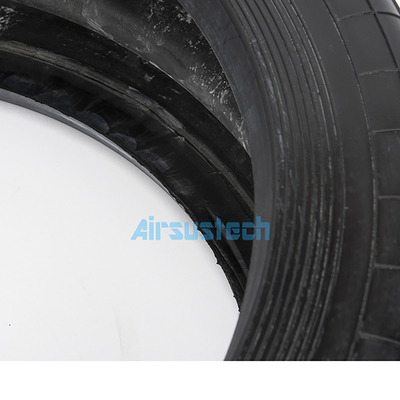

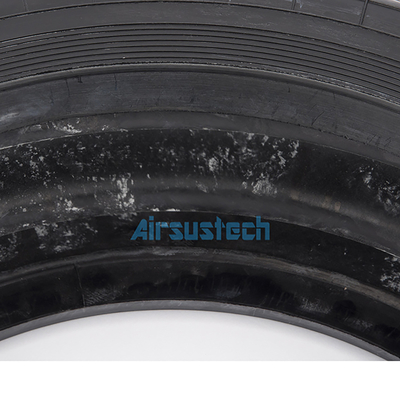

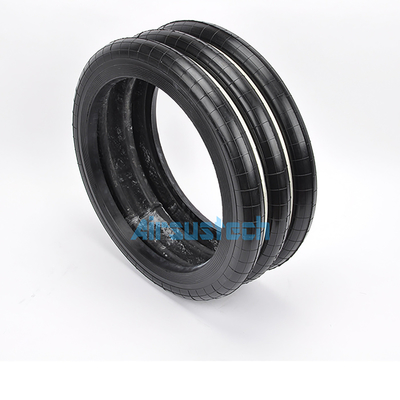

The Related Picture of F-450-3

Triple Convoluted Rubber Bellow F-450-3 Punch Press Yokohama Air Spring S-450-3R 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Triple Convoluted Rubber Bellow F-450-3 Punch Press Yokohama Air Spring S-450-3R 2

Factory Workshop

Triple Convoluted Rubber Bellow F-450-3 Punch Press Yokohama Air Spring S-450-3R 3
