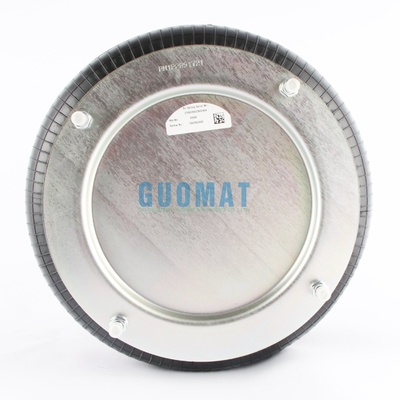

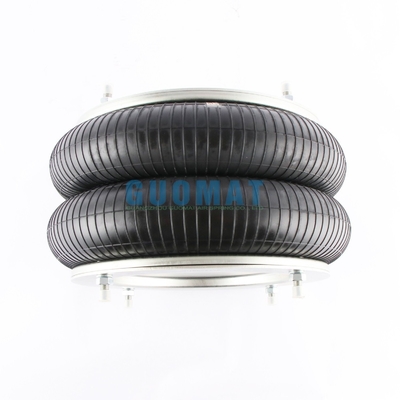

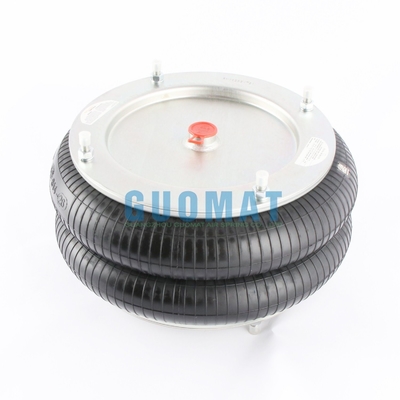

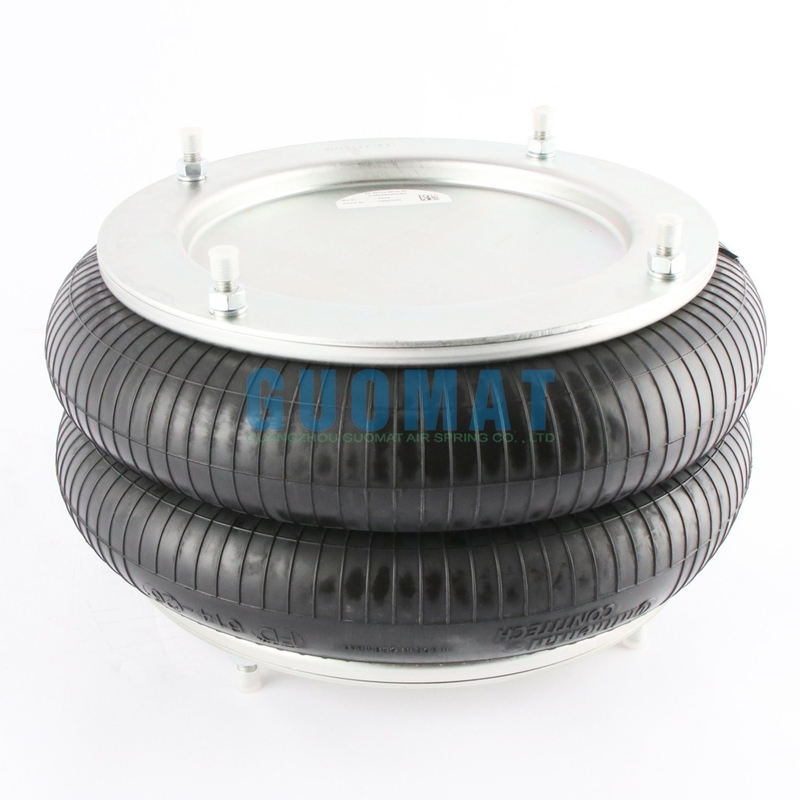

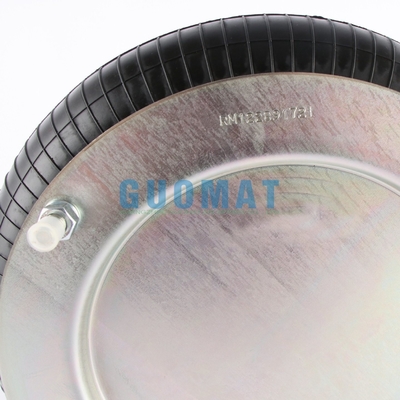

Flange Ring Air Bellow Contitech FD 614-26 Firestone W01-R58-4064 Truck Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2H4064

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2H4064	Structure:	Double Convoluted
Function:	Reduce Shock	Quality:	100% Tested
Trademark:	GUOMAT	Warranty:	1 Year
Type:	Gas-Filled	Full Stroke:	265 MM
Highlight:	Flange Ring Truck Air Spring , FD 614-26 Truck Air Spring

Flange Ring Air Bellow Contitech FD 614-26 Firestone W01-R58-4064 Truck Air Spring

About Air Spring

Air springs have been a staple in heavy-duty vehicle suspension systems for nearly a century, leveraging compressed air from braking systems to deliver dual benefits over mechanical leaf or coil springs. First, air suspension enhances ride comfort by allowing adjustable air pressure, which modifies the spring rate and improves ride quality. Second, the ability to regulate air pressure enables precise deck or trailer height adjustments, facilitating easier alignment with loading docks when dock plates are not available.

Product Details

Cover Plate
Top Cover Plate Diameter	310 mm
Screw Center Distance of Top Cover Plate	282.5 mm
Bottom Cover Plate Diameter	310 mm
Screw Center Distance of Bottom Cover Plate	282.5 mm
Nut/Blind Nuts
Top Cover Plate Screw(Nut) Tooth	4×M10
Bottom Cover Plate Screw(Nut) Tooth	4×M10
Gas Hole/Air Inlet/Air Fitting
Air Hole	G 1/2
Rubber Bellow
Rubber Bellow Max. Diameter	400 mm
Space Required	425 mm
Minimum Height	75 mm
Maximum Height	340 mm

Cross Reference

Contitech FD614-26
Contitech FD 614-26
Contitech FD614-26 DS G1/4
Contitech FD 614-26 DS G1/4
Fire stone W01-R58-4064 W01R584064 W01 R58 4064
Weweler USN 510010DX
Gigant 881205
Fire stone 14.5x2
DUNLOP FR, SP 1556
NORGREN, M/31142 (141/2x2)

Product Applications

Large drying machines
Vibratory conveyors
Electronic equipment
Compressors
Conveyor loading points
Textile looms
Rotary shaft actuators
Conveyor or transfer systems
