Dunlop 12''x2 Series Suspension Air Spring Contitech FD412-22 with Flange Ring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B12×2T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2B12×2T	Structure:	Double Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
Cross Reference:	W01-R58-4061	After-sales Service:	12 Months
Space Required:	295 MM	Design Height:	160 MM
Highlight:	Dunlop Suspension Air Spring , Suspension Air Spring FD412-22 , Suspension Air Spring with Flange Ring

Dunlop 12''x2 Series Suspension Air Spring Contitech FD412-22 with Flange Ring

Product Technical Data

Type	Max. Diameter	Minimum Height (mm)	Maximum Height (mm)	Total Stroke	Static Height (mm)	C to C Diameter	Space Required
41/2×1	125	45	90	45	65	93	140
6×1	168	58	108	50	80	127	180
8×1	230	47	120	73	90	156	240
10×1	280	50	135	85	95	181	295
12×1	330	50	145	95	95	232	345
141/2×1	395	47	165	118	105	283	410
41/2×2	125	65	145	80	100	93	140
6×2	168	73	170	100	120	127	180
8×2	230	72	225	153	150	156	240
91/4×2	260	70	240	170	160	168	275
10×2	280	70	240	170	160	181	295
12×2	330	74	240	166	160	232	345
141/2×2	395	70	280	210	180	283	410
16×2	430	77	320	243	180	283	445
41/2×3	125	100	200	100	145	93	140
6×3	168	105	225	150	180	127	180
10×3	280	100	365	265	235	181	295
12×3	330	100	430	330	222	232	345
141/2×3	395	100	476	376	280	283	410
16×3	430	125	500	375	280	283	445

Cross Reference

Dunlop	12''X2
Dunlop	SP1541/SP 1541
Fire-stone	W01-R58-4061
Fire-stone	W01 R58 4061
Fire-stone	W01R584061
Contitech	FD 412-22
Contitech	FD412-22
Norgren	M/31122
Norgren	M31122

GUOMAT Support And Services

Our Industrial Air Springs product comes with comprehensive technical support and services to ensure that your experience with our product is seamless. Our team of experts is always available to assist with any technical issues that you may encounter with your air springs.
We also provide installation services to ensure that your air springs are installed correctly and function optimally. Additionally, we offer maintenance and repair services to keep your air springs in top condition and to extend their lifespan.
Our technical support and services are designed to help you get the most out of our product and to ensure that you have a positive experience with our brand.

We Offer Other Flange Air Shock Suspensions

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×2		2 3/4''×2	SP2904	FD 22-4 DI		9109009
2B4.5×2	W01R584051	4 1/2''×2	SP2441	FD 44-10 DI	PM/31042	9109401
2B4.5×2-E
2B6×2T(AI)	W01R584070	6''×(AI)	SP2917	FD 76-14 DI	PM/31062	9109001A
2B6×2T(Steel)	W01R584053	6''×2(Steel)	SP1482	FD 76-14 DS	M/31062	9109001
2B8×2T	W01R584055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
2B10×2T	W01R584058	10''×2	SP1538	FD 210-22 DS	M/31102	9109021
2B12×2T	W01R584061	12''×2	SP1541	FD 412-22 DS	M/31122	9109041
2B12''×2-E	W01R584039	12''×2 Extend	SP2782NB
2B14 1/2''×2T	W01R584064	14'' 1/2×2	SP1556	FD 614-26 DS	M/31142	9109061
2B16×2T	W01R584067	16''×2	SP1557	FD 816-30 DS	M/31162	9109171
2B21 1/2''×2T		21 1/2''×2	SP1408		M/31212	9109153
2B26''×2T		26''×2	SP2342		M/31262	9109159

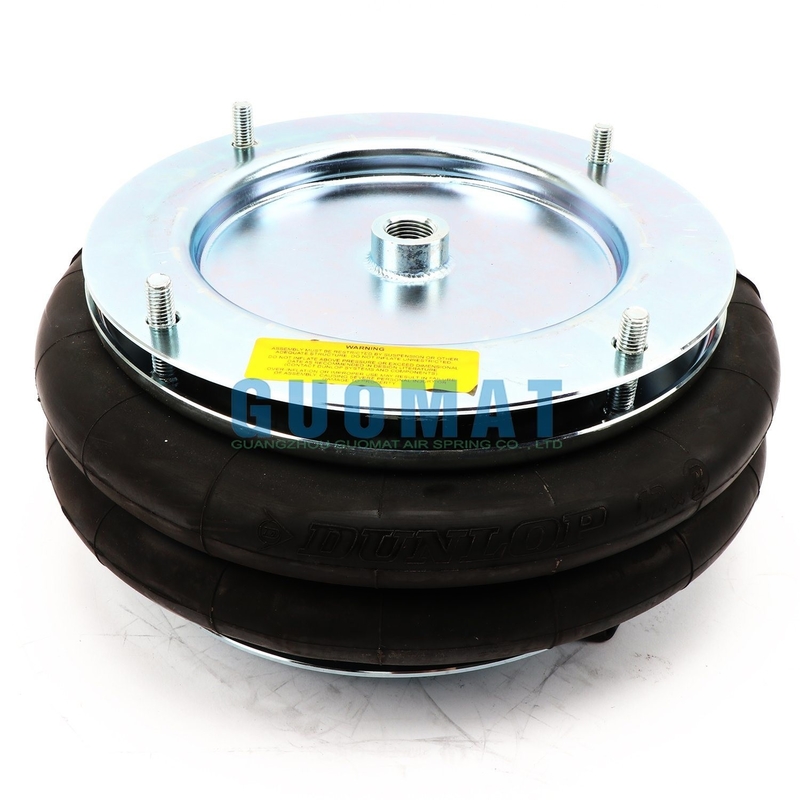

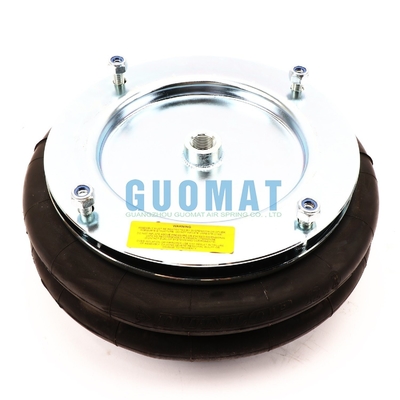

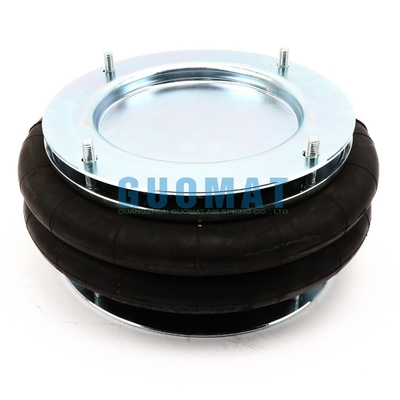

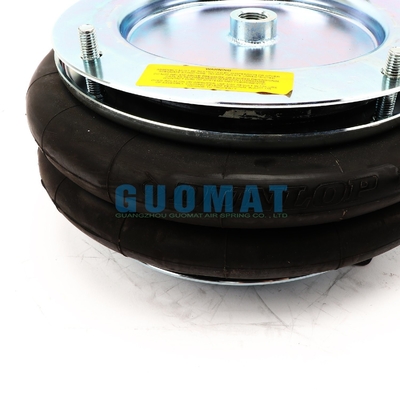

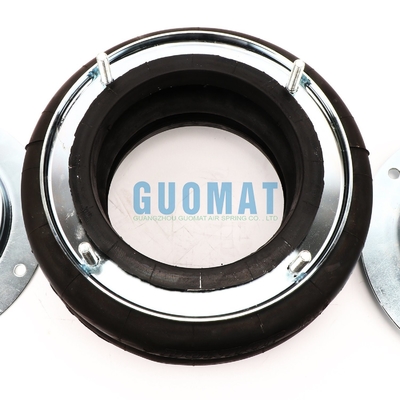

The Related Picture of 12×2 Rubber Air Shocks/Air Spring Assembly

Dunlop 12''x2 Series Suspension Air Spring Contitech FD412-22 with Flange Ring 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. was established in 2008 and is located in Guangzhou, the capital city of Guangdong Province. The company's production plant covers an area of 20,000 square meters and is located in Taihe Town, Baiyun District, Guangzhou City. With the continuous development of the company, it is gradually equipped with modern workshops and advanced rubber air spring equipment. It is one of the important air spring production bases in China. At the same time, Gomart used domestic advanced air spring processing equipment and introduced foreign air spring production technology, combined with the company's unique production process, and strictly implemented production in accordance with international standards to produce advanced products. All products comply with ISO9001, ISO/IS16949 standards.

The main products of Guangzhou Guomat air spring Co., Ltd. are: rubber air springs, air suspension springs, rubber air springs for automobiles, airbags for passenger cars and trucks, industrial air springs, etc. The products cover buses, luxury cars, trucks, Commercial vehicles, rail vehicles, industrial machinery, industrial equipment and other industries. The company has hundreds of models and styles of products. At the same time, it can also carry out directional transformation and design of products according to the special needs of users, providing users with one-stop service.

Dunlop 12''x2 Series Suspension Air Spring Contitech FD412-22 with Flange Ring 1

Factory Workshop

Dunlop 12''x2 Series Suspension Air Spring Contitech FD412-22 with Flange Ring 2
