Truck Air Spring Norgren M/31062 Continental Contitech Air Actuator FD 76-14 DS

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6×2T

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6×2T	Function:	Shock Absorber
Quality:	100% Tested	Keywords:	Double Convoluted Air Spring
Transport Package:	Cartons	Trademark:	GUOMAT
After-sales Service:	1 Year	Type:	Gas-Filled
Highlight:	FD 76-14 DS Air Spring , Norgren M/31062 Air Spring , Continental Contitech Air Spring

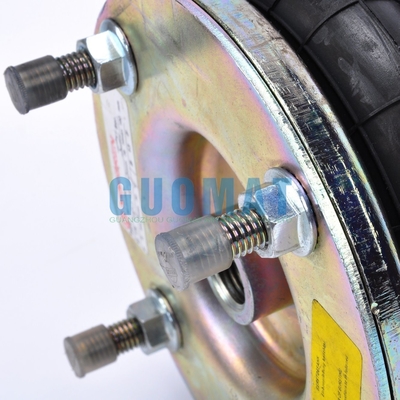

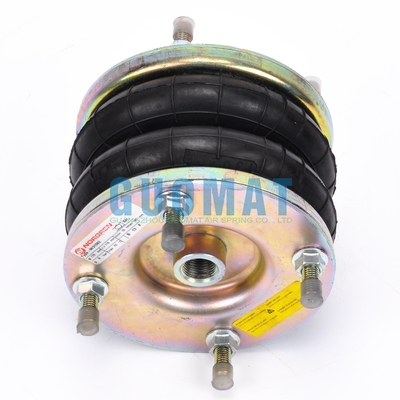

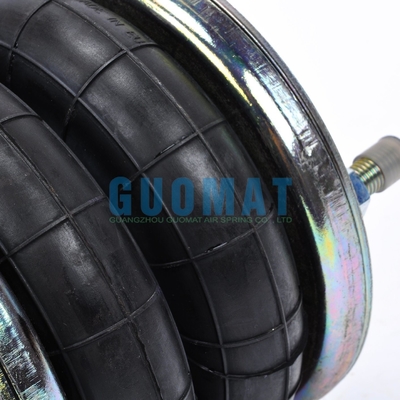

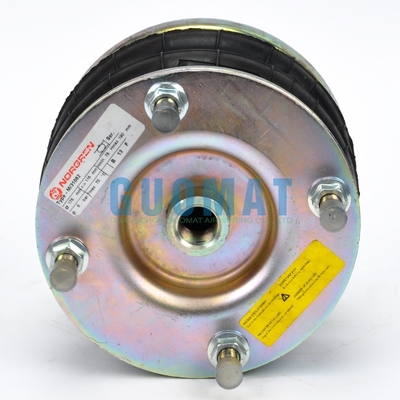

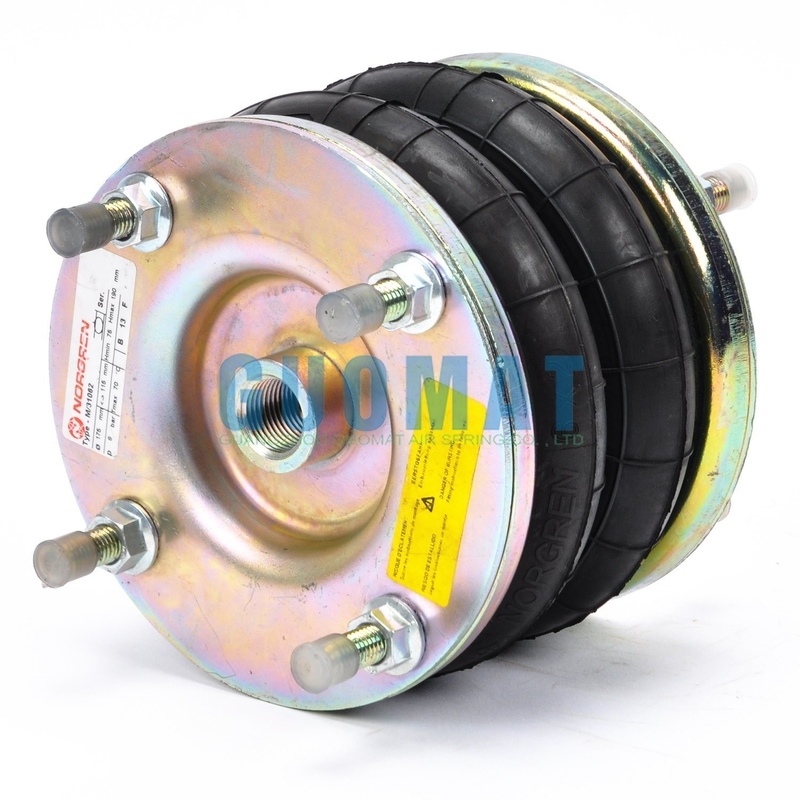

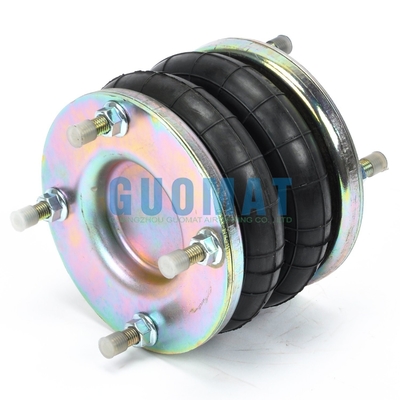

Truck Air Spring Norgren M/31062 Continental Contitech Air Actuator FD 76-14 DS

Product Description

Rubber Bellow Natural Diameter: 159 mm

Bellows Type: Double Convoluted

Design Height: 135.5 mm

Top Plate Diameter: 153.5 mm

C to C Distance of Top Plate: 127 mm

Bottom Plate Diameter: 153.5 mm

C to C Distance of Bottom Plate: 127 mm

Screw Tye: 4-M10

Pneumatic Connection: G 1/2

Refer Number

Norgren	M/31062 / M31062 / M 31062
Fire stone	W01-R58-4053/W01 R58 4053/W01R584053
Contitech	FD 76-14 DS / FD76-14 DS / FD 76-14
Dunlop	6''X2 / SP1482
Parker	9109001
Oria D Series	6''x2

Other Double Convoluted Flange Air Springs

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×2		2 3/4''×2	SP2904	FD 22-4 DI		9109009
2B4.5×2	W01R584051	4 1/2''×2	SP2441	FD 44-10 DI	PM/31042	9109401
2B4.5×2-E
2B6×2T(AI)	W01R584070	6''×(AI)	SP2917	FD 76-14 DI	PM/31062	9109001A
2B6×2T(Steel)	W01R584053	6''×2(Steel)	SP1482	FD 76-14 DS	M/31062	9109001
2B8×2T	W01R584055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
2B10×2T	W01R584058	10''×2	SP1538	FD 210-22 DS	M/31102	9109021
2B12×2T	W01R584061	12''×2	SP1541	FD 412-22 DS	M/31122	9109041
2B12''×2-E	W01R584039	12''×2 Extend	SP2782NB
2B14 1/2''×2T	W01R584064	14'' 1/2×2	SP1556	FD 614-26 DS	M/31142	9109061
2B16×2T	W01R584067	16''×2	SP1557	FD 816-30 DS	M/31162	9109171
2B21 1/2''×2T		21 1/2''×2	SP1408		M/31212	9109153
2B26''×2T		26''×2	SP2342		M/31262	9109159

Compared with Spring, Air Spring Shock Absorbers Have The Following Advantages

Excellent shock absorption
Stable shock absorption
Precise height control
Wide range of sizes
Extend equipment life
Effectively reduce noise
Air spring shock absorbers are widely used

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
