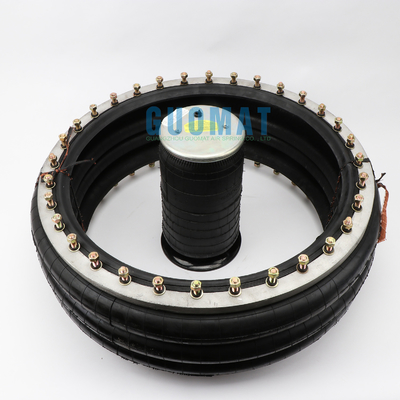

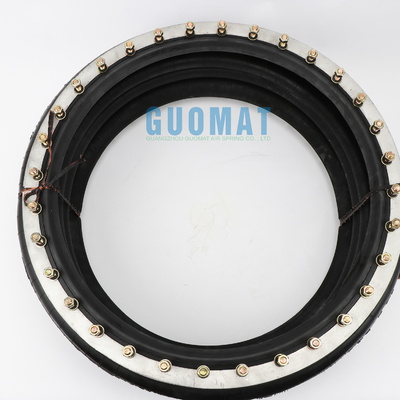

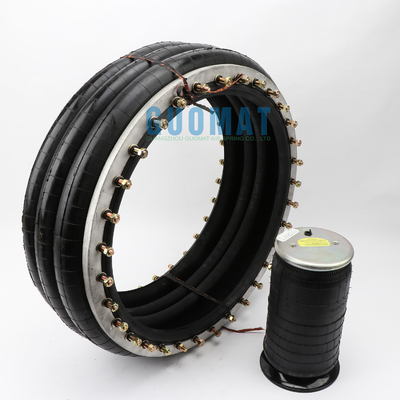

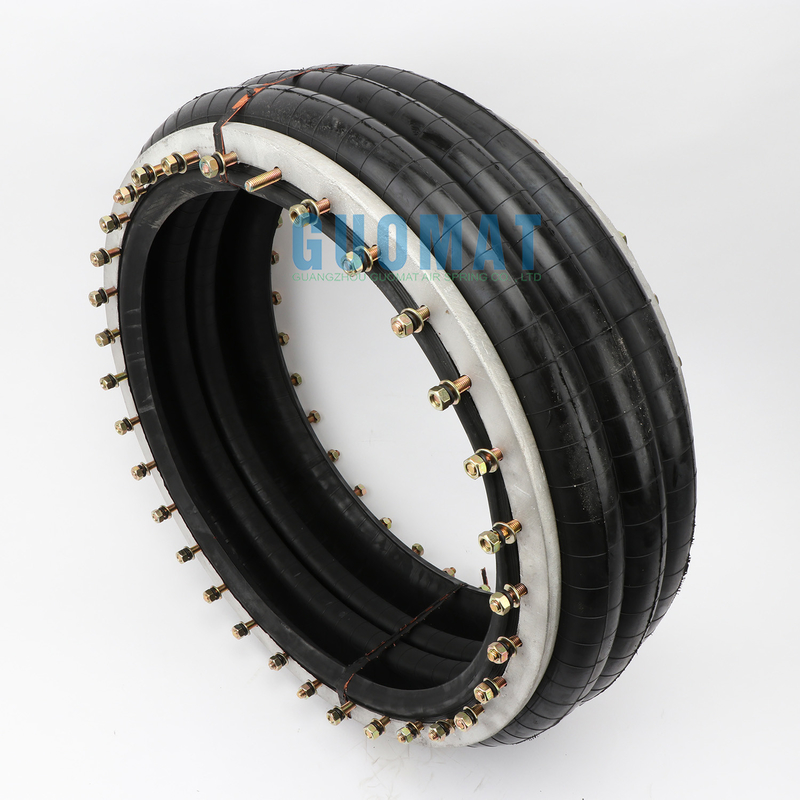

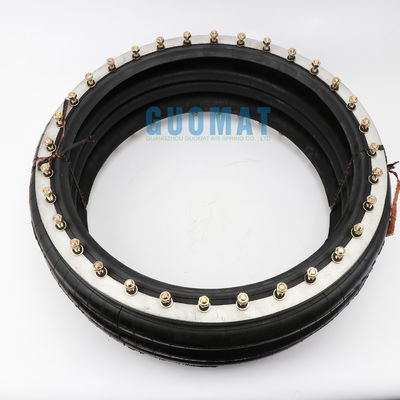

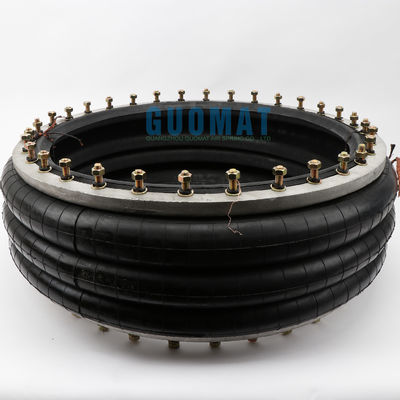

W01-M58-6984 Air Bellow by Firestone Metric Triple Convoluted Flange Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3H6984

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3H6984	Trademark:	GUOMAT
Compressed Height:	114 MM	Expanded Height:	508 MM
Full Stroke:	394 MM	Cross References:	W01-358-7919
Sample:	Available	Material:	Natural Rubber
Highlight:	Metric Triple Convoluted Air Bellow , W01-M58-6984 Air Bellow

W01-M58-6984 Air Bellow by Firestone Metric Triple Convoluted Flange Air Spring

Product Specification

Nut length: 15 mm

Number of screws on the top cover: 32

Number of bottom cover screws: 32

Top cover plate screw (nut) tooth: 32×(M10-1.5) bolts

Top cover screw center distance: 596 mm

Screw (nut) teeth of the bottom cover plate: 32×(M10-1.5) bolts

Center distance of bottom cover plate screw: 596 mm

Top cover diameter: 638 mm

Diameter of bottom cover: 638 mm

Maximum diameter of rubber bellows: 707 mm

Buffer block/buffer block

Waist ring/waist ring

Strap ring: no strap ring

Cross References

Firestone Style 321

Aluminum ribber neck bead rings (equal spcing), 45 mm bolts, nuts, washers:

W01-M58-6984 / W01 M58 6984 / W01M586984

WO1-M58-6984 / WO1 M58 6984 / WO1M586984

Rubber bellows only:

W01-358-7919 / W01 358 7919 / W013587919

WO1-358-7919 / WO1 358 7919 / WO13587919

GUOMAT Air Spring Advantages

Flexibility (no angle or alignment problem)
Compactness
Power / price ratio
No maintenance or lubrication required
Durability
Reliability
Resistance to aggressive or hot conditions

Other Flange Air Springs

Flange connection type of air spring model comparison table
GUOMAT NO.	Contitech NO.	GUOMAT NO.	Contitech NO.
FS22-3DICR	FS 22-3 DI CR	FS960-12RS	FS 960-12 RS
FS44-5DICR	FS 44-5 DI CR	FS1330-11RS	FS 1330-11 RS
FS76-7DICR	FS 76-7 DI CR	FS1710-12RS	FS 1710-12 RS
FS76-7DSCR	FS 76-7 DS CR	FS2870-16RS	FS 2870-16 RS
FS138-8DS	FS 138-8 DS	FS5450-16RS	FS 5450-16 RS
FS210-10DS	FS 210-10 DS	FD960-22RS	FD 960-22 RS
FS412-10DS	FS 412-10 DS	FD1120-30RI	FD 1120-30 RI
FS614-13DS	FS 614-13 DS	FD1330-25RS	FD 1330-25 RS
FS816-15DS	FS 816-15 DS	FD1710-25RS	FD 1710-25 RS
FD22-4DICR	FD 22-4 DI CR	FD1730-40RI	FD 1730-40 RI
FD44-10DICR	FD 44-10 DI CR	FD2380-24RS	FD 2380-24 RS
FD76-14DICR	FD 76-14 DI CR	FD2470-40RI	FD 2470-40 RI
FD76-14DSCR	FD 76-14 DS CR	FD2870-30RS	FD 2870-30 RS
FD138-18DS	FD 138-18 DS	FD5450-28RS	FD 5450-28 RS
FD209-21DS	FD 209-21 DS	FT960-34RS	FT 960-34 RS
FD210-22DS	FD 210-22 DS	FT1330-35RS	FT 1330-35 RS
FD412-18DS	FD 412-18 DS	FT1710-38RS	FT 1710-38 RS
FD614-26DS	FD 614-26 DS	FT2870-45RS	FT 2870-45 RS
FD816-30DS	FD 816-30 DS	FT5450-44RS	FT 5450-44 RS
FT22-6DICR	FT 22-6 DI CR
FT44-15DICR	FT 44-15 DI CR
FT76-20DICR	FT 76-20 DI CR
FT76-20DSCR	FT 76-20 DS CR
FT138-26DS	FT 138-26 DS
FT210-32DS	FT 210-32 DS
FT412-32DS	FT 412-32 DS
FT614-36DS	FT 614-36 DS
FT816-40DS	FT 816-40 DS
