Heavy-Duty Equipment Air Spring 3H480312 with Flange Ring Triple Convoluted

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3H480312

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	3H480312	Warranty:	One Year
Bolt Circle Diameter Mm:	438 Mm	Bottom Bolt Circle Dia:	438 Mm
Screw (Nut):	M10	Transport Package:	Cartons
Trademark:	GUOMAT	Function:	Reduce Vibration
Highlight:	Heavy Duty Equipment Air Spring , Triple Convoluted Equipment Air Spring , Flange Ring Equipment Air Spring

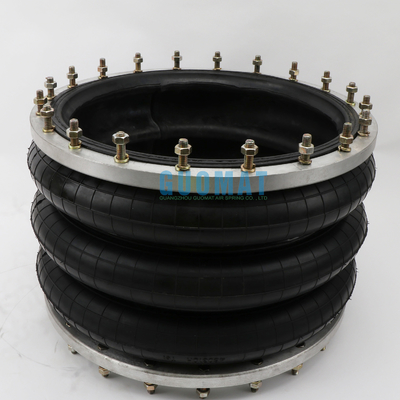

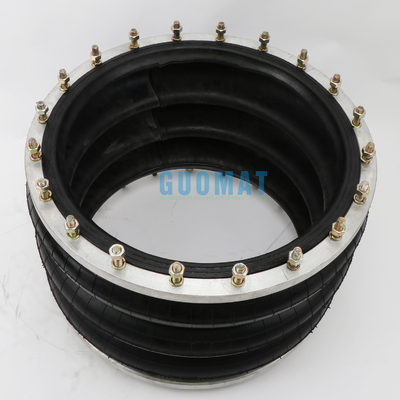

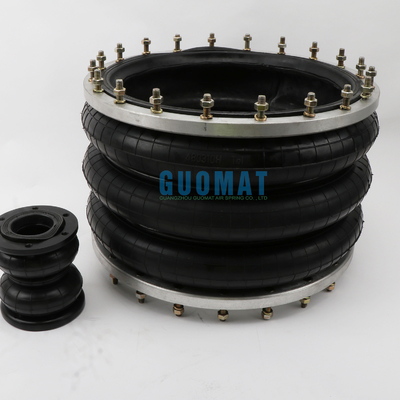

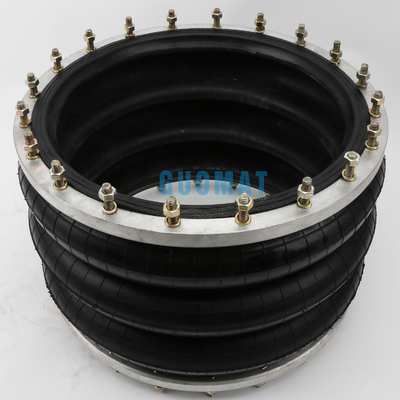

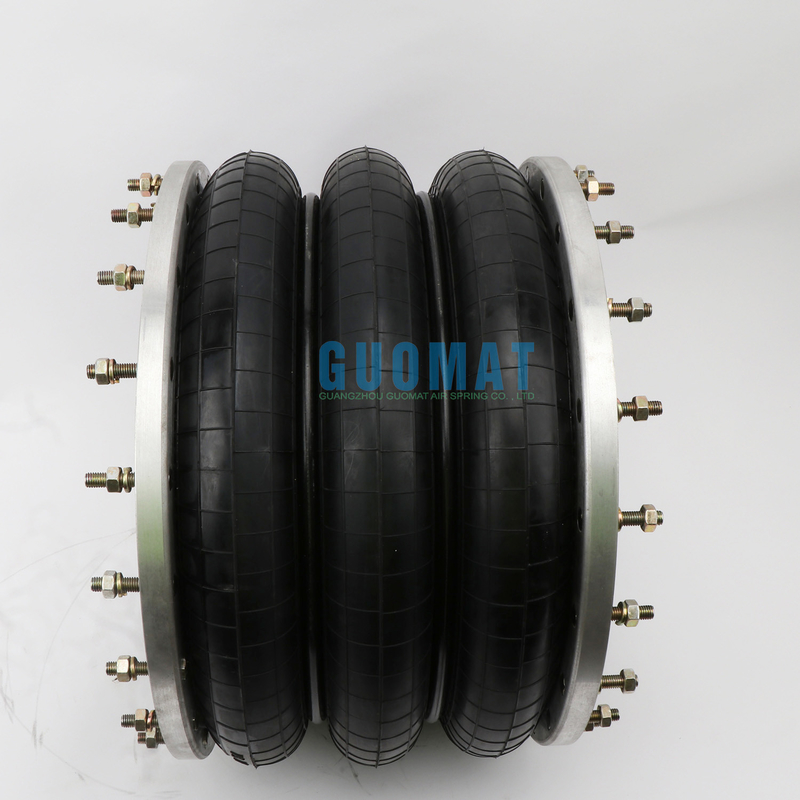

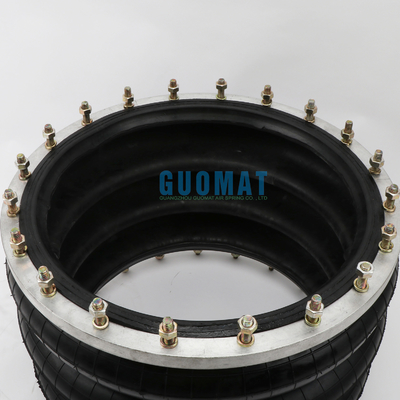

Heavy-Duty Equipment Air Spring 3H480312 with Flange Ring Triple Convoluted

Product Introduction

Flange air spring is an ideal choice for air suspension system. It is a device that provides support and shock absorption through compressed air and is widely used in vehicles such as cars, trucks, motorcycles, etc. Compared with traditional steel springs, flange air springs have more advantages and functions.

Convoluted Air Spring Specifications

Manufacturer Part Number	3H480312	Bead ring Type	4
Maximum Diameter @ 7 Bar (mm)	510	Dim# C (Bolt Circle Diameter mm)	438
Maximum Height (mm)	378	# of Bolts (each ring)	32
Maximum Stroke (mm)	256	Design Height (mm)	381
Minimum Usable Height (mm)	224	3 Bar (kN)	78.5
25 mm (kN)		5 Bar (kN)	132.9
50% of Max Stroke (kN)		7 Bar (kN)	187.9
Maximum Stroke (kN)		Natural Frequency (@5 Bar)(fn(Hz)	1.2
Applicable Technigram?		7 Hz	97
Material	One-Ply,	13 Hz	99.3
		25 Hz	99.8

Product Features

Regularly inspect the air valve and connecting pipes for any leaks or damage to ensure proper gas filling.
Adjust the air pressure and spring hardness based on the vehicle load and driving conditions to achieve optimal shock absorption performance.
Avoid exposing the air spring to severe impacts or suspension under harsh road conditions to prevent potential damage.

Other Flange Ring Air Springs

Flange connection type of air spring model comparison table
GUOMAT NO.	Contitech NO.	GUOMAT NO.	Contitech NO.
FS22-3DICR	FS 22-3 DI CR	FS960-12RS	FS 960-12 RS
FS44-5DICR	FS 44-5 DI CR	FS1330-11RS	FS 1330-11 RS
FS76-7DICR	FS 76-7 DI CR	FS1710-12RS	FS 1710-12 RS
FS76-7DSCR	FS 76-7 DS CR	FS2870-16RS	FS 2870-16 RS
FS138-8DS	FS 138-8 DS	FS5450-16RS	FS 5450-16 RS
FS210-10DS	FS 210-10 DS	FD960-22RS	FD 960-22 RS
FS412-10DS	FS 412-10 DS	FD1120-30RI	FD 1120-30 RI
FS614-13DS	FS 614-13 DS	FD1330-25RS	FD 1330-25 RS
FS816-15DS	FS 816-15 DS	FD1710-25RS	FD 1710-25 RS
FD22-4DICR	FD 22-4 DI CR	FD1730-40RI	FD 1730-40 RI
FD44-10DICR	FD 44-10 DI CR	FD2380-24RS	FD 2380-24 RS
FD76-14DICR	FD 76-14 DI CR	FD2470-40RI	FD 2470-40 RI
FD76-14DSCR	FD 76-14 DS CR	FD2870-30RS	FD 2870-30 RS
FD138-18DS	FD 138-18 DS	FD5450-28RS	FD 5450-28 RS
FD209-21DS	FD 209-21 DS	FT960-34RS	FT 960-34 RS
FD210-22DS	FD 210-22 DS	FT1330-35RS	FT 1330-35 RS
FD412-18DS	FD 412-18 DS	FT1710-38RS	FT 1710-38 RS
FD614-26DS	FD 614-26 DS	FT2870-45RS	FT 2870-45 RS
FD816-30DS	FD 816-30 DS	FT5450-44RS	FT 5450-44 RS
FT22-6DICR	FT 22-6 DI CR
FT44-15DICR	FT 44-15 DI CR
FT76-20DICR	FT 76-20 DI CR
FT76-20DSCR	FT 76-20 DS CR
FT138-26DS	FT 138-26 DS
FT210-32DS	FT 210-32 DS
FT412-32DS	FT 412-32 DS
FT614-36DS	FT 614-36 DS
FT816-40DS	FT 816-40 DS
