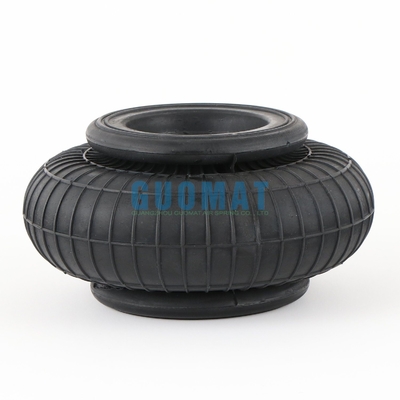

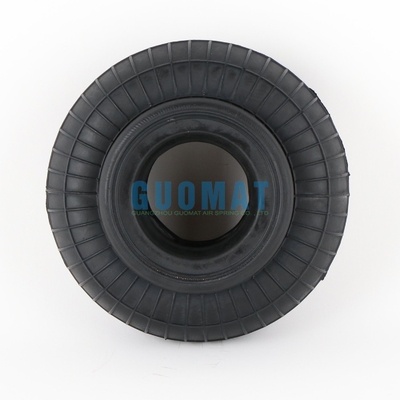

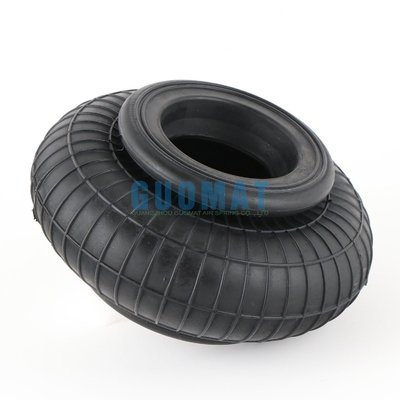

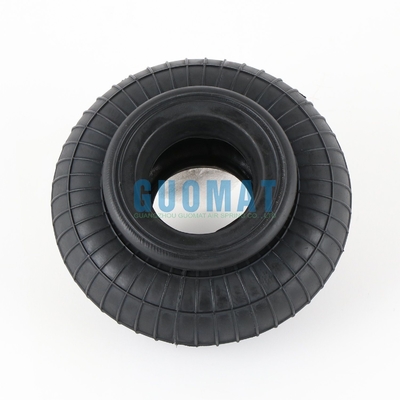

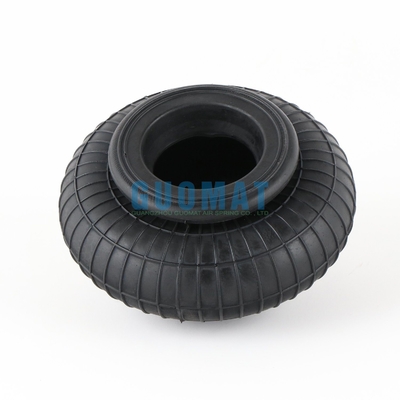

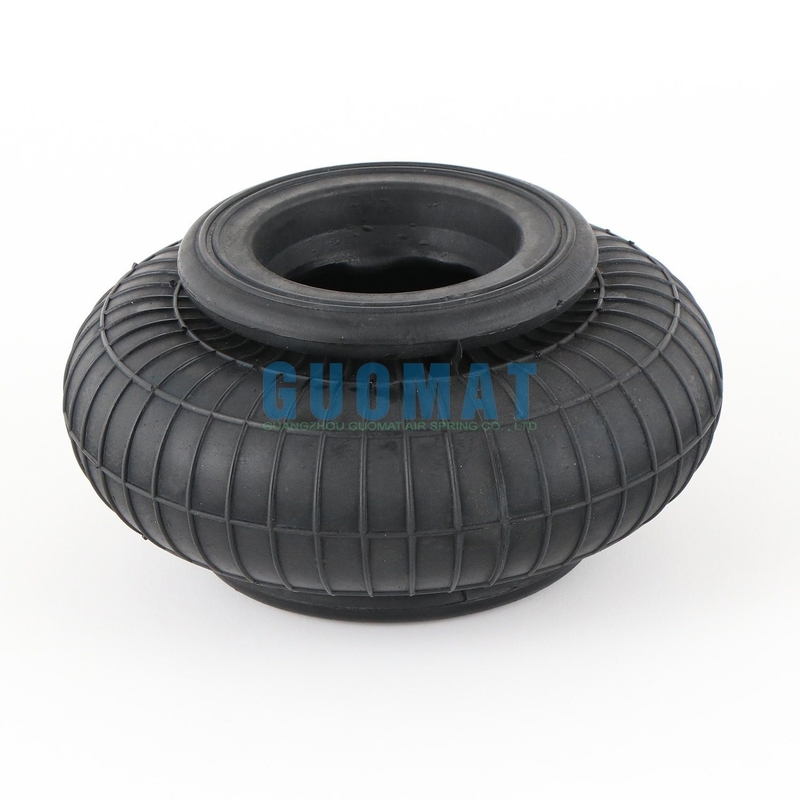

Contitech FS70-7 Single Convoluted Rubber Bellow Weforma WBE 200-E1 Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7070

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B7070	Structure:	Single Convoluted
OEM Number:	Eb-165-65	Function:	Reduce Vibration
Trademark:	GUOMAT	Working Stroke:	2.5 Inches
Space Required:	7.09 Inches	Sample:	Available
Highlight:	WBE 200-E1 Air Spring , Single Convoluted Rubber Bellow Air Spring

Contitech FS70-7 Single Convoluted Rubber Bellow Weforma WBE 200-E1 Air Spring

Product Introduction

Whether you're hauling heavy loads or simply looking for a more comfortable ride, the AIRSUSTECH Industrial Air Springs are the perfect choice. With their durable construction, wide operating temperature range, and impressive stroke length, these air vibration bags are sure to provide the performance and reliability you need.

Product Details

Contitech

FS70-7

FS 70-7

FS707

Phoenix

SP1B05

SP 1B05

SP 1B 05

Bosch

822419002

822 419 002

Festo

EB-165-65

EB 165 65

EB16565

Weforma

WBE 200-E1

WBE 200 E1

WBE200E1

Product Features

Body Dia.[Max]: 6.50 in.
Temperature Range : -40℃+70℃
Air Inlet Type: Imperial
Stroke Length [Max]: 2.5 in.
Pressure [Max]: 0-8 bar
Height [Max]: 4.5 in.
Height [Min]: 2.0 in.
Air Inlet: 1/4 NPT
Nut/Blind Nuts: 2×3/8UNC
Center to Center Distance: 1.75 in.
Cover Plate Diameter: 4.25 in.

Product Applications

Carton making machine
Mineral sample pulverizers
Spin washing machines
Expanded metal machine
Concrete brick machine
Rotating table with the air spring
Crushing machine
Concrete screening machine
Carpet extraction machine
Commercial laundry machines

Other Type Air Springs

1B12-305	FS 40-6 CI	SP2906
1B14-350	FS 50-5 CI	SP2334
1B14-352	FS 70-7 CI	SP2913
1B14-364	FS 100-10 CI	SP1536
1B15-376	FS 120-10 CI	SP1537
1B15-378	FS 120-12 CI	SP2523
1B12-313	FS 200-10 CI	SP1540
1B14-351	FS 310-12 CI	SP1543
1B14-362	FS 330-11 CI
1B15-377	FS 330-14 CI
1B15-375	FS 530-11 CI
	FS 530-14 CI
	FS 960-12 CI
	FS 1330-11 CI

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
