GUOMAT 2H250180 Double Convoluted Air Spring With Flange Ring Max. Diameter 185MM

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2H250180

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	2H250180	Bellows Type:	Double Convoluted
Condition:	Brand New	Trademark:	GUOMAT
After-sales Service:	12 Months	Application:	Industrial Machine
Minimum Compression:	84 MM	Full Stroke:	122 MM
Highlight:	2H250180 Double Convoluted Air Spring , Double Convoluted Air Spring 185MM

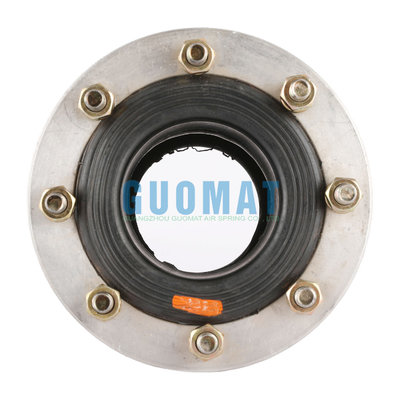

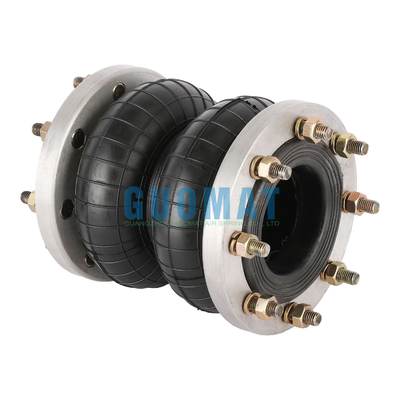

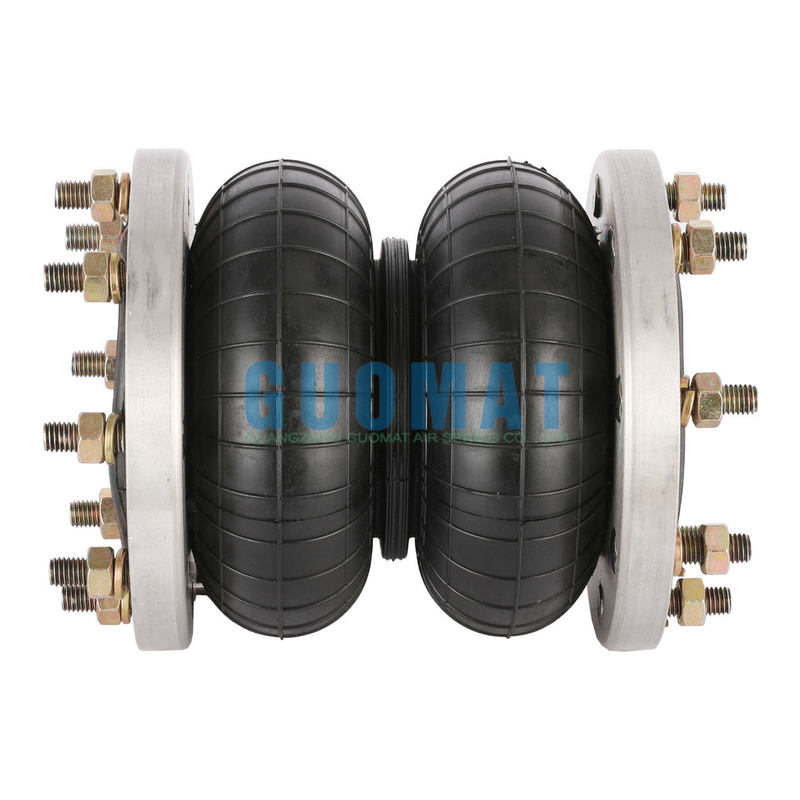

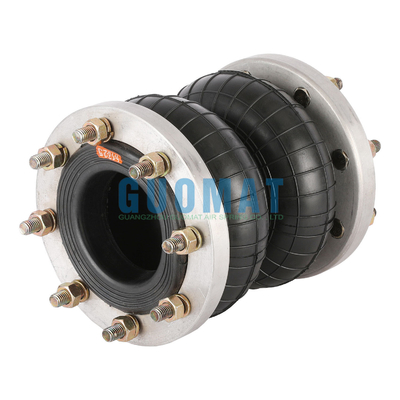

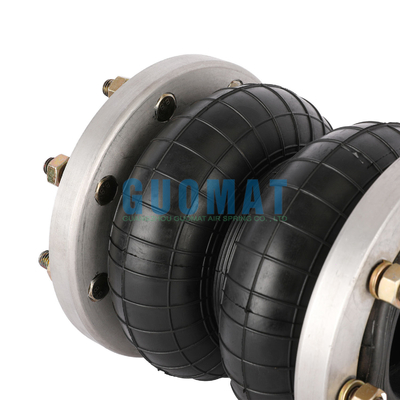

GUOMAT 2H250180 Double Convoluted Air Spring with Flange Ring Max. Diameter 185MM

Product Introduction

Air springs are pneumatic devices that convert the energy of compressed air into pressure. Air cylinders are mechanical devices that apply force by converting the potential energy of compressed gas into kinetic energy. Pneumatics is a technology that uses compressed air to operate different mechanisms. In the industrial sector, it is used in a variety of processes and applications.

Technical Data

Diameter: 185mm
Minimum Compression: 84mm
Extend: 206mm
Full Stroke: 122mm
Rubber Bellows Max Diameter: 270mm (At 0.7Mpa)
Natural Height: 180mm
Cover Plate Diameter: 183mm

Every Standard Air Spring Consists of 4 Layers

The inner layer which actually contains the air.
The first layer of fabric reinforced rubber applied at a specific angle.
The second layer of fabric reinforced rubber which is laid to a specific angle to the first layer.
The cover to protect the bias fabric plies.

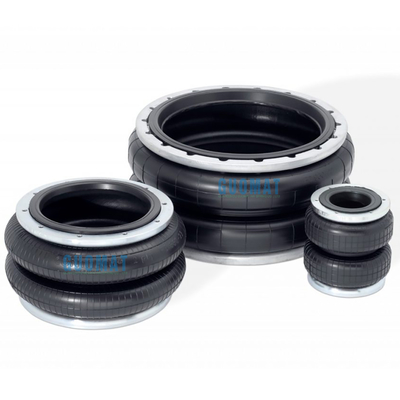

2B Industrial Air Springs We Have

2H630262	W01-358-7772 W01-358-7775 W01-358-5126
2B12×2T	Firestone W01-R58-4061 Dunlop Pneuride 12" x 2 Dunlop Springride SP1541 Contitech FD 412-22 DS Norgren M/31122 Parker 9109041
2B8×2T	Firestone W01-R58-4055 Dunlop Pneuride 8''×2 Dunlop Springride SP1490 Contitech FD 138-18 DS Norgren M/31082 Parker 9109011
2B10×2T	Firestone W01-R58-4058 Dunlop Pneuride 10''×2 Dunlop PNP 305450112 Airbag Man DB1028 Dunlop Springride SP1538 Contitech FD 210-22 DS Norgren M/31102 Parker 9109021
2B6×2T	Firestone W01-R58-4053 Dunlop Pneuride 6" x 2 (Steel) Dunlop Springride SP1482 Contitech FD76-14 DS Norgren M/31062 Parker 9109001
