Air Rubber Bellow Contitech FT 412-32 DS Triple Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3B12×3T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3B12×3T	Function:	Reduce Shock
Trademark:	GUOMAT	Type:	Gas-Filled
Customization:	Available \| Customized Request	Design Height:	252 MM
Air Connection:	G1/2	Warranty Special:	12 Months
Highlight:	FT 412-32 DS Triple Convoluted Air Spring , Rubber Triple Convoluted Air Spring

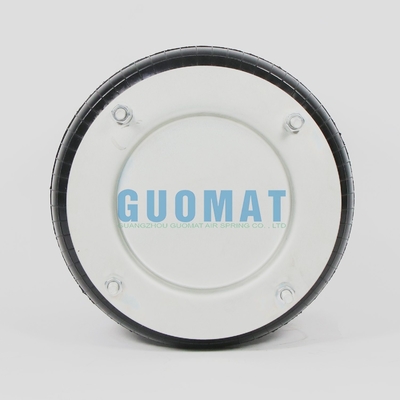

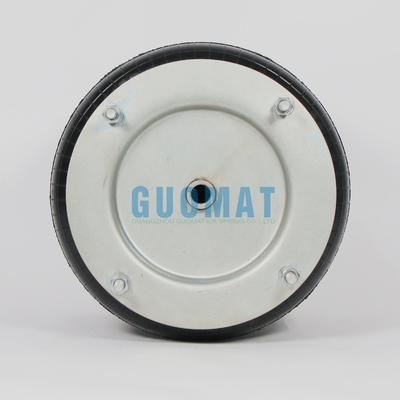

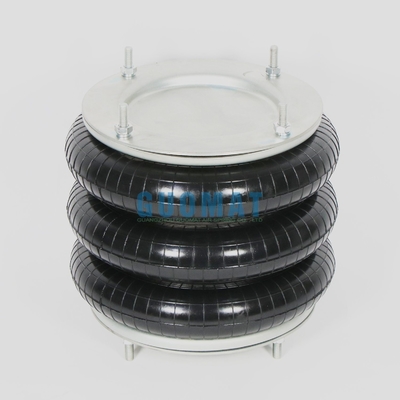

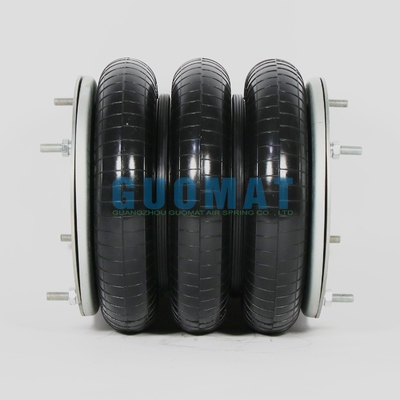

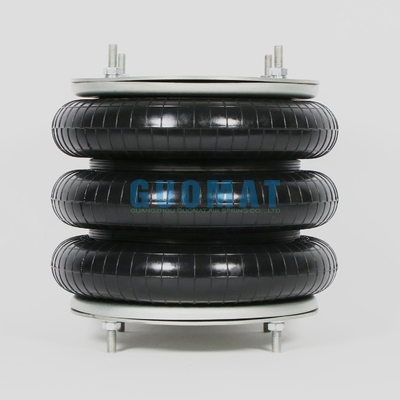

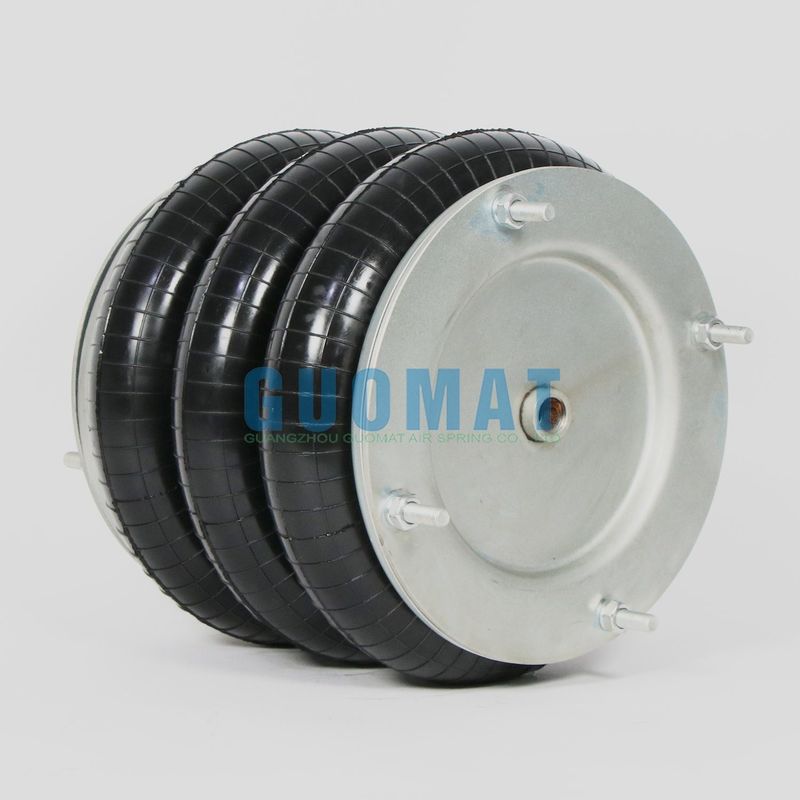

Brand-new Air Rubber Bellow Contitech FT 412-32 DS Triple Convoluted Air Spring

Air Spring Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

Product Details

Technical Data: 12x3 Convolution Air Spring
Cover plate diameter: 260mm
Bolt: 4pcsX M8
Gas hole: G1/2
The center of the threaded hole: 232mm
Design height: 350mm
Max height: 430mm
Min height: 100mm
Max outer diameter: 330mm

Product Application

GUOMAT industrial products are used in an array of industries ranging from air springs for agriculture equipment to anti-vibration solutions for commercial trailers. Some common industries AIRSUSTECH serves are

Commercial Truck & Trailer
Rail Applications
Agriculture
Construction and Mining
Actuators and Isolators

Triple Convoluted Air Shock Suspension

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×3		2 3/4''×3	SP2910	FT 22-6 DI		9109010
4 1/2''×3	W01R584035	4 1/2''×3	SP2895	FT 44-15 DI	PM/31043	9109402
4 1/2''×3-E
3B6×3T(AI)		6''×3(Al)	SP2923	FT 76-20 DS	PM/31063	9109007A
3B6×3T(Steel)	W01R584095	6''×3(Steel)	SP2861	FT 138-26 DS	M/31063	9109007
3B8×3T	W01R584056	8''×3	SP2863	FT 138-26 DS	M/31083	9109017
3B10×3T	W01R584059	10''×3	SP1539	FT 210-32 DS	M/31103	9109031
3B12×3T	W01R584062	12''×3	SP1542	FT 412-32 DS	M/31123	9109051
3B14 1/2''×3T	W01R584065	14 1/2''×3	SP1558	FT 614-36 DS	M/31143	9109069
3B16×3T	W01R584068	16''×3	SP2141	FT 816-40 DS	M/31163	9109177
