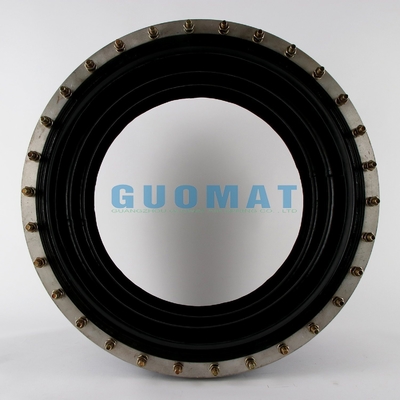

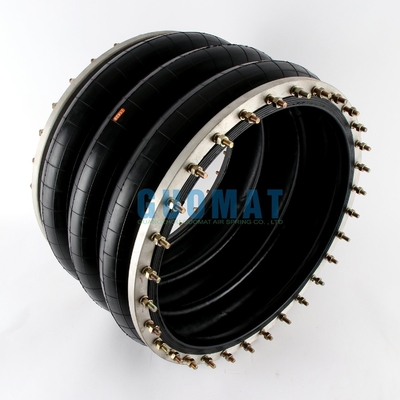

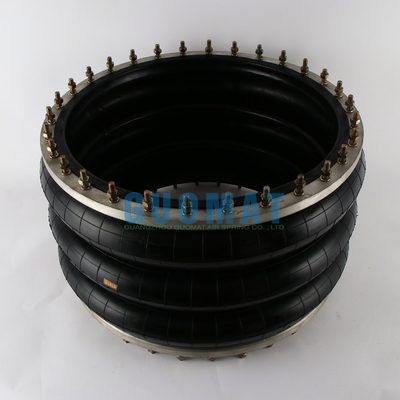

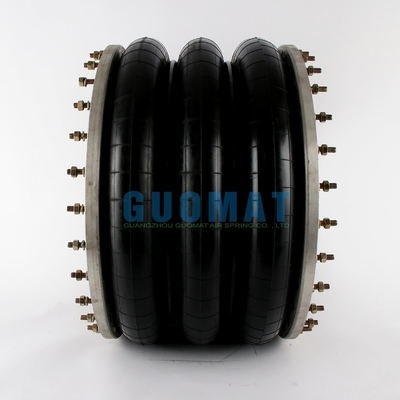

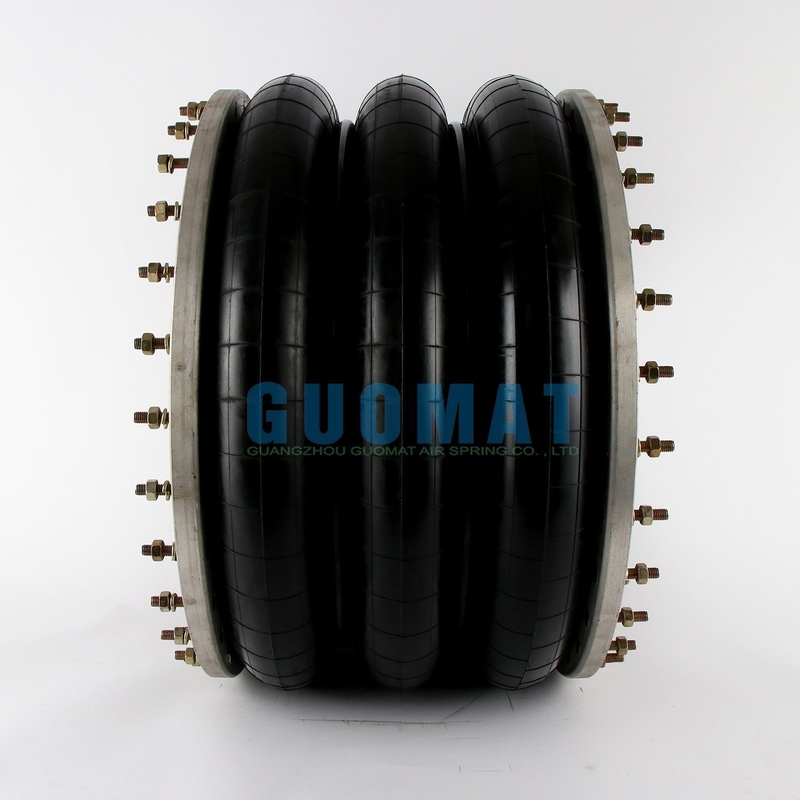

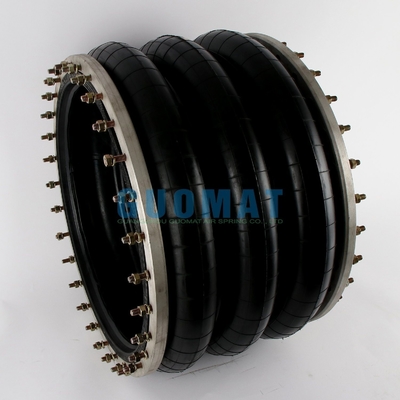

Original GUOMAT 3H630376 Triple Convoluted Air Spring For Industrial Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	3H630376

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	3H630376	Bellows Type:	Triple Convoluted
Supplier:	GUOMAT	Type Of Goods:	Air Spring/Air Bags/Air Ballons
Warranty Special:	12 Months	Screw Type:	32-M10
Max. Bellow Diameter:	720 MM	Design Height:	376 MM
Highlight:	3H630376 Triple Convoluted Air Spring , GUOMAT Triple Convoluted Air Spring

Original GUOMAT 3H630376 Triple Convoluted Air Spring for Industrial Equipment

Product Introduction

Air springs have been used in heavy duty vehicle suspension systems for nearly a century, where they have been able to provide usefulness by taking advantage of the compressed air required for vehicle braking systems. Air springs have provided a two-fold advantage over mechanical leaf- or coil-springs. One advantage with air suspension is the extra comfort provided by being able to vary the air pressure inside the spring, which changes the spring rate, and therefore, ride quality. Additionally, because variable control over air pressure adjusts the deck or trailer height, aligning loading docks to the level of the deck is possible when dock plates are unavailable.

3H630376 Industrial Air Spring Technical Data

Max. Rubber Bellows Width: 720 mm

Design Height: 376 mm

Stucture: Triple Convoluted

Compressed Height: 122 mm

Max. Expanded Height: 458 mm

Top Cover Plate Width: 642 mm

Bottom Cover Plate Width: 642 mm
Screw Type: 32×M10

Center to Center Distance: 605 mm

Packaging & Shipping

Packing Details
1. One piece in a poly bag.1piece in a carton.
2. Mark the product numbers and the QTY outside the carton.
3. As your requirement.

Shipping Details
1.Delivery time: Usually 2-8 working days after receiving the payment.
2.Shipping by Air,By Sea,By Express(DHL,UPS,FEDEX...)
3.Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

We Have Other Type Flange Connection Air Springs

Model	Pass Through	Minimal Compression	Elongation	The Working Stroke
3H680376	580	122	436	314
3H630037	580	122	436	314
3H580306	500	118	354	236
3H520312	400	122	360	238
3H480312	400	122	360	238
3H430370	330	122	430	308
3H400312	320	122	360	238
3H380316	300	122	370	248
3H360306	280	122	360	238
3H330306	250	120	354	234
3H310306	230	120	354	234
3H255322	200	118	400	282
3H255230	200	116	246	148
3H250260	185	116	299	183
