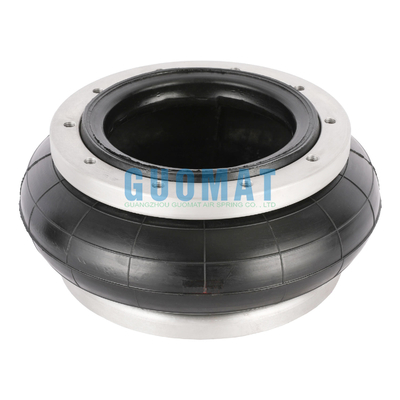

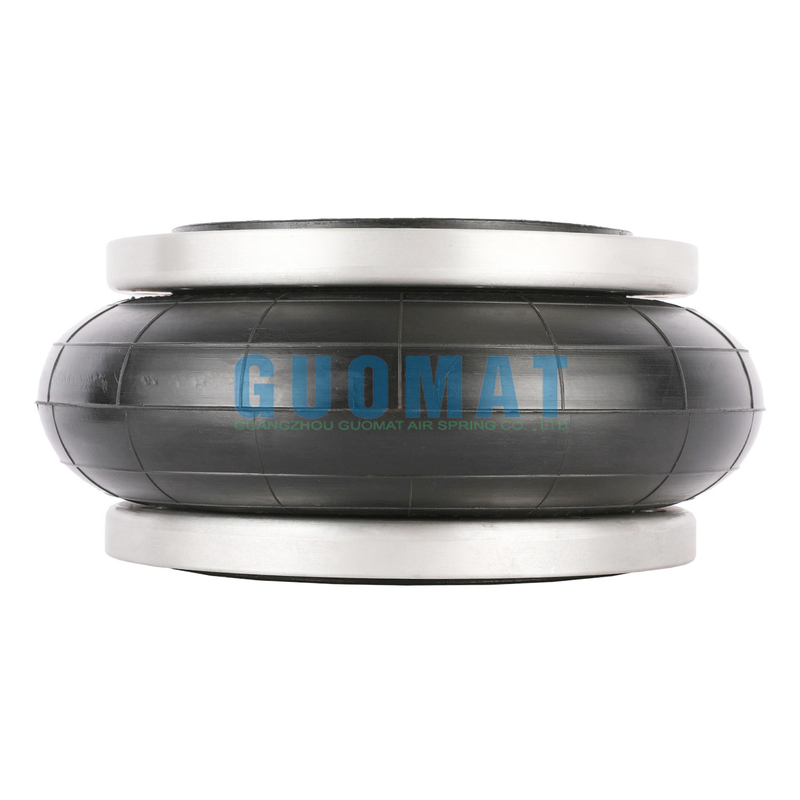

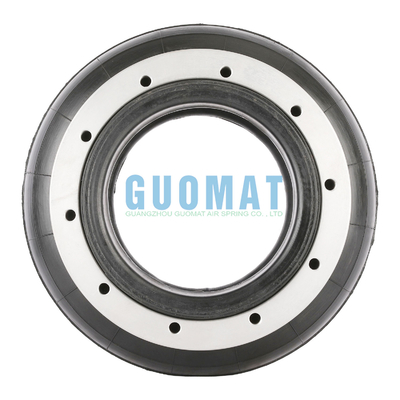

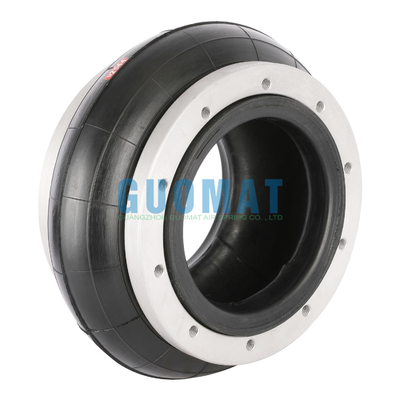

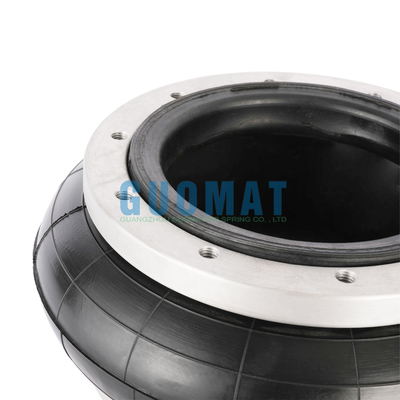

Original Guomat 1H320124 Single Convoluted Piston Air Spring With Flange Connection

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1H320124

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Carton/Cartons
Delivery Time:	5-8 Working Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1H320124	Function:	Reduce Shock
Condition:	Brand New	Transport Package:	Cartons
Trademark:	GUOMAT	Origin:	Guangzhou
After-sales Service:	1 Year	Type:	Gas-Filled
Highlight:	1H320124 Single Convoluted Piston Air Spring , Single Convoluted Piston Air Spring

Original Guomat 1H320124 Single Convoluted Piston Air Spring with Flange Connection

About Air Spring

Air spring is a shock absorbing device that uses air as an elastic medium, with good adjustability and comfort. Its working principle is to absorb external vibrations through the compression and expansion of air, thereby playing a role in shock absorption and buffering. Compared with traditional metal springs, air springs can provide more uniform elastic response and higher adaptability.

1H320124 Technical Data

Diameter	230mm
Minimum Compression	52mm
Extend	142mm
Full Stroke	90mm
Rubber Bellows Max Diameter	340mm (At 0.7Mpa)
Natural Height	124mm
Cover Plate Diameter	235mm

Flange Connection Air Spring Advantages

Significant shock absorption effect: It can effectively reduce equipment vibration and avoid equipment damage due to frequent vibration.
Strong adjustability: By adjusting the air pressure, the stiffness of the spring can be adjusted according to different working conditions to achieve the ideal shock absorption effect.
Extend equipment life: Reduce wear of mechanical parts, extend the service life of the equipment, and reduce maintenance costs.
Easy installation: The flange design makes the installation and removal of the air spring easier and suitable for different models and types of equipment.

1B Style Air Spring OEM Number

GUOMAT NO.	Cross References
1H5081	Torpress 89023 GART ARI.275 Pirelli Torpress 88540 Pirelli Torpress 88820 Pirelli Torpress 93079 Pirelli Torpress 89023
1K130070	Goodyear 1B5-500 Goodyear Rubber Bellows NO. 579-913-500 Air Lift 58218 Airkraft Style 1B120 ContiTech FS 50-5 CI 1/4 NPT ContiTech Order No. 61388 Enidine YI 1B5 500 Enidine YI-FS50-5-000 Firestone No. W02-358-5000 Firestone W01-358-7609 Firestone Bellows No. 16-ST Firestone No. W01-358-7001 Firestone Bellows No. 16 Firestone New Bellows No. 16B Numatics ASNS1111
1B53014	Contitech FS 530-14 Triangle AS-4442 W01-358-7103 FleetPride AS7103 Goodyear 1B14-350 Goodyear Flex No. 578913351 Taurus 6326 TRP AS71030 Peerless 0550-00015
1B7070	Contitech FS 70-7 Phoenix SP 1B 05 Bosch 8224 19002 Festo EB-165-65 Weforma WBE 200-E1 Firestone W01-M58-6155
1B8×4	Firestone W01-358-7564 Goodyear 1B8-550 Contitech FS120-10

Company Profile

Guangzhou Guomat Air Spring Co., Ltd. is founded in 2008, the company covers an area of 20000 square meters, registered capital is 10 million yuan, the existing various types of professional and technical personnel is 85 people.The company is located in Guangzhou, about 15min's drive from Baiyun Airport. and our main products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles' seat, luxurious car and industrial machine field.
