Flange Connection Double Convoluted Air Spring 2H250180 Natural Rubber Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2H250180

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2H250180	Material:	Natural Rubber
Structure:	Double Convoluted	Function:	Reduce Shock
Condition:	Brand New	Trademark:	GUOMAT
After-sales Service:	1 Year	Operation:	Gas-Filled
Highlight:	Double Convoluted Air Spring 2H250180 , Flange Connection Double Convoluted Air Spring

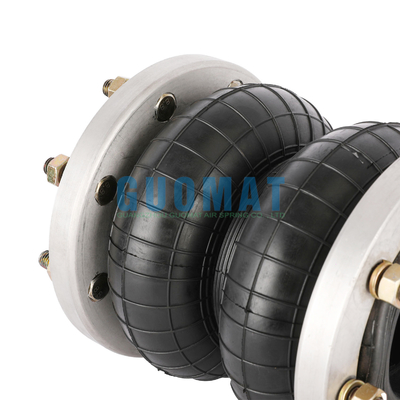

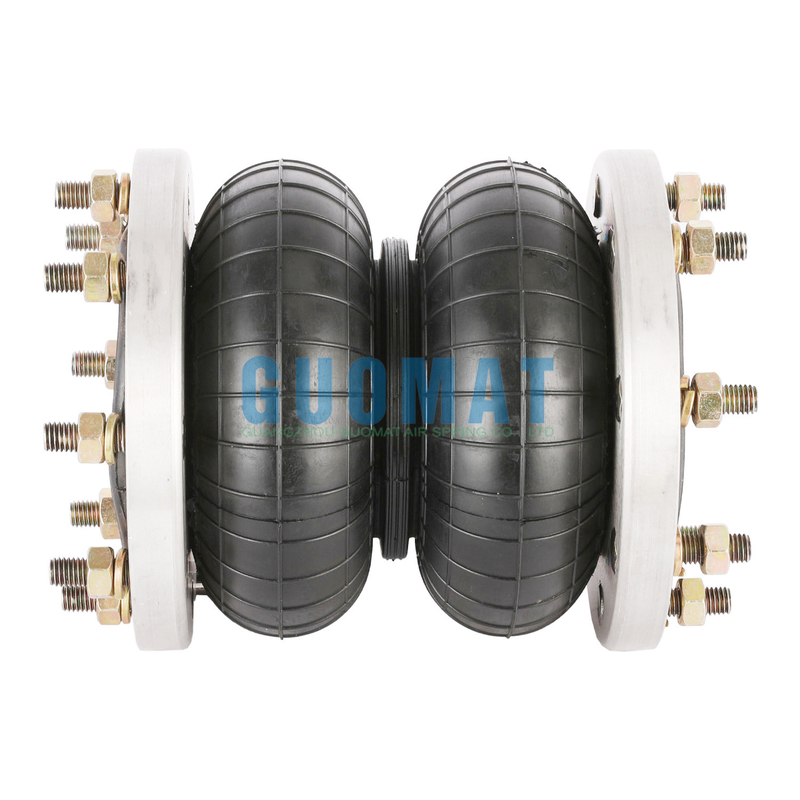

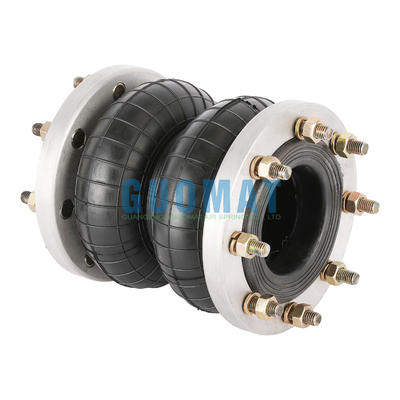

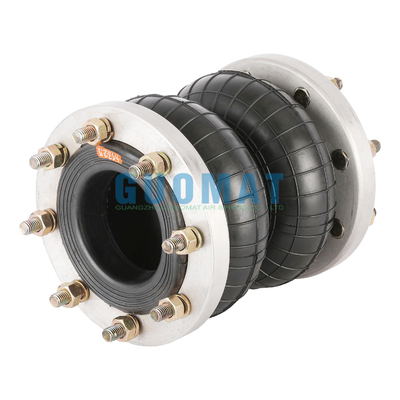

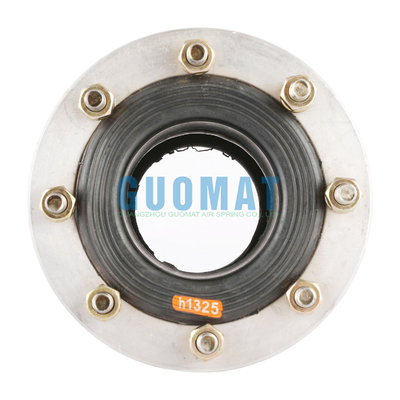

Flange Connection Double Convoluted Air Spring 2H250180 Natural Rubber Bellow

Description of Flange Air Spring

"Flange Connection" refers to the flange connection between the air spring and the vibration platform. This design is not only compact, but also easy to install and maintain. As a connection method, the flange can provide a more stable and reliable connection, ensuring that the air spring does not move or loosen during operation, thereby further improving the shock absorption effect.

Technical Data

Diameter: 185mm
Minimum Compression: 84mm
Extend: 206mm
Full Stroke: 122mm
Rubber Bellows Max Diameter: 270mm (At 0.7Mpa)
Natural Height: 180mm
Cover Plate Diameter: 183mm

Application in Micro Vibration Platform

On micro vibration platform, it is often necessary to avoid any form of vibration from interfering with precision instruments or measuring equipment. Micro vibration platform flange air spring can accurately control the propagation path of vibration, and slow down or isolate external vibration sources by adjusting air pressure. This is very important for laboratory research, semiconductor manufacturing, precision measurement and other fields.

How does it work?

The core principle of micro vibration platform flange air spring is to absorb vibration by using the elastic properties of compressed air. When external vibration is transmitted to the platform, the air in the air spring can be compressed or expanded, thereby alleviating the transmission of vibration. The design of the platform and flange connection ensures the stability of the air spring, which will not be disturbed by other forces and can work continuously and stably.

Otehr Double Convoluted Air Actuators with Flange Ring

GUOMAT NO.	Firestone	Dunlop Pneuride	Dunlop Springride	Contitech	Norgren	Parker
2 3/4''×2		2 3/4''×2	SP2904	FD 22-4 DI		9109009
2B4.5×2	W01R584051	4 1/2''×2	SP2441	FD 44-10 DI	PM/31042	9109401
2B4.5×2-E
2B6×2T(AI)	W01R584070	6''×(AI)	SP2917	FD 76-14 DI	PM/31062	9109001A
2B6×2T(Steel)	W01R584053	6''×2(Steel)	SP1482	FD 76-14 DS	M/31062	9109001
2B8×2T	W01R584055	8''×2	SP1490	FD 138-18 DS	M/31082	9109011
2B10×2T	W01R584058	10''×2	SP1538	FD 210-22 DS	M/31102	9109021
2B12×2T	W01R584061	12''×2	SP1541	FD 412-22 DS	M/31122	9109041
2B12''×2-E	W01R584039	12''×2 Extend	SP2782NB
2B14 1/2''×2T	W01R584064	14'' 1/2×2	SP1556	FD 614-26 DS	M/31142	9109061
2B16×2T	W01R584067	16''×2	SP1557	FD 816-30 DS	M/31162	9109171
2B21 1/2''×2T		21 1/2''×2	SP1408		M/31212	9109153
2B26''×2T		26''×2	SP2342		M/31262	9109159
