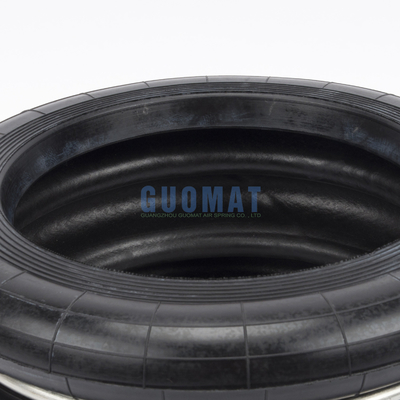

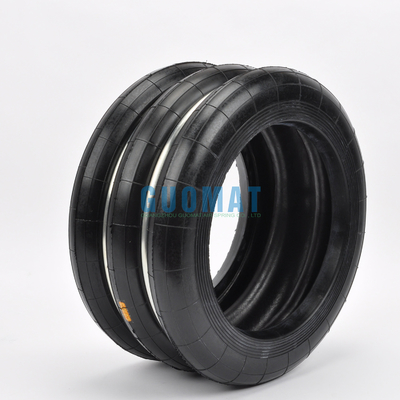

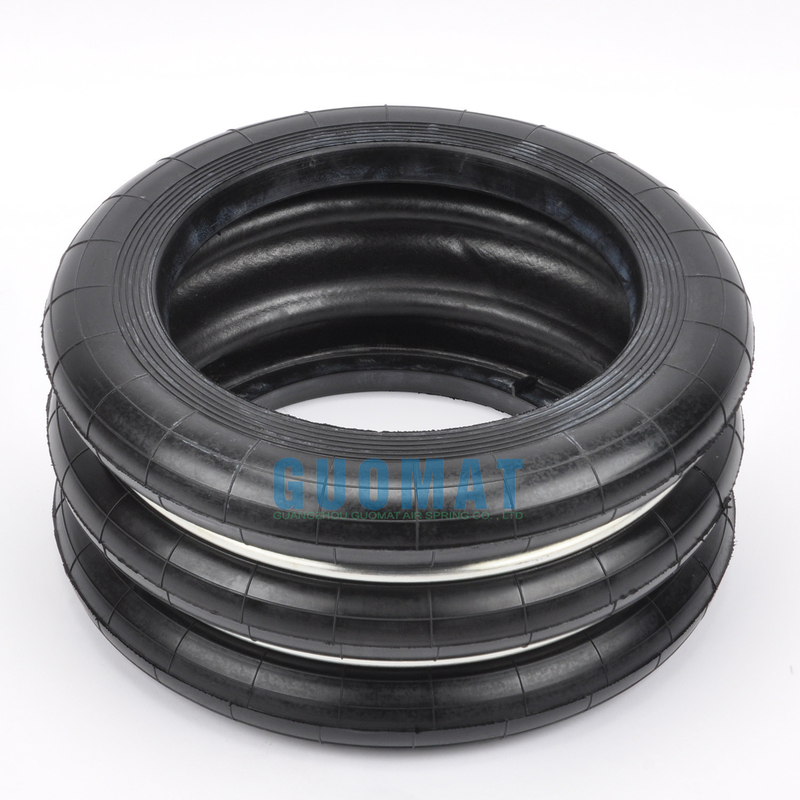

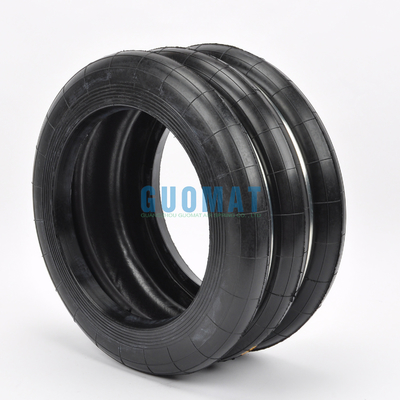

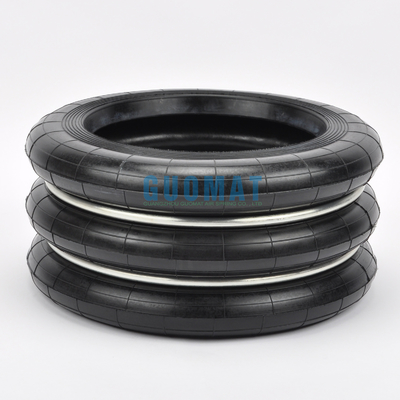

Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-350-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-350-3	Warranty:	One Year
Design High:	160 Mm	Stroke:	130 Mm
Max Diameter:	410 Mm	Transport Package:	Cartons
Trademark:	GUOMAT	Material:	Natural Rubber
Highlight:	160Mm High Rubber Air Spring , S-350-3 Yokohama Rubber Air Spring

Yokohama Rubber Bellows Only S-350-3 Max. Height 250MM Triple Convoluted Air Bag

F-350-3 Air Spring Introduction

Suspension Air Springs are high-performance air shocks designed for superior quality, durability, and load capacity across various vehicles. Made from premium rubber and steel, they perform reliably in extreme temperatures from -40℃ to +70℃. These air springs provide excellent shock absorption and stability, ensuring a safer, smoother ride. Easy to install and low-maintenance, they are a practical and cost-effective solution for enhancing vehicle suspension systems.

F-350-3 Air Bellow Specification

GUOMAT NO.	Yokohama Reference No.	Hight H(mm)			The Largest Diameter When Compressed(mm)
GUOMAT NO.	Yokohama Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	The Largest Diameter When Compressed(mm)
F-350-1	S-350-1	72	117	40	450
F-350-2	S-350-2	102	160	55	410
F-350-3	S-350-3	160	250	85	410
F-350-4	S-350-4	218	336	118	410
F-300-1	S-300-1	72	117	40	400
F-300-2	S-300-2	98	158	53	360

Product Core Competitiveness

1. Imported rubber
It is smelted with advanced sol technology, which improves the acid resistance, corrosion resistance and longer life of the product.

2. One-piece casting process
Adopt one-piece casting process, durable, strong air tightness, anti-leakage, high density of skin, anti-burst.

3. Ensure in-situ installation
The shape and size are the same as the original, directly replace the original air spring, no need to change, easy to install.

4. Using high-quality steel
Made of high-quality steel, anti-fracture, corrosion-resistant, long service life.

GUOMAT Has Punch Press Air Spring

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	S600-1	F-240-4	S-240-4R	S240-4
F-600-2	S-600-2R	S600-2	F-240-3	S-240-3R	S240-3
F-600-3	S-600-3R	S600-3	F-240-2	S-240-2R	S240-2
F-600-4	S-600-4R	S600-4	F-240-1	S-240-1R	S240-1
F-600-5	S-600-5R	S600-5	F-220-4	S-220-4R	S220-4
F-550-2	S-550-2R	S550-2	F-220-3	S-220-3R	S220-3
F-550-3	S-550-3R	S550-3	F-220-2	S-220-2R	S220-2
F-500-2	S-500-2R	S500-2	F-200-2	S-200-2R	S200-2
F-500-3	S-500-3R	S500-3	F-200-3	S-200-3R	S200-3
F-500-4	S-500-4R	S500-4	F-200-4	S-200-4R	S200-4
F-500-5	S-500-5R	S500-5	F-160-1	S-160-1R	S160-1
F-450-1	S-450-1R	S450-1	F-160-2	S-160-2R	S160-2
F-450-2	S-450-2R	S450-2	F-160-3	S-160-3R	S160-3
F-450-3	S-450-3R	S450-3	F-160-4	S-160-4R	S160-4
F-450-4	S-450-4R	S450-4	F-120-4	S-120-4R	S120-4
F-450-5	S-450-5R	S450-5	F-120-3	S-120-3R	S120-3
F-400-2	S-400-2R	S400-2	F-120-2	S-120-2R	S120-2
F-400-3	S-400-3R	S400-3	F-100-4	S-100-4R	S100-4
F-400-4	S-400-4R	S400-4	F-90-3	S-90-3R	S90-3
F-400-5	S-400-5R	S400-5	F-90-2	S-90-2R	S90-2
F-350-1	S-350-1R	S350-1	F-90-1	S-90-1R	S90-1
F-350-2	S-350-2R	S350-2	F-300-1	S-300-1R	S300-1
F-350-3	S-350-3R	S350-3	F-300-2	S-300-2R	S300-2
F-350-4	S-350-4R	S350-4	F-300-3	S-300-3R	S300-3
			F-300-4	S-300-4R	S300-4
