Hydraulic Punch Press Air Bellows Only S-200-2R Double Type Air Spring with Hoop
F-200-2 Air Spring Detailed Data
| GUOMAT NO. |
Reference No. |
Hight H(mm) |
Commonly Maximum Stroke(mm) |
The Largest Diameter When Compressed(mm) |
| Design High(mm) |
Maximum High(mm) |
Minimum Height(mm) |
| F-200-2 |
S-200-2 |
98 |
148 |
53 |
±35 |
260 |
| F-200-3 |
S-200-3 |
152 |
232 |
82 |
±53 |
260 |
| F-200-4 |
S-200-4 |
206 |
311 |
111 |
±70 |
260 |
GUOMAT Air Spring Advantages
The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.
1. The products features low cost, wide use and easy operation.
2. It achieves long service life, and requires no maintenance and lubrication.
3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.
4. It comes with no friction and soft medium.
Air Spring Features
- Frictionless operation
- No maintenance or lubrication
- Ideal for short stroke, high-force applications
- High vibration isolation level
- Easy, compact installation
GUOMAT Has Punch Press Air Spring Cushion
Japan Yokohama Rubber Air Spring Cushion Have The Following Specifications And Models:
S-300-1R, S-300-2R, S-300-3R, S-300- 4R, S-350-1R, S-350-2R, S-350-3R, S-350-4R, S-400-2R, S-400-3R, S-400-4R, S-400-5R S-450-1R, 2R, 3R, 4R, S-500-2R, 3R, 4R, Guangzhou GUOMAT, S-500-5R, S-550-2R, S-550-2R, S-550-3R S -600-1R, 2R, 3R, 4R, 5R, S-730-1R, 2R, 3R, 4R, 5R, 6R, S-50-2R, S-50-3R, S-60-2R, S-60 -3R, S-60-4R, S-90-3R, S-100-2R, S-100-3R, S-100-4R, S-120-2R, S-120-3R, S-120-4R , S-120-4R, S-160-1R, 2R, 3R, S-160-4R, S-200-2R, S-200-3R, S-200-4R, S-200-4R, S-220 -2R, S-220-3R, S-220-4R, S-240-1R, S-240-2R, S-240-3R, S-240-4R
Bmw Station Si / Springride (Spratt), Taiwan Ysair Airbag / Air Cushion Specifications Are As Follows:
YS-65-1, YS-115-1 , YS-115-2, YS-130-1, YS-130-2, YS-160-1, YS-160-2, YS-210-1, YS-210-2, YS-250-1, YS -250-2, YS-280-1, YS-280-2, YS-320-1, YS-320-2, YS-320-3, YS-335-1, YS-335-2, YS-335 -3, YS-405-1, Y-S405-2, YS-405-3, YS-460-1, YS-460-2, YS-460-3, YS-510-1, YS-510-2 , YS-510-3, YS-560-1, YS-560-2, YS-560-3, YS-610-1, YS-610-2, YS-610-3, YS-660-1, YS -660-2, YS-660-3, YS-710-1, YS-710-2, YS-710-3

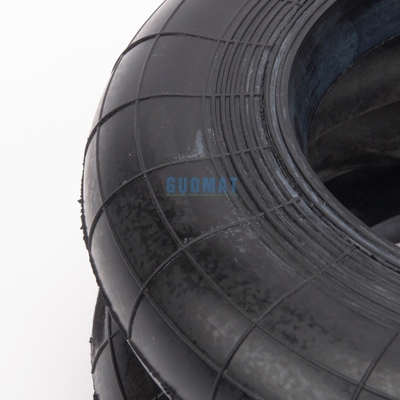

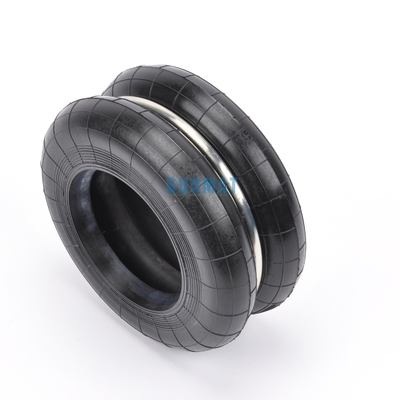

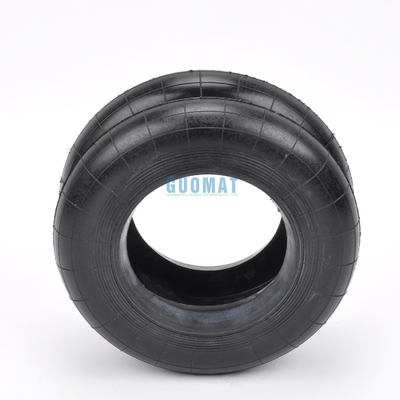

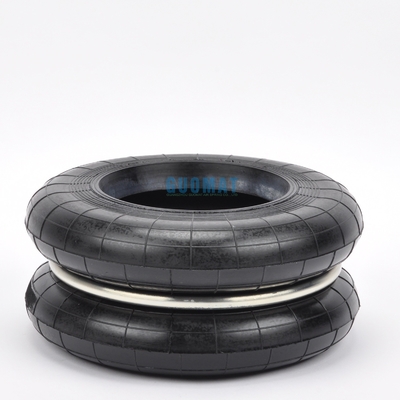

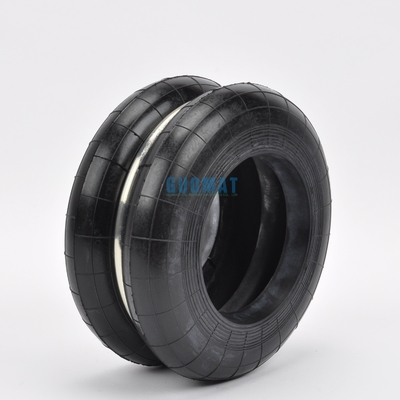

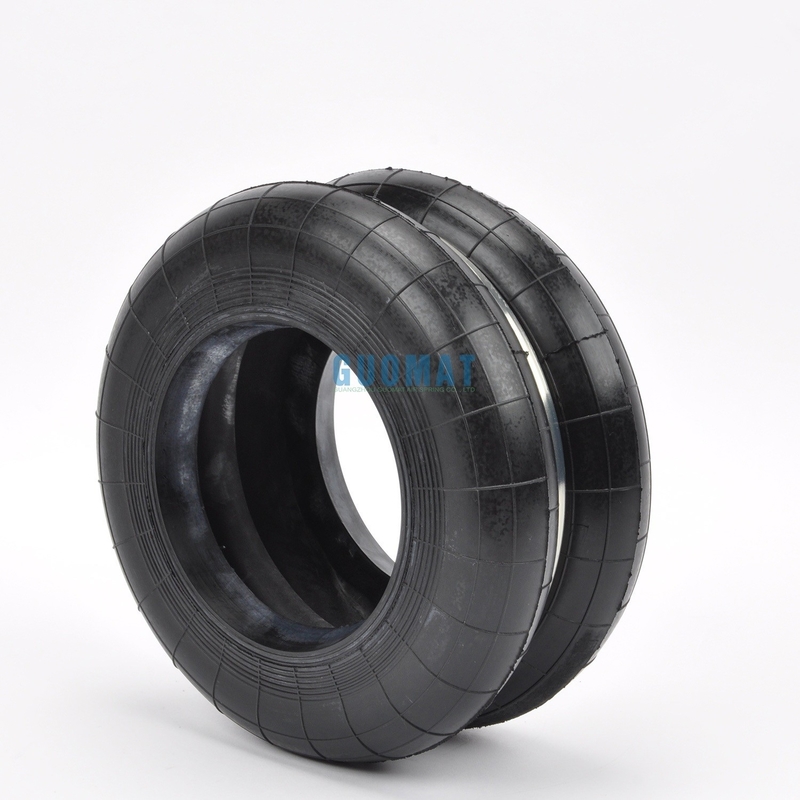

Air Spring Detailed Photos
