Yokohama S-160-2R Suspension Air Spring for Small Punch and Paper Manufacturing

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-160-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model Number:	F-160-2	Warranty:	One Year
Design High:	98 Mm	Stroke:	70 Mm
Max Diameter:	220 Mm	Transport Package:	Cartons
Material:	Rubber	Sample:	Available \| Customized Request
Highlight:	Yokohama S-160-2R Suspension Air Spring , Rubber Suspension Air Spring

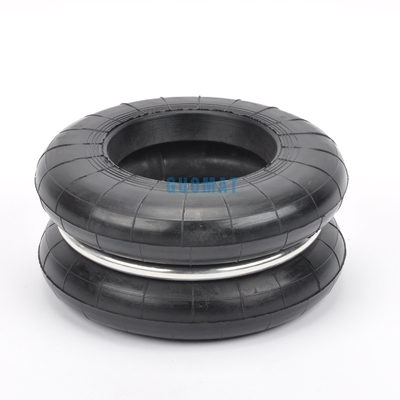

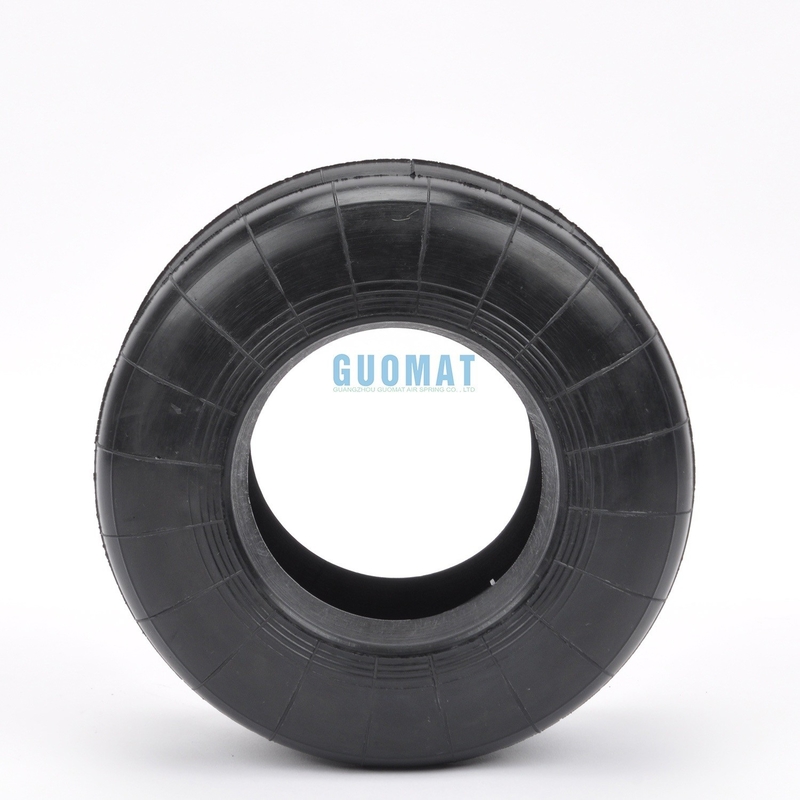

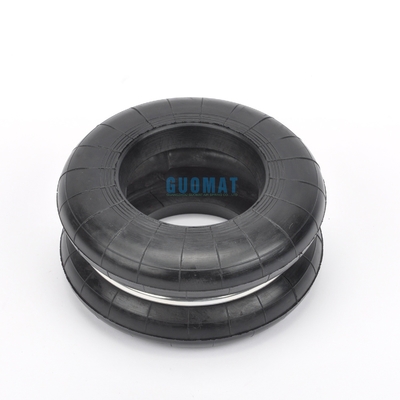

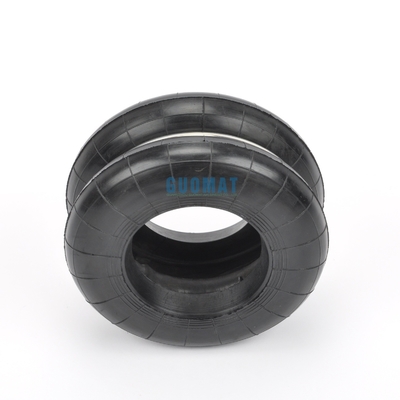

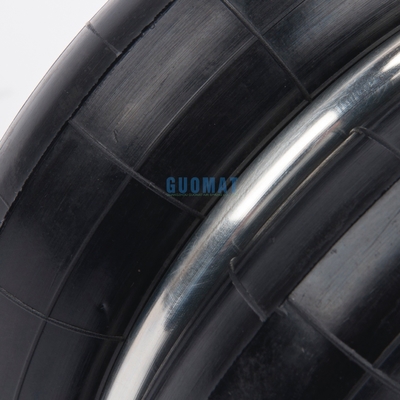

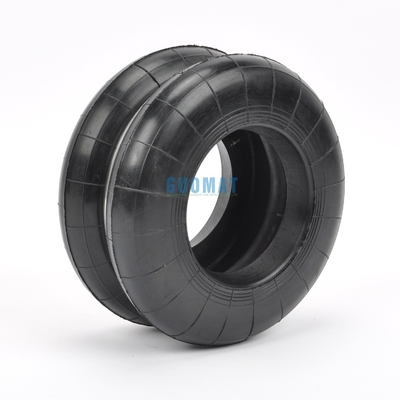

Yokohama S-160-2R Suspension Air Spring for Small Punch and Paper Manufacturing

F-160-2 Air Spring Introduction

Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.

F-160-2 Air Spring Specifications

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-160-1	S-160-1	72	102	40	±25	220
F-160-2	S-160-2	98	148	53	±35	220
F-160-3	S-160-3	152	227	82	±53	220
F-160-4	S-160-4	206	306	111	±70	220

Product Applications

Papermaking equipment
Scissor lift
Mechanical Hopper vibration and damping handling stop
Direct force
Platform lift
Short stroke mechanical linkage
Hot foil stamping press
Impact absorbtion
Roller tensioning
Quick lock device
Reel tensioning
Machine isolation

GUOMAT Has Punch Press Air Spring Cushion

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	F-600-R1	600-1r	F-240-4	F-240-R4	240-4r
F-600-2	F-600-R2	600-2r	F-240-3	F-240-R3	240-3r
F-600-3	F-600-R3	600-3r	F-240-2	F-240-R2	240-2r
F-600-4	F-600-R4	600-4r	F-240-1	F-240-R1	240-1r
F-600-5	F-600-R5	600-5r	F-220-4	F-220-R4	220-4r
F-550-2	F-550-R2	550-2r	F-220-3	F-220-R3	220-3r
F-550-3	F-550-R3	550-3r	F-220-2	F-220-R2	220-2r
F-500-2	F-500-R2	500-2r	F-200-2	F-200-R2	200-2r
F-500-3	F-500-R3	500-3r	F-200-3	F-200-R3	200-3r
F-500-4	F-500-R4	500-4r	F-200-4	F-200-R4	200-4r
F-500-5	F-500-R5	500-5r	F-160-1	F-160-R1	160-1r
F-450-1	F-450-R1	450-1r	F-160-2	F-160-R2	160-2r
F-450-2	F-450-R2	450-2r	F-160-3	F-160-R3	160-3r
F-450-3	F-450-R3	450-3r	F-160-4	F-160-R4	160-4r
F-450-4	F-450-R4	450-4r	F-120-4	F-120-R4	120-4r
F-450-5	F-450-R5	450-5r	F-120-3	F-120-R3	120-3r
F-400-2	F-400-R2	400-2r	F-120-2	F-120-R2	120-2r
F-400-3	F-400-R3	400-3r	F-100-4	F-100-R4	100-4r
F-400-4	F-400-R4	400-4r	F-90-3	F-90-R3	90-3r
F-400-5	F-400-R5	400-5r	F-90-2	F-90-R2	90-2r
F-350-1	F-350-R1	350-1r	F-90-1	F-90-R1	90-1r
F-350-2	F-350-R2	350-2r	F-300-1	F-300-R1	300-1r
F-350-3	F-350-R3	350-3r	F-300-2	F-300-R2	300-2r
F-350-4	F-350-R4	350-4r	F-300-3	F-300-R3	300-3r
			F-300-4	F-300-R4	300-4r
