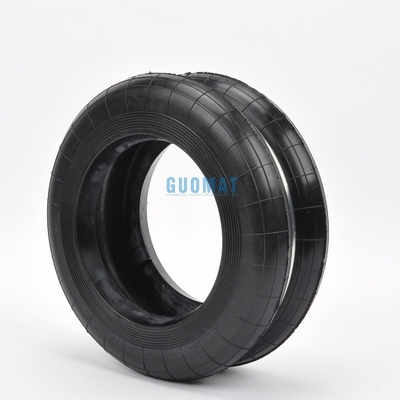

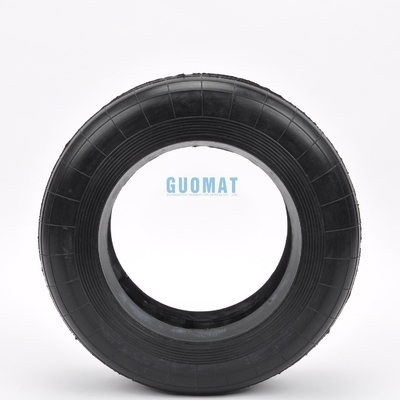

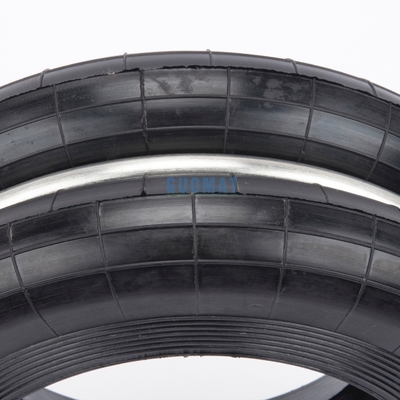

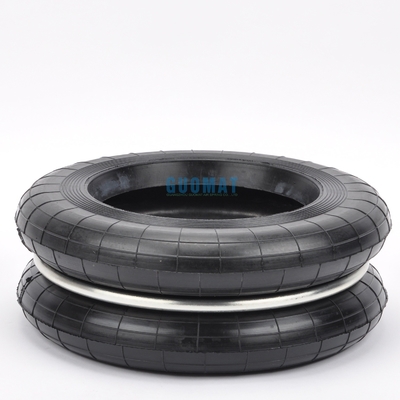

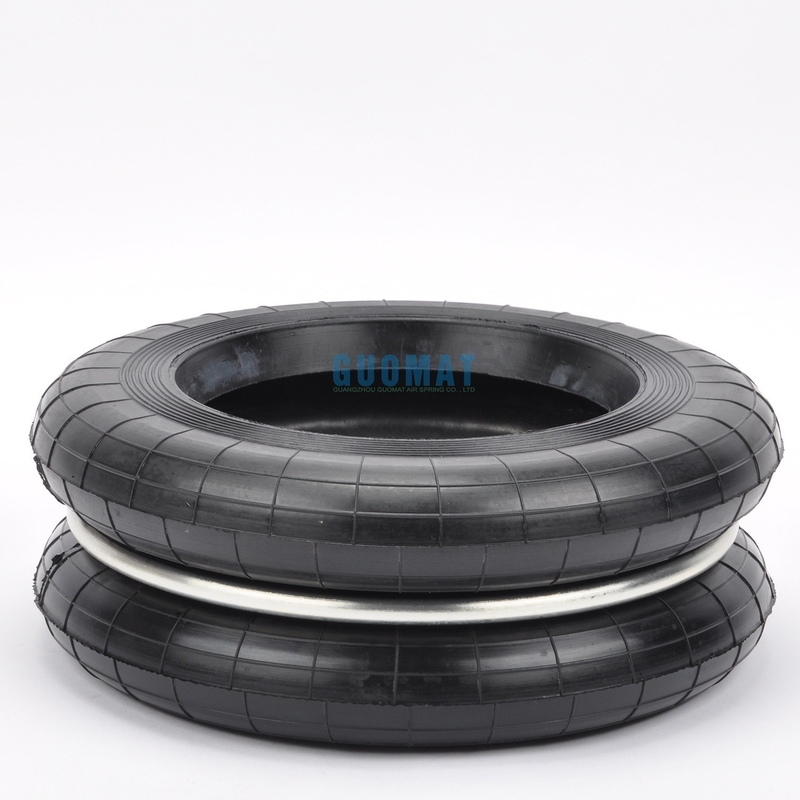

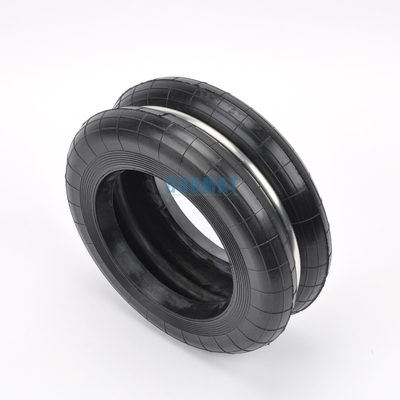

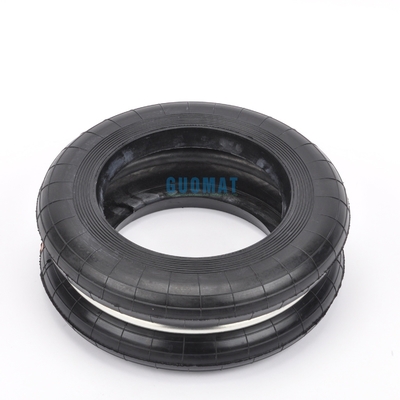

Suspension Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-240-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-240-2	Warranty:	One Year
Design High:	98 Mm	Minimum Height:	53 Mm
Stroke:	80 Mm	Max Diameter:	300 Mm
Customization:	Available \| Customized Request	Yokohama:	S-240-2R
Highlight:	S-240-2R Double Convoluted Air Spring , F-240-2 Double Convoluted Air Spring

Suspension Air Bellow F-240-2 Cross Yokohama S-240-2R Double Convoluted Air Spring

F-240-2 Detailed Parameter

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
		Design High(mm)	Maximum High(mm)	Minimum Height(mm)
F-240-2	S-240-2	98	148	53	±40	300

GUOMAT NO.	Reference No.	Standard Height,Internal Pressure 0.49 M pa When The General Value					Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
GUOMAT NO.	Reference No.	Effective Area (Cm2)	Volume(L)	Load (K n)	Dynamic Spring Parameters (N/Min)	Vibration Frequency (Hz)	Using Maximum Internal Pressure (M pa)	Internal Pressure (M pa)
F-240-2	S-240-2	450	4.4	22.2	520	2.4	0.88	2.9-3.9

Applications

Pulp and paper industry
Lumber mills
Lift tables
Tooling and machining system
Energy production
Tooling robotics and automation
Component assembly
Automotive assembly
Medical equipment
Conveyor systems
Packaging

GUOMAT Has Air Shock Absorber Part NO. Below

GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.	GUOMAT Part NO.	Japan YOKOHAMA Reference No.	Japan YOKOHAMA Reference No.
F-600-1	S-600-1R	F-600-r1	F-240-4	S-240-4R	F-240-r4
F-600-2	S-600-2R	F-600-r2	F-240-3	S-240-3R	F-240-r3
F-600-3	S-600-3R	F-600-r3	F-240-2	S-240-2R	F-240-r2
F-600-4	S-600-4R	F-600-r4	F-240-1	S-240-1R	F-240-r1
F-600-5	S-600-5R	F-600-r5	F-220-4	S-220-4R	F-220-r4
F-550-2	S-550-2R	F-550-r2	F-220-3	S-220-3R	F-220-r3
F-550-3	S-550-3R	F-550-r3	F-220-2	S-220-2R	F-220-r2
F-500-2	S-500-2R	F-500-r2	F-200-2	S-200-2R	F-200-r2
F-500-3	S-500-3R	F-500-r3	F-200-3	S-200-3R	F-200-r3
F-500-4	S-500-4R	F-500-r4	F-200-4	S-200-4R	F-200-r4
F-500-5	S-500-5R	F-500-r5	F-160-1	S-160-1R	F-160-r1
F-450-1	S-450-1R	F-450-r1	F-160-2	S-160-2R	F-160-r2
F-450-2	S-450-2R	F-450-r2	F-160-3	S-160-3R	F-160-r3
F-450-3	S-450-3R	F-450-r3	F-160-4	S-160-4R	F-160-r4
F-450-4	S-450-4R	F-450-r4	F-120-4	S-120-4R	F-120-r4
F-450-5	S-450-5R	F-450-r5	F-120-3	S-120-3R	F-120-r3
F-400-2	S-400-2R	F-400-r2	F-120-2	S-120-2R	F-120-r2
F-400-3	S-400-3R	F-400-r3	F-100-4	S-100-4R	F-100-r4
F-400-4	S-400-4R	F-400-r4	F-90-3	S-90-3R	F-90-r3
F-400-5	S-400-5R	F-400-r5	F-90-2	S-90-2R	F-90-r2
F-350-1	S-350-1R	F-350-r1	F-90-1	S-90-1R	F-90-r1
F-350-2	S-350-2R	F-350-r2	F-300-1	S-300-1R	F-300-r1
F-350-3	S-350-3R	F-350-r3	F-300-2	S-300-2R	F-300-r2
F-350-4	S-350-4R	F-350-r4	F-300-3	S-300-3R	F-300-r3
			F-300-4	S-300-4R	F-300-r4
