Speed Punch Cushion Air Spring S-240-2R Yokohama Double Convoluted Rubber Bellows

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-240-2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-240-2	Structure:	Double Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
Yokohama:	S-240-2R	Trademark:	GUOMAT
Origin:	Guangzhou, China	Warranty:	12 Months
Highlight:	Yokohama Double Convoluted Rubber Bellows , Double Convoluted Rubber Bellows

Speed Punch Cushion Air Spring S-240-2R Yokohama Double Convoluted Rubber Bellows

F-240-2 Specifications

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-240-4	S-240-4	206	316	111	±80	300
F-240-3	S-240-3	152	232	82	±60	300
F-240-2	S-240-2	98	148	53	±40	300
F-240-1	S-240-1	72	110	40	±30	340

Cross Reference

Yokohama S-240-2R

Yokohama S 240 2R

Yokohama S-240-2

Yokohama S 240 2

Yokohama S240-2

Features of Rubber Air Bags

1. Long service life. The self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.

2. Maintenance is very simple. There is no friction and sliding part, so no lubricating oil is required.

3. The installation height can be reduced. Compared with other springs, the installation height can be reduced, which effectively increases the stroke.

4. The spring parameters with elasticity and softness can be obtained, with large load and elasticity and excellent vibration resistance.

5. The output of the bearing capacity is variable, and the bearing capacity can be changed within a wide range by changing the internal pressure.

6. The height can be controlled. If used in conjunction with the height adjustment valve, a constant height can be maintained for different loads.

7. It has a damping effect. If used in conjunction with the auxiliary air chamber and the throttle valve, an excellent damping effect can be obtained, thereby reducing the resonance amplitude.

Other Types of Punch Feeder Air Suspensions

Model NO.	OEM NO.
F-350-4/S-200-3	YOKOHAMA S-350-4/S-200-3/S-100-3/S-90-3
F-240-4R	YOKOHAMA S-240-4R
M-120-2	YOKOHAMA S-120-3R
MB-90-3	MB-90-3
4B4001	100, 4B400
F-350-3	YOKOHAMA S-350-3R
F-120-2	YOKOHAMA S-120-2R
F-120-3	YOKOHAMA S-120-3R
F-100-3	YOKOHAMA S-100-3R
F-100-2	YOKOHAMA S-100-2R
F-200-2	YOKOHAMA S-200-2R
F-240-3	YOKOHAMA S-240-3R
F-450-4	YOKOHAMA S-450-4R
F-200-3	YOKOHAMA S-200-3R
F-160-4	YOKOHAMA S-160-4R
F-160-3	YOKOHAMA S-160-3R
F-160-2	YOKOHAMA S-160-2R
F-240-2	YOKOHAMA S-240-2R
F-300-3	YOKOHAMA S-300-3R
F-300-4	YOKOHAMA S-300-4R
F-350-2	YOKOHAMA S-350-2R
F-400-3	YOKOHAMA S-400-3R
F-400-4	YOKOHAMA S-400-4R
F-400-5	YOKOHAMA S-400-5R
F-450-3	YOKOHAMA S-450-3R
F-450-4	YOKOHAMA S-450-4R
F-500-2	YOKOHAMA S-500-2R
F-500-3	YOKOHAMA S-500-3R
F-500-4	YOKOHAMA S-500-4R
F-500-5	YOKOHAMA S-500-5R
F-600-4	YOKOHAMA S-600-4R
F-600-5	YOKOHAMA S-600-5R

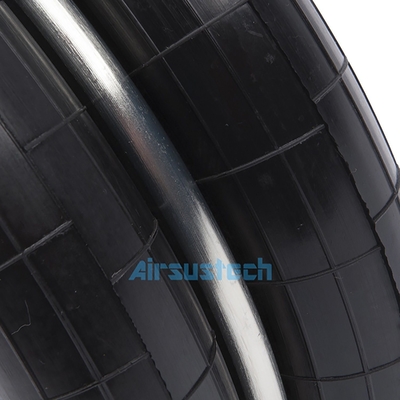

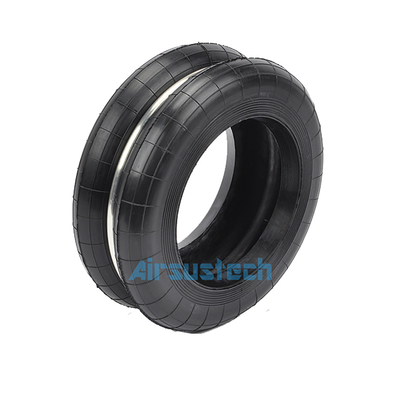

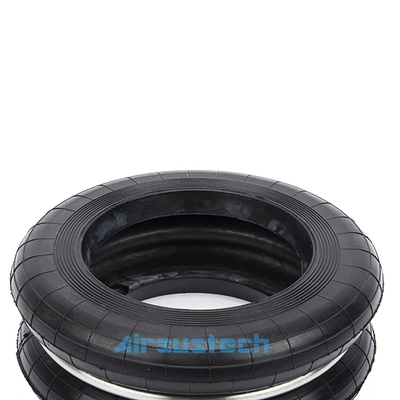

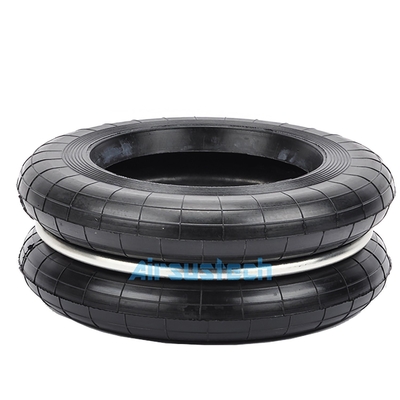

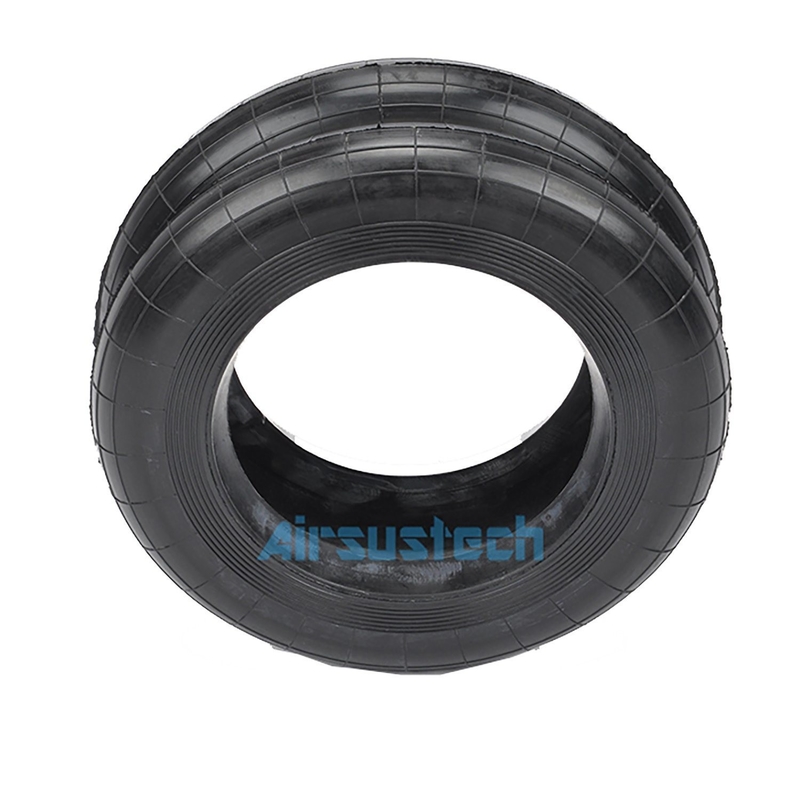

The Related Pictures of F-240-2

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
