Triple Natural Rubber Yokohama S-400-3R Air Spring for Hydraulic Punch Press

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-400-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-400-3	Structure:	Triple Cylinder
Fuction:	Reduce Shock	Yokohama:	S-400-3R
Trademark:	GUOMAT	Warranty:	12 Months
Working Temperature:	-40℃+70℃	Vibration Frequency:	2.7 Hz
Highlight:	Triple Natural Rubber Air Spring , Hydraulic Punch Press Air Spring

Triple Natural Rubber Yokohama S-400-3R Air Spring for Hydraulic Punch Press

F-400-3 Air Spring Introduction

F-400-3 air suspensions are suitable for presses, punching machines, mechanical punches, pneumatic punches, hydraulic punches, high-speed mechanical punches, high-frequency punches, CNC punches, ordinary mechanical punches, manual punches, screw punches, rack punches, connecting rod punches, cam punches, papermaking equipment, papermaking production lines, paper equipment, etc.

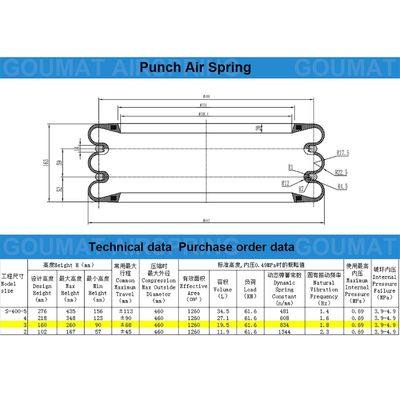

F-400-3 Detailed Datas

Height H(mm)

Design Height: 160mm

Max. Height: 260mm

Min Height: 90mm

Common Maximum Travel(mm): ±68mm

Compression Max. Outside Diameter (mm): 460mm

Standard height, approximate value at 0.49MPA internal pressure

Efective Area(cm²): 1260

Volume(L): 19.5

Load (KN):61.6

Dynamic Spring Constant(n/mm): 834

Natural Vibration Frequence(Hz): 1.8

Maximum Internal Pressure (MPA): 0.69

Internal Pressure Failure(MPA): 3.9-4.9

OEM Cross reference:

AIRSUSTECH Part No.: F-400-3

YOKOHAMA S-400-3R

YOKOHAMA S 400 3R

YOKOHAMA S-400-3

YOKOHAMA S 400 3

YOKOHAMA S400-3R

YOKOHAMA S400-3

Other Types Of Punch Air Spring/Pneumatic Parts/Air Bellows/Air Bag/Air Ballon

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-600-1	S-600-1	72	122	40	±30	700
F-600-2	S-600-2	102	172	57	±45	660
F-600-3	S-600-3	160	270	90	±68	660
F-600-4	S-600-4	218	363	123	±90	660
F-600-5	S-600-5	276	456	156	±113	660
F-550-2	S-550-2	102	172	50	±45	610
F-550-3	S-550-3	160	270	90	±68	610
F-500-2	S-500-2	102	172	57	±45	560
F-500-3	S-500-3	160	270	90	±68	560
F-500-4	S-500-4	218	363	123	±90	560
F-500-5	S-500-5	276	456	156	±113	560
F-450-1	S-450-1	72	117	40	±30	510
F-450-2	S-450-2	102	172	57	±45	510
F-450-3	S-450-3	160	270	90	±68	510
F-450-4	S-450-4	218	363	123	±90	510
F-450-5	S-450-5	276	456	156	±113	510
F-400-2	S-400-2	102	167	57	±45	460
F-400-4	S-400-4	218	348	123	±90	460
F-400-5	S-400-5	276	435	156	±113	460
F-350-1	S-350-1	72	117	40	±30	450
F-350-2	S-350-2	102	160	55	±42	410
F-350-3	S-350-3	160	250	85	±65	410
F-350-4	S-350-4	218	336	118	±85	410
F-300-1	S-300-1	72	117	40	±30	400
F-300-2	S-300-2	98	158	53	±40	360
F-300-3	S-300-3	152	242	82	±60	360
F-300-4	S-300-4	206	326	111	±80	360
F-240-4	S-240-4	206	316	111	±80	300
F-240-3	S-240-3	152	232	82	±60	300
F-240-2	S-240-2	98	148	53	±40	300
F-240-1	S-240-1	72	110	40	±30	340
F-220-4	S-220-4	206	311	111	±80	280
F-220-3	S-220-3	152	232	82	±60	280
F-220-2	S-220-2	98	148	53	±40	280
F-200-2	S-200-2	98	148	53	±35	260
F-200-3	S-200-3	152	232	82	±53	260
F-200-4	S-200-4	206	311	111	±70	260
F-160-1	S-160-1	72	102	40	±25	220
F-160-2	S-160-2	98	148	53	±35	220
F-160-3	S-160-3	152	227	82	±53	220
F-160-4	S-160-4	206	306	111	±70	220
F-120-4	S-120-4	206	306	111	±70	180
F-120-3	S-120-3	152	227	82	±53	180
F-120-2	S-120-2	98	148	53	±35	180
F-100-4	S-100-4	206	296	121	±60	160
F-90-3	S-90-3	152	222	87	±45	160
F-90-2	S-90-2	98	143	58	±30	160
F-90-1	S-90-1	76	106	46	±30	125

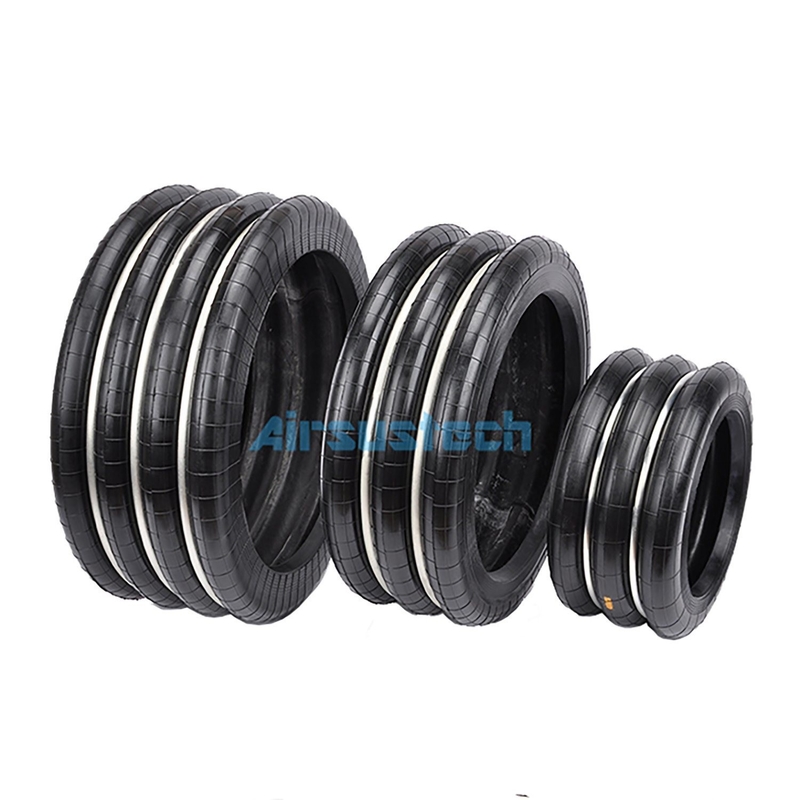

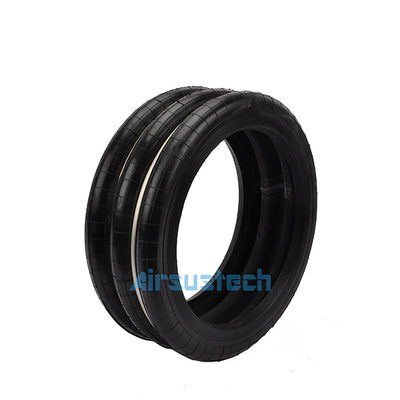

F-400-3 Real Photos

Triple Natural Rubber Yokohama S-400-3R Air Spring for Hydraulic Punch Press 0
