Air Rubber Punch S-600-3R Yokohama Triple Type Air Spring Actuator With Two Hoops

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	F-600-3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	F-600-3	Structure:	Triple Cylinder
Quality:	100 % Tested	Fuction:	Reduce Shock
Trademark:	GUOMAT	After-sales Service:	12 Months
Natural Height:	160 MM	Min Height:	90 MM
Highlight:	Yokohama Triple Type Air Spring Actuator , Triple Type Air Spring Actuator , Air Spring Actuator With Two Hoops

Air Rubber Punch S-600-3R Yokohama Triple Type Air Spring Actuator with Two Hoops

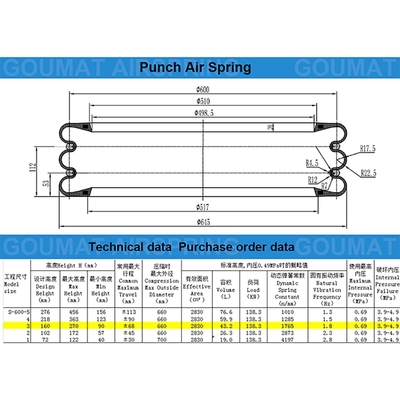

F-600-3 Air Spring Details

Natural Height: 160 mm

Maximum Height: 270mm

Minimum Height: 90mm

Common Maximum Travel (mm): 68 mm

Compression Max. Outside Diameter (mm): 660 mm

Maximum Internal Pressure (MPA): 0.69

Internal Pressure Failure(MPA): 3.9-4.9

Cross Reference

AIRSUSTECH Part No.: F-600-3

YOKOHAMA S-600-3R

YOKOHAMA S 600 3R

YOKOHAMA S-600-3

YOKOHAMA S 600 3

YOKOHAMA S600-3R

YOKOHAMA S600-3

Product Advantages

The industrial air spring widely used in paper-making machinery, vehicle detection equipment, mechanical gripper, shaking table ect. to effectively improve the working efficiency, safety and service life of the equipment. In these fields, the products plays an important role of damping, lifting, supporting, and so on. It helps customers to save manufacturing costs and win more economic profits.

1. The products features low cost, wide use and easy operation.

2. It achieves long service life, and requires no maintenance and lubrication.

3. This product allows for flexible expansion and contraction, strong loading capacity, convenient design, and simple structure.

4. It comes with no friction and soft medium.

Other Types Of Punch Air Spring/Pneumatic Parts

GUOMAT NO.	Reference No.	Hight H(mm)			Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
GUOMAT NO.	Reference No.	Design High(mm)	Maximum High(mm)	Minimum Height(mm)	Commonly Maximum Stroke(mm)	The Largest Diameter When Compressed(mm)
F-600-1	S-600-1	72	122	40	±30	700
F-600-2	S-600-2	102	172	57	±45	660
F-600-4	S-600-4	218	363	123	±90	660
F-600-5	S-600-5	276	456	156	±113	660
F-550-2	S-550-2	102	172	50	±45	610
F-550-3	S-550-3	160	270	90	±68	610
F-500-2	S-500-2	102	172	57	±45	560
F-500-3	S-500-3	160	270	90	±68	560
F-500-4	S-500-4	218	363	123	±90	560
F-500-5	S-500-5	276	456	156	±113	560
F-450-1	S-450-1	72	117	40	±30	510
F-450-2	S-450-2	102	172	57	±45	510
F-450-3	S-450-3	160	270	90	±68	510
F-450-4	S-450-4	218	363	123	±90	510
F-450-5	S-450-5	276	456	156	±113	510
F-400-2	S-400-2	102	167	57	±45	460
F-400-3	S-400-3	160	260	90	±68	460
F-400-4	S-400-4	218	348	123	±90	460
F-400-5	S-400-5	276	435	156	±113	460
F-350-1	S-350-1	72	117	40	±30	450
F-350-2	S-350-2	102	160	55	±42	410
F-350-3	S-350-3	160	250	85	±65	410
F-350-4	S-350-4	218	336	118	±85	410
F-300-1	S-300-1	72	117	40	±30	400
F-300-2	S-300-2	98	158	53	±40	360
F-300-3	S-300-3	152	242	82	±60	360
F-300-4	S-300-4	206	326	111	±80	360
F-240-4	S-240-4	206	316	111	±80	300
F-240-3	S-240-3	152	232	82	±60	300
F-240-2	S-240-2	98	148	53	±40	300
F-240-1	S-240-1	72	110	40	±30	340
F-220-4	S-220-4	206	311	111	±80	280
F-220-3	S-220-3	152	232	82	±60	280
F-220-2	S-220-2	98	148	53	±40	280
F-200-2	S-200-2	98	148	53	±35	260
F-200-3	S-200-3	152	232	82	±53	260
F-200-4	S-200-4	206	311	111	±70	260
F-160-1	S-160-1	72	102	40	±25	220
F-160-2	S-160-2	98	148	53	±35	220
F-160-3	S-160-3	152	227	82	±53	220
F-160-4	S-160-4	206	306	111	±70	220
F-120-4	S-120-4	206	306	111	±70	180
F-120-3	S-120-3	152	227	82	±53	180
F-120-2	S-120-2	98	148	53	±35	180
F-100-4	S-100-4	206	296	121	±60	160
F-90-3	S-90-3	152	222	87	±45	160
F-90-2	S-90-2	98	143	58	±30	160
F-90-1	S-90-1	76	106	46	±30	125

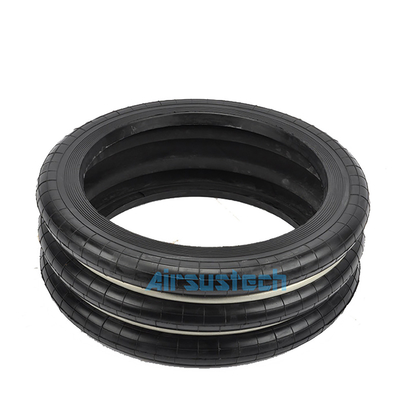

F-600-3 Real Pictures

Air Rubber Punch S-600-3R Yokohama Triple Type Air Spring Actuator With Two Hoops 0
