For Hight Performance Contitech FD200-19 320 Double Convoluted Air Actuator

For Hight Performance Contitech FD200-19 320 Double Convoluted Air Actuator

2B6910 Specifications

Top Cover Plate Diameter: 6.34 inches
Screw Center Distance of Top Cover Plate: 3.50 inches
Bottom Cover Plate Diameter: 6.34 inches
Screw Center Distance of Bottom Cover Plate: 3.50 inches
Top Cover Plate Screw(Nut) Tooth: 2×3/8UNC
Bottom Cover Plate Screw(Nut) Tooth: 2×3/8UNC
Air Hole: 3/4 NPT
Rubber Bellow Max. Diameter: 9.84 inches
Minimum Height: 3.0 inches
Maximum Height: 10.8 inches

Refer Numbers

Six Reasons to Choose Us

1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound

Product Applications

1. Scissor lift
2. Hopper vibration and damping
3. Mechanical handling stop
4. Quick lock device
5. Reel tensioning
6. Machine isolation
7. Direct force
8. Impact absorbtion
9. Roller tensioning
10. Platform lift
11. Short stroke mechanical linkage
12. Hot foll stamping press

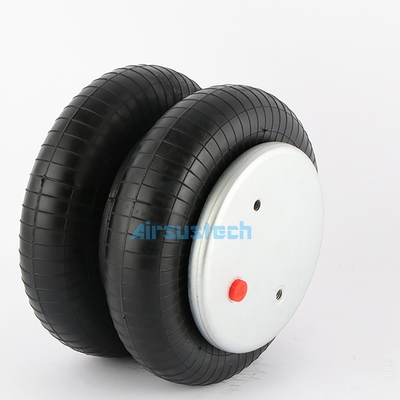

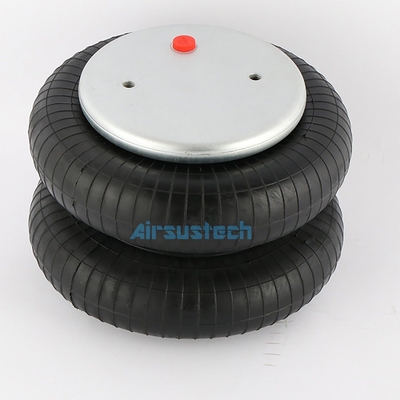

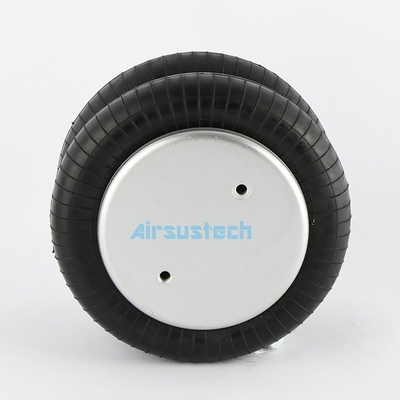

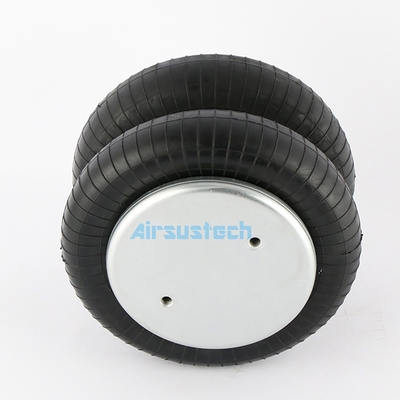

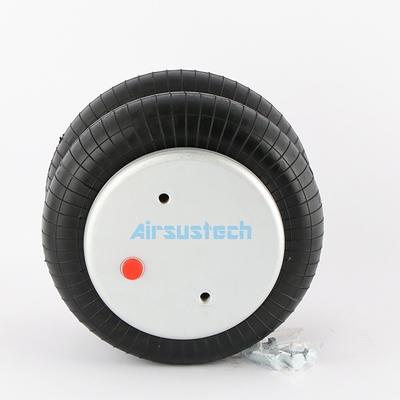

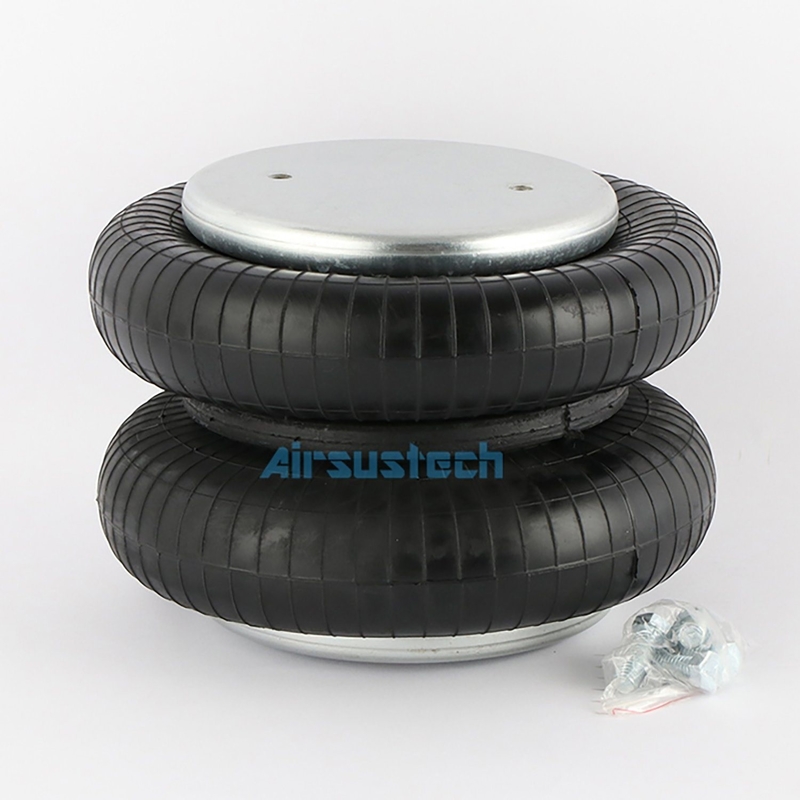

The Real Pictures of 2B6910

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.


Factory Workshop
