Gas Filled Air Spring Suspension Bos-CH 822419002 Contitech FS 70-7 Single Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B7070

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B7070	Trademark:	GUOMAT
Warranty:	12 Months	Operation:	Gas-Filled
Firestone:	W01-M58-6155	Phoenix:	SP 1B 05
Full Storke:	65 MM	Pneumatic Connection:	G1/4
Highlight:	Gas Filled Air Spring Suspension , 822419002 Suspension Air Spring , Single Bellow Suspension Air Spring

Gas-filled Air Spring Suspension Bos-CH 822419002 Contitech FS 70-7 Single Bellow

Air Spring Introduction

Air springs are highly durable, precision-crafted, and cost-efficient solutions for numerous actuation and vibration isolation needs. Constructed with fabric-reinforced neoprene or natural rubber flex members and corrosion-resistant end retainers, they ensure outstanding reliability and performance. Functioning as isolators, air springs are highly effective at minimizing the damaging impact of vibrations. They stand out by providing simultaneous vibration isolation and load-height adjustment, enabling consistent vibration dampening across varying load conditions.

1B7070 Specifications

Top plate screw (nut) teeth: 2XM8x1.25

The screw center distance of the top cover plate: 44.5mm

Screw (nut) teeth of the bottom cover plate: 2XM8x1.25

The screw center distance of the bottom cover plate: 44.5 mm

Air hole/air inlet: 1/4

The screw center distance between the air hole and the nut: 22.25mm

Top plate diameter: 105 mm

Diameter of the bottom cover: 105 mm

Maximum diameter of rubber bellows: 165 mm

Natural diameter of rubber bellows: 150 mm

Working stroke: minimum 50 mm to maximum 115 mm

Maximum height: 115 mm

Minimum height: 50 mm

Other Part Numbers

Cotitech	FS 70-7	Firestone	W01-M58-6155
Cotitech	FS70-7	Firestone	W01 M58 6155
Cotitech	FS 70 7	Firestone	W01M586155
Cotitech	FS70 7	Bosch	8224 19002
Phoenix	SP 1 B 05	Bosch	822419002
Phoenix	SP 1B 05	Weforma	WBE 200-E1
Phoenix	SP1 B 05	Weforma	WBE 200 E1
Phoenix	SP1B05	Weforma	WBE200 E1
Fes-to	EB-165-65	Weforma	WBE200E1
Fes-to	EB 165 65	Fes-to	EB16565
Fes-to	EB165 65

GUOMAT Air Spring Features

1. Low installation height
In comparison to conventional pneumatic cylinders, ContiTech air actuators contain no piston rod, making it possible to reduce
the design height considerably.This allows compact constructions to be made.

2. Angular movement
Depending on the type, GUOMAT air actuators can be used for tilt angles up to 30°. This enables the designer to simplify the articulated construction.

3. Low purchase price
The purchasing costs are considerably less than for conventional pneumatic cylinders.And thanks to the long service life and freedom from maintenance,running costs are reduced as well.

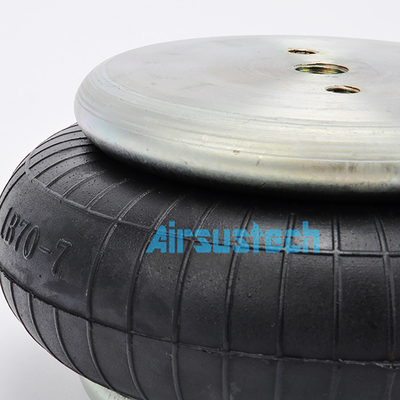

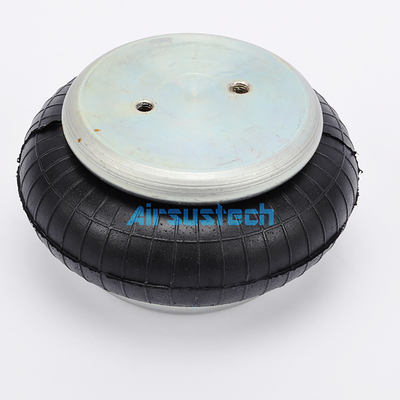

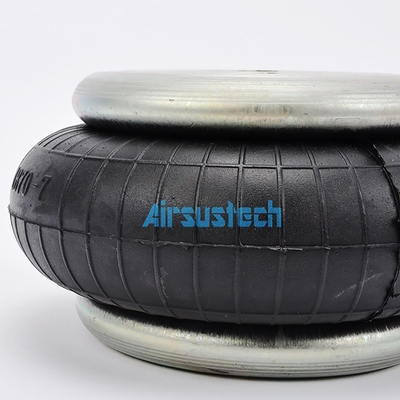

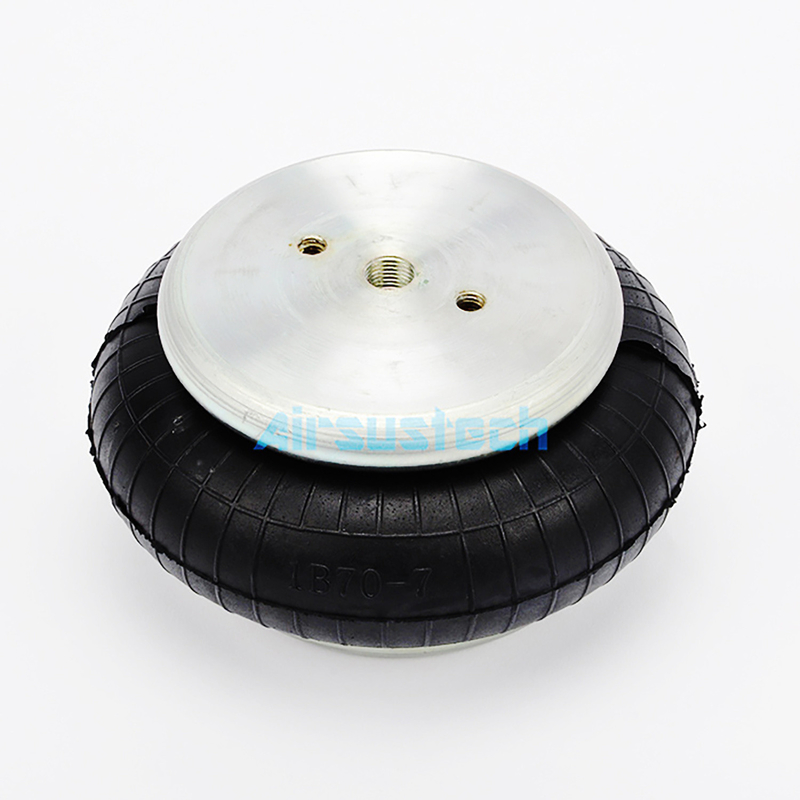

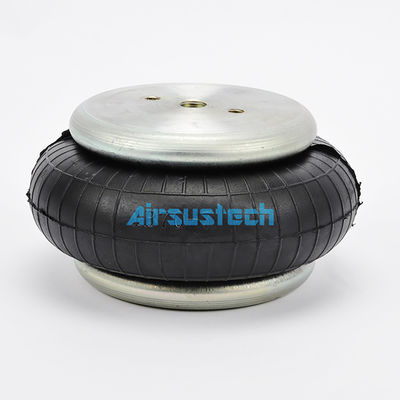

The Related Pictures of 1B7070

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
Gas Filled Air Spring Suspension Bos-CH 822419002 Contitech FS 70-7 Single Bellow 1
