Air Suspension PM/31062 6'' Diameter Air Bellow Norgren Air Spring 115MM Stroke

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6×2T

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6×2T	Structure:	Double Convoluted
Quality:	100 % Tested	Fuction:	Reduce Shock
Transport Package:	Strong Cartons	Trademark:	GUOMAT
After-sales Service:	12 Months	Firestone:	W01-R58-4053
Highlight:	Norgren Air Spring 115MM Stroke , PM/31062 Norgren Air Spring

Air Suspension PM/31062 6'' Diameter Air Bellow Norgren Air Spring 115MM Stroke

2B6×2T Detailed Datas

Top plate screw (nut) teeth	4pcs X M8
Screw (nut) teeth of the bottom cover plate	4pcs X M8
Air hole/air inlet	G1/2
Center distance between air inlet and nut	22 mm
Top plate diameter (width	153.5 mm
Diameter of bottom cover (width)	153.5 mm
Stroke of Rubber Bellows	80 mm-195 mm
Rubber Bellows' Diameter max at 7 bar	75 mm
Bumper block/bumper block	No bumper
Belt loop/Belt loop/Girdle Hoop	one piece of belt loop/girdle hoop

Vibration isolation - dynamic characteristic values

Design height H: recommended 160mm, minimum 150mm

Pressure p [bar]	3	4	5	6	7	8	Vol. V [l]
Force (Load) [kN]	2.6	3.5	4.5	5.5	6.5	7.6	2.0
Spring rate [N/cm]	675	855	1035	1215	1395	1570
Natural frequency [Hz]	2.5	2.4	2.4	2.3	2.3	2.3

Pneumatic application - static characteristic values

Force F [kN]

Pressure p [bar]		3	4	5	6	7	8	Vol. V [l]
Height H [mm]	160	2.6	3.5	4.5	5.5	6.5	7.6	2.0
	140	3.3	4.5	5.6	6.8	8.1	9.3	1.7
	120	3.9	5.2	6.6	8.0	9.4	10.8	1.5
	100	4.6	6.2	7.8	9.4	11.1	12.8	1.2

2B6×2T Replaces These Air Suspensions

ContiTech: FD 76-14 1/2 M10
ContiTech: FD 76-14 DS G1/2
ContiTech: FD 76-14 DS G1/2 CR
ContiTech: FD 76-14 DS CR G1/2
ContiTech: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech Bellow: FD 76-14 / FD76-14 / FD7614
Norgren: PM/31062 / PM 31062 / PM31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR: SP1482
Dunlop UK (Pneuride): PNP 30550 01 12 / PNP30550 0112
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185
Replaces These Air Springs (Air Bellows)

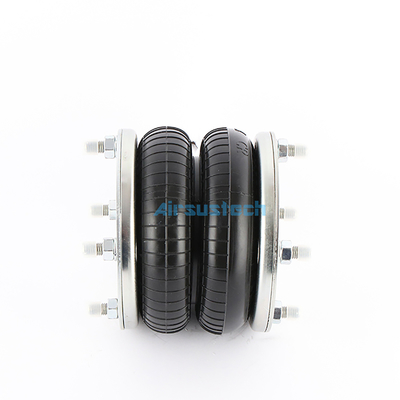

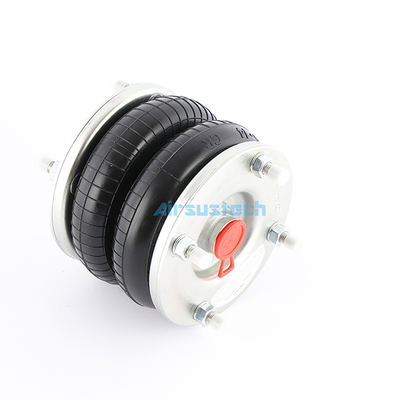

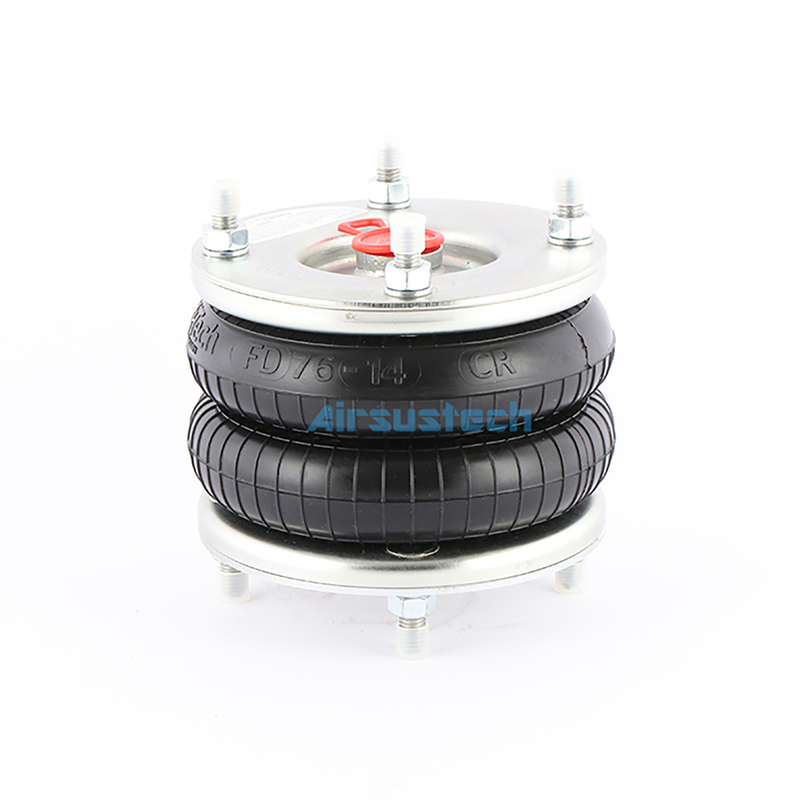

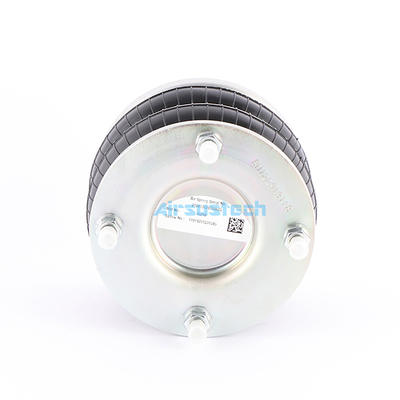

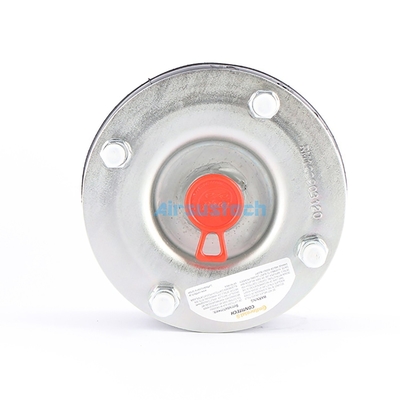

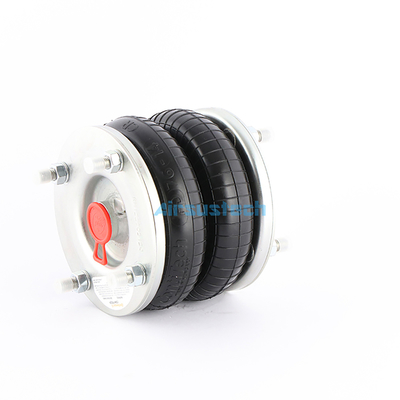

Product Images

Air Suspension PM/31062 6'' Diameter Air Bellow Norgren Air Spring 115MM Stroke 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
