FS530-14 Contitech Suspension Air Spring Pneumatic Connection G3/4 Air Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B53014P01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Product Number:	1B53014P01	Brand:	GUOMAT
Screw Type:	4×M8×15	Compressed Height:	51 MM
Maximum Height:	185 MM	Working Temperature:	-40℃+70℃
Sample:	Available	Firestone:	W01-358-7112
Highlight:	G3/4 Suspension Air Spring , Pneumatic Connection Suspension Air Spring , FS530-14 Suspension Air Spring

FS530-14 Contitech Suspension Air Spring Pneumatic Connection G3/4 Air Bellow

Alternative Items

CONTITECH	FS530-14 FS 530-14 FS 53014
Firestone	W01-358-7112 W01 358 7112 W013587112 WO1-358-7112 WO1 358 7112 WO13587112
FleetPride	AS7112
Goodyear	1B14 358 1B14358 1B14-358 578-91-3-352
Taurus	6326
Triangle	AS-4339 AS4339
TRP	AS71120
Dayton	354-7112 354 7112 3547112
Hendrickson	S-13044
Loadguard	SC2012
Fleetrite	554782C1
Ridewell	1003587112C
SAF Holland	90557028

Product Detailed Datas

Cover Plate

Top Cover Plate Diameter: 287 mm
Screw Center Distance of Top Cover Plate: 158.8 mm
Bottom Cover Plate Diameter: 287 mm
Screw Center Distance of Bottom Cover Plate: 158.8 mm

Nut/Blind Nuts

Top Cover Plate Screw(Nut) Tooth: 2×M8×15
Bottom Cover Plate Screw(Nut) Tooth: 2×M8×15

Gas Hole/Air Inlet/Air Fitting

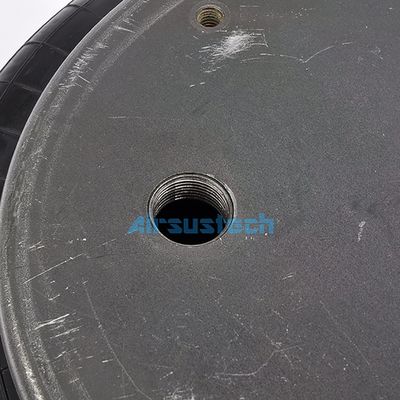

Air Hole: G3/4
Rubber Bellow

Rubber Bellow Max. Diameter: 405 mm

Installation Space: 420 mm
Minimum Height: 51 mm
Maximum Height: 185 mm

Air Spring Should Pay Attention To In The Application

It is forbidden to use the air spring beyond the recommended safe extension height.
In order to prolong the service life of the air spring, do not use the air spring below the minimum compression height.
Do not use the air spring under the pressure exceeding 0.7Mpa.
Do not use the air spring in a twisted state.

We Have Other Type Air Springs/Air Suspensions

Single Convoluted	Double Convoluted	Triple Convoluted
FS 40-6 CI	FD 40-10 CI	FT 330-29 CI
FS 50-5 CI	FD 70-13 CI	FT 430-32 CI
FS 70-7 CI	FD 110-15 CI	FT 530-32 CI
FS 100-10 CI	FD 120-17 CI	FT 530-35 CI
FS 120-10 CI	FD 120-20 CI	FT 960-34 CI
FS 120-12 CI	FD 200-19 CI	FT 1330-35 CI
FS 200-10 CI	FD 200-22 CI
FS 310-12 CI	FD 200-25 CI
FS 330-11 CI	FD 330-22 CI
FS 330-14 CI	FD 330-30 CI
FS 530-11 CI	FD 530-22 CI
FS 530-14 CI	FD 530-35 CI
FS 960-12 CI	FD 960-22 CI
FS 1330-11 CI	FD 1330-25 CI

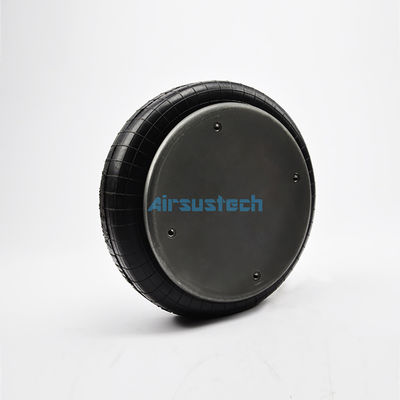

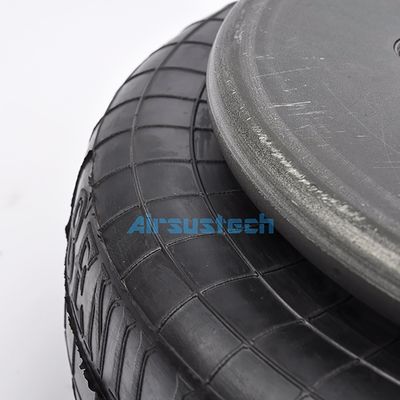

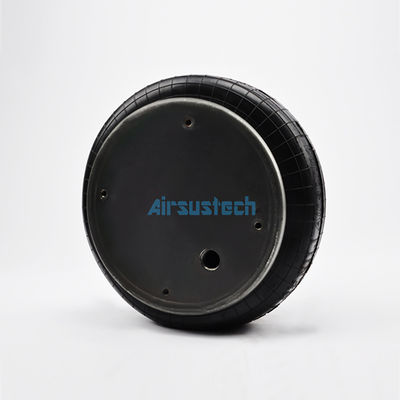

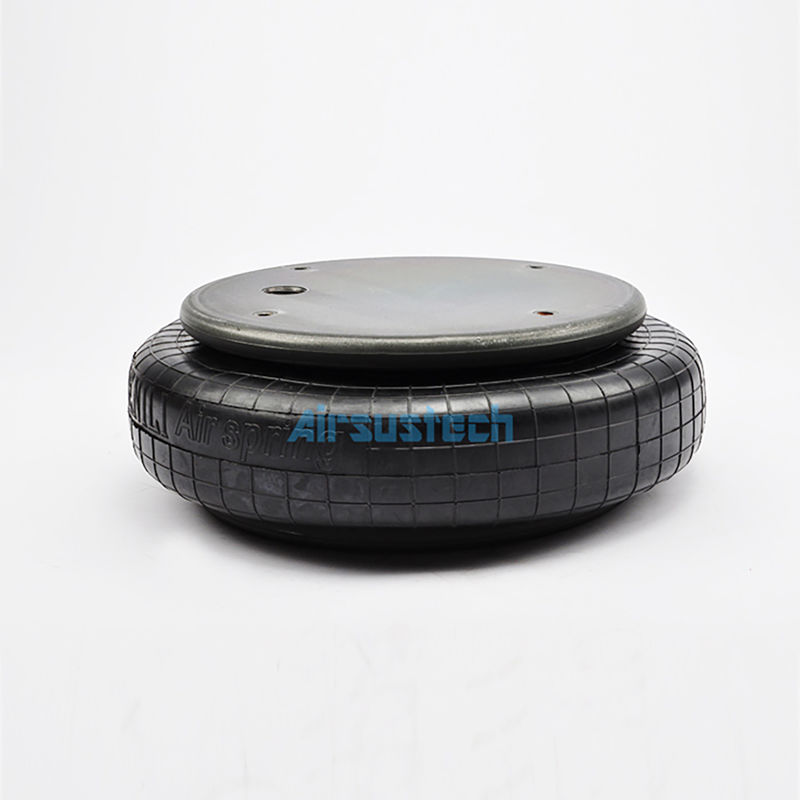

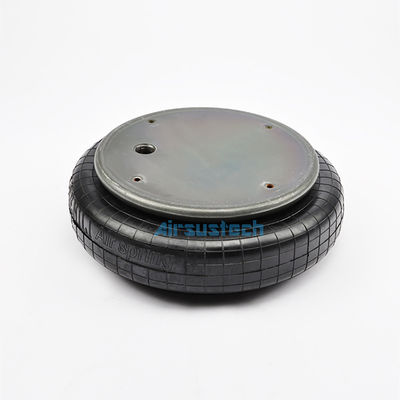

The Related Picture of 1B53014P01

FS530-14 Contitech Suspension Air Spring Pneumatic Connection G3/4 Air Bellow 0
