Design H. 110MM Contitech FS 200-10 Air Spring for Leveling Rubber Material Bellow

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	1B6374

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	1B6374	Quality:	100 % Tested
Fuction:	Reduce Shock	Trademark:	GUOMAT
Warranty:	12 Months	Firestone:	W01-M58-6374
Air Connection:	G1/4	Natural Height:	110 MM
Highlight:	Leveling Rubber Material Air Spring , Contitech FS 200-10 Air Spring , 110MM Air Spring

Design H. 110MM Contitech FS 200-10 Air Spring for Leveling Rubber Material Bellow

Product Detailed Datas

Diameter of the Top Cover Plate: 160 mm

Center-to-Center Distance of Screws on the Top Cover Plate: 89 mm

Diameter of the Bottom Cover Plate: 160 mm

Center-to-Center Distance of Screws on the Bottom Cover Plate: 89 mm

Screw (Nut) Thread Count for the Top Cover Plate: 2×M10×1.25

Screw (Nut) Thread Count for the Bottom Cover Plate: 2×M10×1.25

Air Inlet: G 1/4

Natural Diameter of the Rubber Bellow: 220 mm

Design Height: 110 mm

Other OEM Numbers

Fire-stone W01-M58-6374

Fire-stone W01M586374

Fire-stone W01 M58 6374

Fire-stone WO1M586374

Fire-stone WO1-M58-6374

Fire-stone WO1 M58 6374

Contitech FS 200-10

Contitech FS200-10

Contitech FS 200 10

Contitech FS200 10

Contitech FS 20010

Contitech FS20010

Phoenix SP 1B 12

Phoenix SP1B 12

Phoenix SP1B12

Dunlop(FR) 9''1/4×1 S09 10 1

Dunlop(FR) 9''1/4×1S09 10 1

Dunlop(FR) 9''1/4×1S0910 1

Dunlop(FR) 9''1/4×1S09101

Bos-ch 822419004

Fes-to EB-250-85

Fes-to EB 250 85

Fes-to EB250-85

Fes-to EB25085

Norgren PM/31091(81/4×1)

Please Note When Using Air Springs

1. Do not use air springs that exceed the recommended safe extension height.
2. To extend the service life of air springs, air springs should not be used below the minimum compression height.
3. Air springs must not be used at pressures above 0.7MPa.
4. Air springs must not be used in a twisted state.

We Also Provide Other Contitech Air Shock Suspensions

Single Convoluted	Double Convoluted	Triple Convoluted
FS 40-6 CI	FD 40-10 CI	FT 330-29 CI
FS 50-5 CI	FD 70-13 CI	FT 430-32 CI
FS 70-7 CI	FD 110-15 CI	FT 530-32 CI
FS 100-10 CI	FD 120-17 CI	FT 530-35 CI
FS 120-10 CI	FD 120-20 CI	FT 960-34 CI
FS 120-12 CI	FD 200-19 CI	FT 1330-35 CI
FS 200-10 CI	FD 200-22 CI
FS 310-12 CI	FD 200-25 CI
FS 330-11 CI	FD 330-22 CI
FS 330-14 CI	FD 330-30 CI
FS 530-11 CI	FD 530-22 CI
FS 530-14 CI	FD 530-35 CI
FS 960-12 CI	FD 960-22 CI
FS 1330-11 CI	FD 1330-25 CI

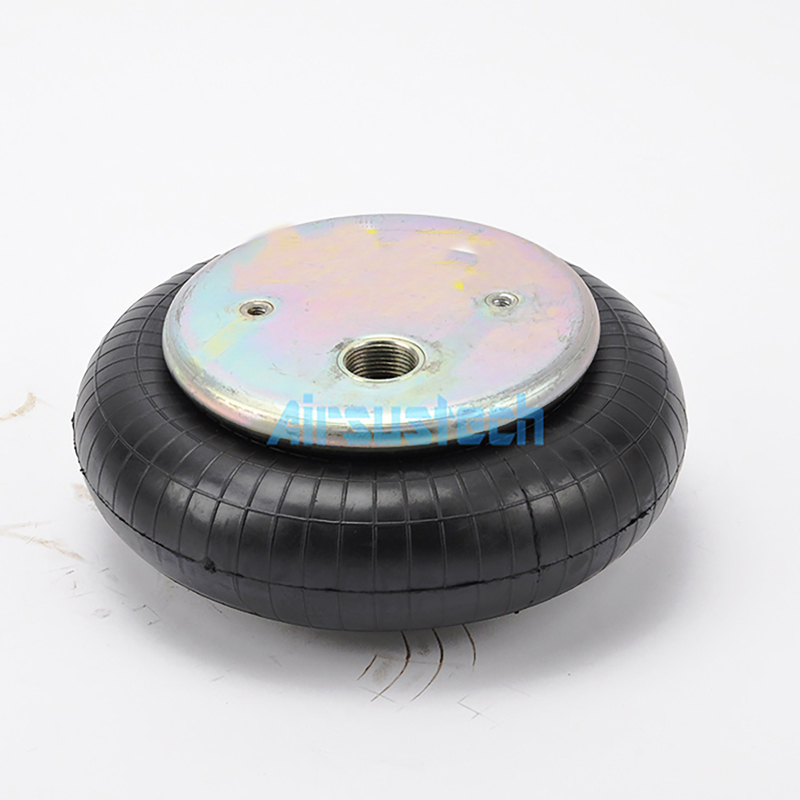

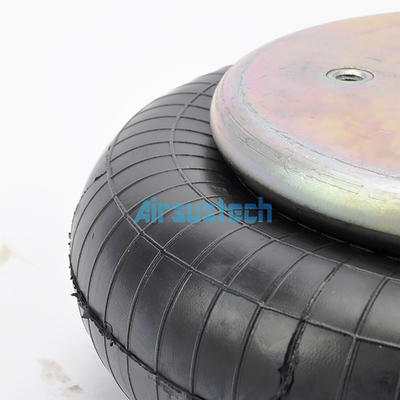

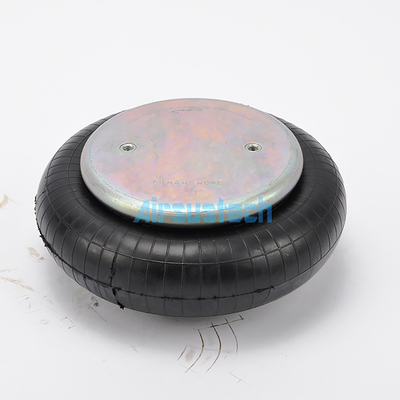

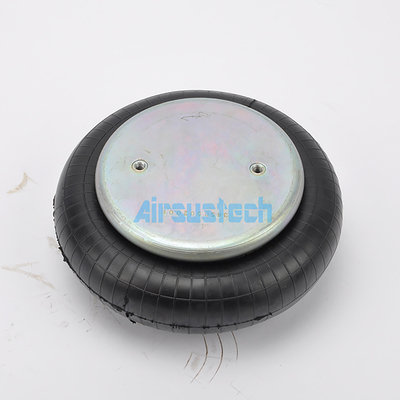

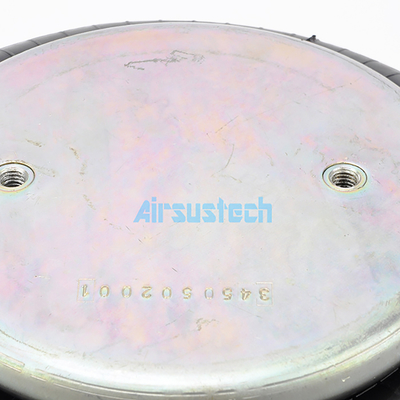

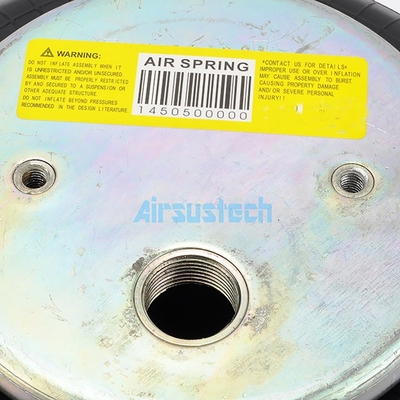

The Detailed Pictures

Design H. 110MM Contitech FS 200-10 Air Spring for Leveling Rubber Material Bellow 0
