Firestone Air Spring Assembly W01-358-7550 Replace FD 331-26 541 Contitech Air Suspension

Firestone Air Spring Assembly W01-358-7550 Replace FD 331-26 541 Contitech Air Suspension

Cross reference

Specifications and Tecnical Data

1. Nut/blind nut Top plate screw (nut) teeth: M12×1.5;M20×1.5

    Top plate screw center distance : 157mm

2. Bottom cover plate screw (nut) teeth: 2 x M10

    Bottom plate screw center distance : 157 mm

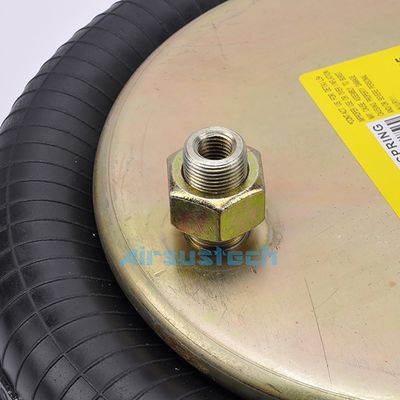

2. Air hole/air inlet/air fitting air hole/air inlet: M12×1.5

    The Screw is combined with the Air Inlet
3. Top plate diameter (width): 224.5mm, bottom cover diameter (width): 224.5 mm

4. Rubber bellows Max. diameter: 343mm

5. Min height: 104mm

    Max. height: 363mm

6. Bumper block/bumper block with bumper
7. Belt loop/belt loop/girdle hoop: with one piece of belt loop/girdle hoop

Use

Air springs are widely used in many industrial industries such as aviation, aerospace, ships, and automobiles. For example, in aviation, the air spring has a large elastic deformation after being loaded, so as to absorb shock and vibration. It can also bear multi-directional loads at the same time, with good shock absorption effect, small resonance area and long service life. Not only has the nonlinear elastic characteristics that the general leaf spring does not have, but also can change the relevant structure to obtain the ideal stiffness characteristics and lower natural vibration frequency.

Four advantages of Guomat

Quality assurance, the industry's first choice
Guangzhou Guomat Air Spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and development and production of air springs, and has cooperated closely with many companies for many years.
Complete products and wide application
Guomat products are widely used in passenger cars, trucks, high-end cars, industrial equipment (equipment that requires shock absorption and pressure adjustment) and other product fields, and are sold well at home and abroad.
Experienced and professional team
Over the years, a group of outstanding professional engineers at home and abroad have been organized to take root in the first-line production site, and actively summarize and sort out the characteristics of the production process in combination with the actual production situation.
Perfect after-sales service system
With warm and thoughtful service, honesty and trustworthiness, persistence, excellence, and enterprising spirit.

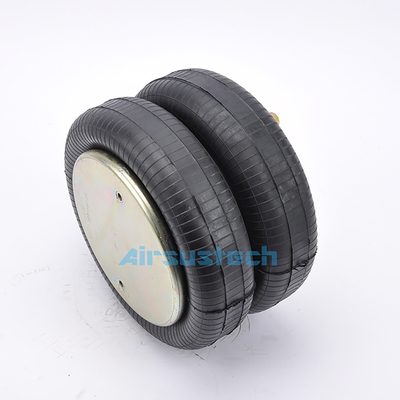

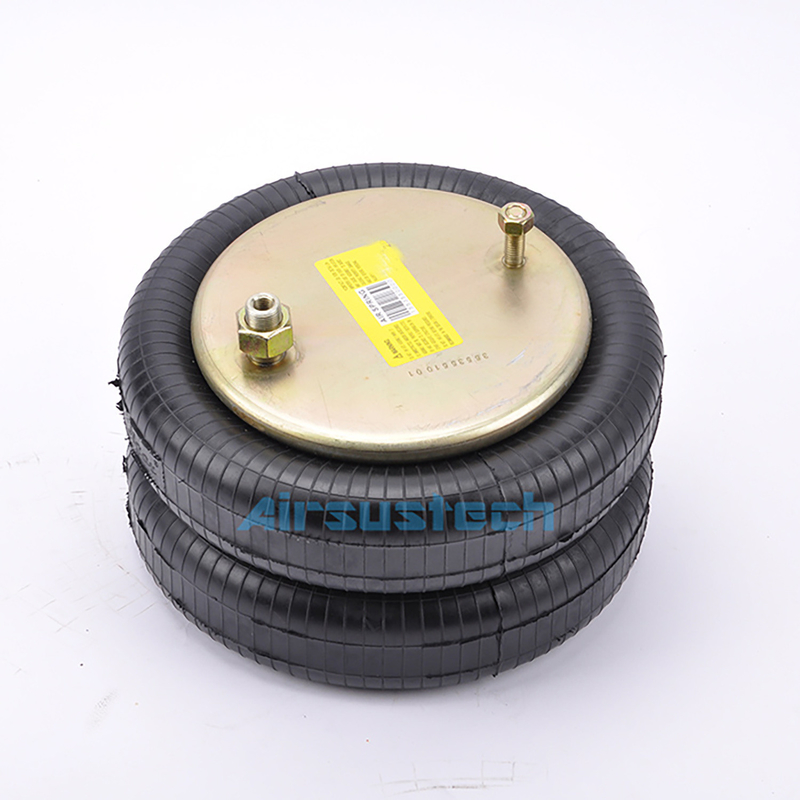

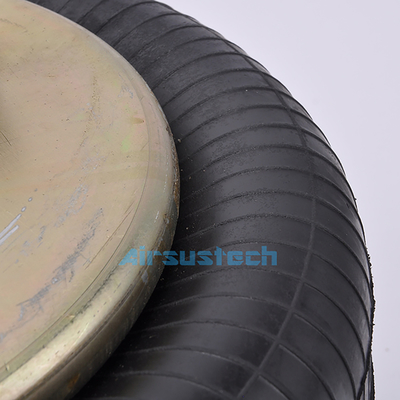

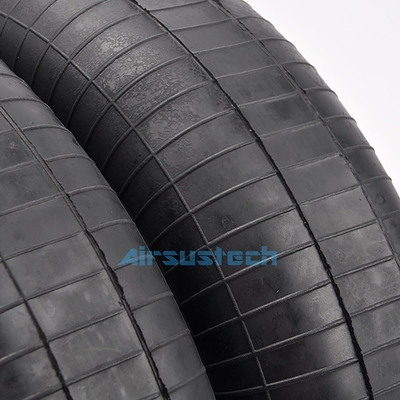

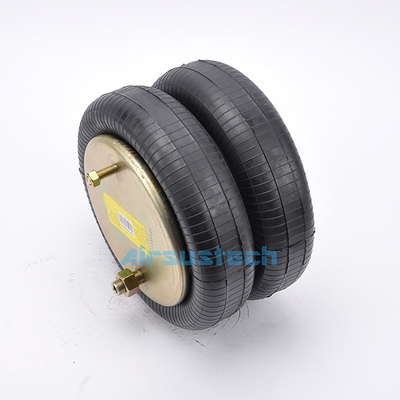

The related picture of air spring/pneumatic cylinder
