High Quality Continental Suspension Air Spring FD 200-19 504 Air Spring Assembly

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B6926

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B6926	Quality:	100 % Tested
Trademark:	GUOMAT	Warranty:	12 Months
Air Inlet:	1/4 NPTF	Firestone:	W01-358-6926
Material:	Natural Rubber	Suspension System:	Air Spring Suspension
Highlight:	504 Suspension Air Spring , High Quality Suspension Air Spring , FD 200-19 Suspension Air Spring

High Quality Continental Suspension Air Spring FD 200-19 504 Air Spring Assembly

Product Features

Cover Plate
Top Cover Plate Diameter: 160 mm
Screw Center Distance of Top Cover Plate: 89 mm
Bottom Cover Plate Diameter: 160 mm
Screw Center Distance of Bottom Cover Plate: 89 mm

Nuts/Blind Nuts
Top Cover Plate Screw (Nut) Tooth: 2×3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth: 2×3/8-16UNC

Gas Gole/Gas Fitting/Air Hole/Air Inlet
Air Inlet: 1/4 NPTF

Rubber Bellow
Rubber Bellow Max. Dia: 251 mm
Minimum Height: 75 mm
Maximum Height: 260 mm
Bellows Structure: Double Convoluted
Design Height: 160 mm

Other OEM Number

Firestone W01-358-6926

Firestone WO13586926

Firestone WO1-358-6926

Firestone W013586926

FIRESTONE W01-358-6926

FIRESTONE WO13586926

FIRESTONE WO1-358-6926

FIRESTONE W013586926

Contitech FD 200-19 504

Contitech FD 200 19 504

Contitech FD200-19 504

Contitech FD200 19 504

Contitech FD20019 504

Contitech 161299

Triangle 6325

Triangle 4504

RR Load LS20

Features of Rubber Air Suspension

1. Long service life. The self-sealing type has excellent durability due to the reduced rubber deformation during expansion and contraction.
2. Maintenance is very easy. There are no frictional or sliding parts, so lubrication is not required.
3. The installation height can be reduced. Compared with other springs, the installation height can be reduced and the stroke can be effectively increased.
4. Spring parameters with elasticity and softness, high load and elasticity, and excellent shock resistance can be achieved.
5. The load capacity is variable and can be changed within a wide range by changing the internal pressure.
6. The height can be controlled. When used in conjunction with a height adjustment valve, a constant height can be maintained under different loads.
7. It has a damping effect. Excellent performance when used with an auxiliary air chamber and throttle valve

Other Types Of Contitech Convoluted Air Springs

FS 120-9 3/4 M8	FD 200-25 427	FD 530-35 545
FS 120-9 1/4 M8	FD 200-25 454	FD 530-35 720
FS 200-10 3/4 M8	FD 200-25	FD 120-17 509
FS 200-10 1/4	FD 200-19	FD 40-10
FS 200-10	FD 200-25 453	FD 70-13
FS 70-7 1/4 M8	FD 200-25 426	FD 120-17
FS 330-11 474	FD 200-25 427	FD 200-22 510
FS 330-11	FD 200-25 463	FD 200-22 706
FS 330-11 468	FD 200-25 429	FT 330-29 546
FS 330-14	FD 200-25 507	FT 330-29 547
FS 330-11 647	FD 200-25 511	FT 330-29 520
FS 40-6 1/8 M8	FD 200-25 717	FT 330-29 430
FS120-10	FD 330-22 363	FT 330-29 431
1B8-580	FD 330-22 472	FT 330-29 432
FD 200-19 504	FD 330-22 471	FT 330-29 433
FD 200-19	FD 330-22 500	FT 330-29 469
FD 200-19 724	FD 330-22 313	FT 330-29 466
FD 200-19 539	FD 330-22 337	FT 330-29 498
FD 200-19 505	FD 330-22 318	FT 412-323
FD 200-19 319	FD 330-22 346	FT 210-32
FD 200-19 310	FD 330-22 364	FD 330-22 364
FD 200-19 315	FD 330-22 365
FD 200-19 362	FD 330-22 366
FD 200-19 320	FD 330-22 367
FD 200-19 504	FD 330-22 331
FD 200-19 452	FD 330-22 368
FD 200-19 499	FD 330-22 327
FD 200-19 450	FD 330-22 343
FD 200-19 448	FD 330-22 334
FD 200-19 506	FD 330-22 363
FD 200-19 510	FD 530-22 321
FD 200-22 524	FD 330-30-371
FD 200-19 P04	FD 331-26-514
FD 200-19 315	FD 331-26-541
FD 120-20	FD 331-26-480
FD 120-20 509	FD 530-35 545
FD 120-20 509	FD 530-35 543
FD 200-25	FD 530-35 530

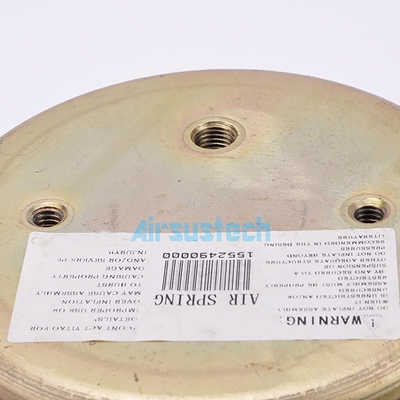

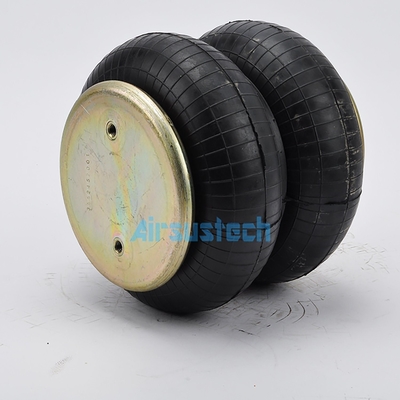

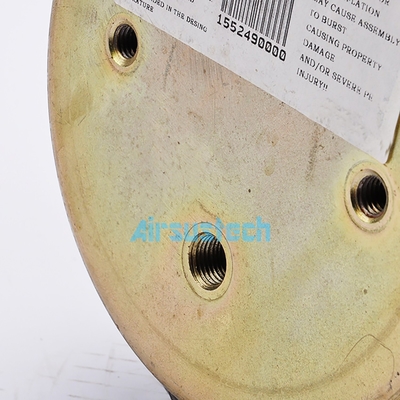

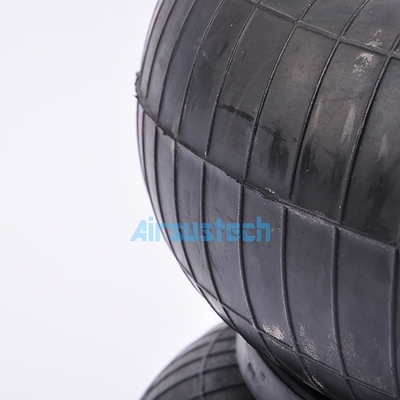

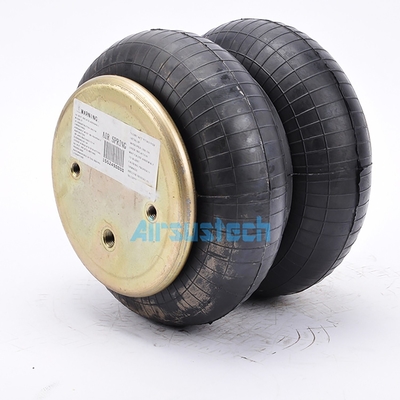

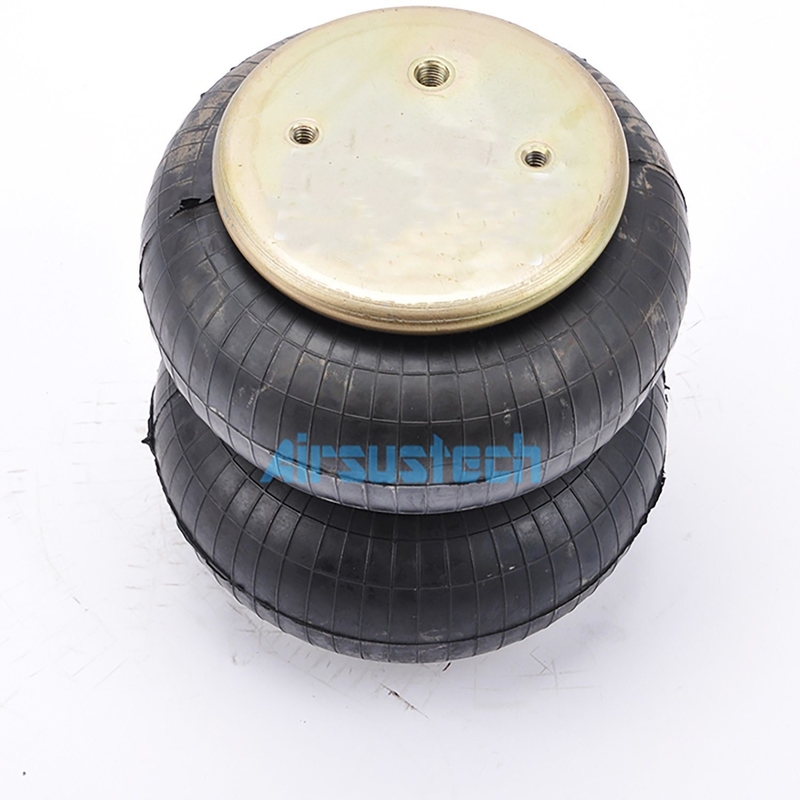

2B6926 Real Photos

High Quality Continental Suspension Air Spring FD 200-19 504 Air Spring Assembly 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
