100% Tested Pneumatic Air Suspension Contitech FD 200-25 453 Effective Shock

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B5231

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B5231	Brand:	GUOMAT
Structure:	Double Convoluted	Cover Plate Diameter:	6.31 Inches
Air Connection:	1/4-18 NPTF	Firestone:	W01-358-6927
Purpose:	Reduce Shock	Sample:	Available
Highlight:	100% Tested Pneumatic Air Suspension , 453 Effective Shock Pneumatic Air Suspension

100% Tested Pneumatic Air Suspension Contitech FD 200-25 453 Effective Shock

Product Detailed Datas

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 3.50 inches
Bottom Plate Diameter: 6.31 inches
Bottom Plate Hole Quantity: 3/4-16 UNF
Bottom Plate Type: Steel
Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 3.50 inches
Top Plate Diameter: 6.31 inches
Top Plate Hole Quantity: 3/4-16 UNF
Top Plate Type: Steel
Expanded Height: 13.50 inches
Compressed Height: 3.10 inches
Spring Type: Double Convoluted
Nut/Blind Nuts Type: 3/4-16 UNF
Max Rubber Bellow Diameter: 10.40 inches
Air Connection: 1/4-18 NPTF
Operation: Gas-filled

Other OEM Numbers

Fire-stone: W01-358-5231

Fire-stone: W01 358 5231

Fire-stone: W013585231

Fire-stone: WO13585231

Fire-stone: WO1 358 5231

Fire-stone: WO1-358-5231

CONTITECH: FD 200-25 453

CONTITECH: FD 200 25 453

CONTITECH: FD 20025453

Contitech :161336

Goodyear: 2B9-218

Goodyear: 2B9 218

Goodyear: 2B9218

Goodyear: 578923206/2

Triangle: 6332

Triangle: 4453

Leland: Sc2072

SAF Holland : 57006927

Tuthill Technology: 1290601

Reyco: 12906-01

Supports And Services

From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.

Global Manufacturing and Sales Facilities offer our customers:
Highly Trained Distribution Network
State-of-the Art Engineering Capabilities
Custom Solution Development
Customer Service Specialists
Multiple Open Communication Channels

Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

We Also Produce Other Type Contitech Air Springs

Single Convoluted	Double Convoluted	Triple Convoluted
FS 40-6 CI	FD 40-10 CI	FT 330-29 CI
FS 50-5 CI	FD 70-13 CI	FT 430-32 CI
FS 70-7 CI	FD 110-15 CI	FT 530-32 CI
FS 100-10 CI	FD 120-17 CI	FT 530-35 CI
FS 120-10 CI	FD 120-20 CI	FT 960-34 CI
FS 120-12 CI	FD 200-19 CI	FT 1330-35 CI
FS 200-10 CI	FD 200-22 CI
FS 310-12 CI	FD 200-25 CI
FS 330-11 CI	FD 330-22 CI
FS 330-14 CI	FD 330-30 CI
FS 530-11 CI	FD 530-22 CI
FS 530-14 CI	FD 530-35 CI
FS 960-12 CI	FD 960-22 CI
FS 1330-11 CI	FD 1330-25 CI

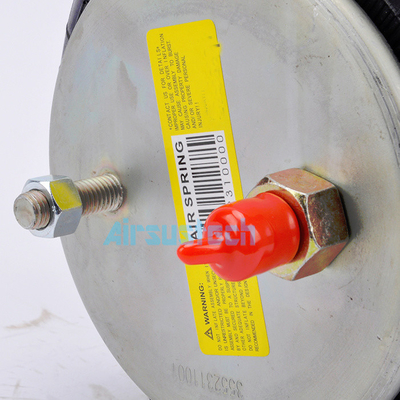

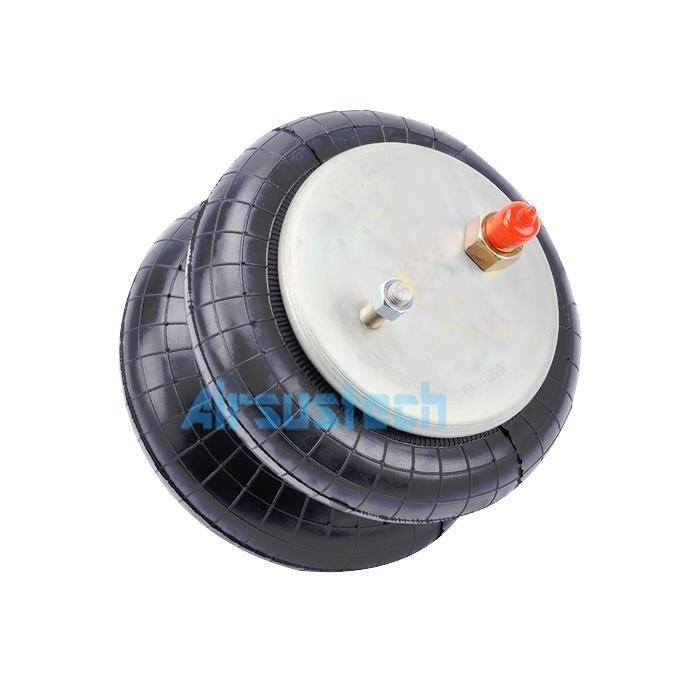

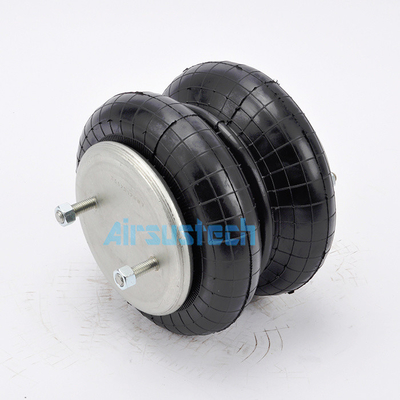

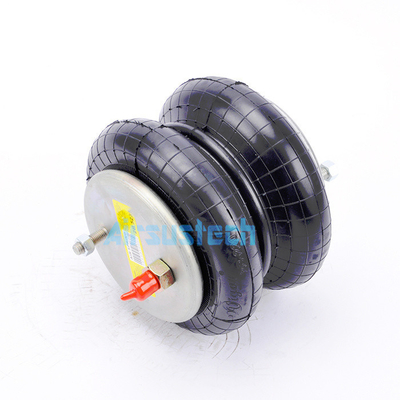

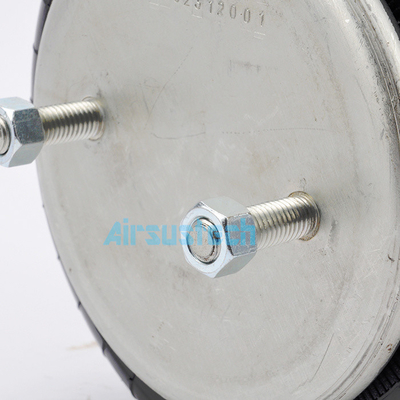

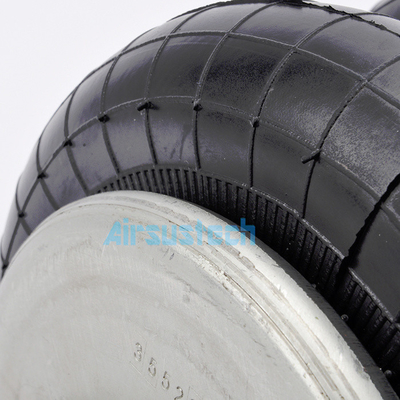

2B5231 Real Pictures

100% Tested Pneumatic Air Suspension Contitech FD 200-25 453 Effective Shock 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
