Double Convoluted Air Spring 2B9-253 Goodyear W01-358-6945 Firestone Air Suspension

Product Details:

Place of Origin:	Guangzhou, China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949:2009
Model Number:	2B6945

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Carton packaging or packaging according to customer requirements
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10,000 Per Week

Contact Now

Detailed Product Description

Spring Material:	Rubber	Quality:	100 % Tested
Fuction:	Reduce Shock	Transport Package:	Strong Cartons
Origin:	Guangzhou, China	HS Code:	8708809000
Warranty:	12 Months	Part:	Air Spring

Double Convoluted Air Spring 2B9-253 Goodyear W01-358-6945 Firestone Air Suspension

Product Description

Brand: GUOMAT

Model No.: 2B6945

Manufacturer Warranty: 1 Year

Material: Rubber and Steel

Condition: Brand New

Packing: Carton/Pallet

OEM Part Number

Firestone Part Number: W01-358-6945 / W01358-6945 / W01 358 6945

Contitech Part Number: FD200-25 / FD 200-25 / FD200-25 427 / FD 200-25 427

Goodyear Part Number: 2B9-253 / 2B 9-253 / 2B9 253 / 2B9253

Goodyear Bellow Number: 578923206 / 578 92 3 206 / 578-92-3-206

Trangle Part Number: 6332 / 4427

Leland Number: Sc2125

Watson&Chalin Number: AS0119F / AS01451G

Ridewell Number: 1003586945C

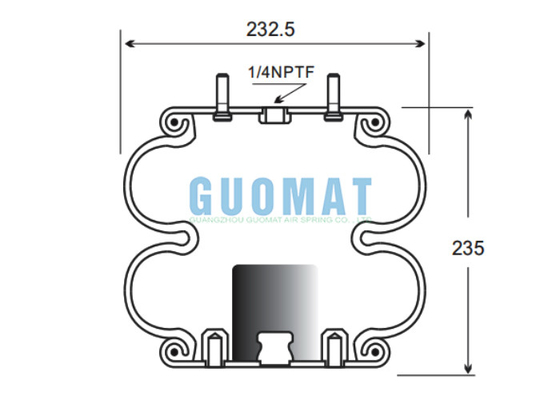

2B6945 Suspension Air Spring Technical Data

Extended height (maximum height): 325mm
Compressed height (minimum height): 95mm
Stroke: maximum height 325mm to minimum height 95mm

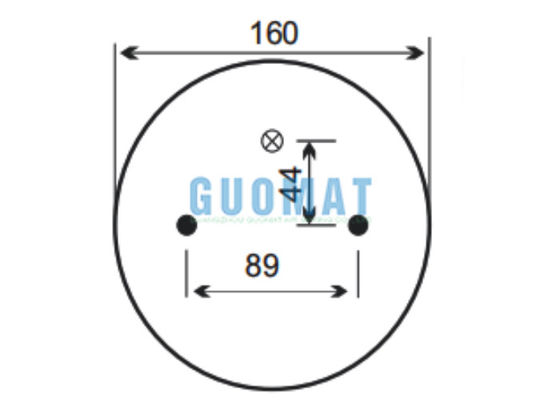

Cover diameter (top and bottom): 160mm
Stud specification (top): 2pcs 1/2-13 UNC
Center distance between two studs (top): 89mm
Air hole: 1/4NPT
Center distance between stud and air hole (top): 44.5mm

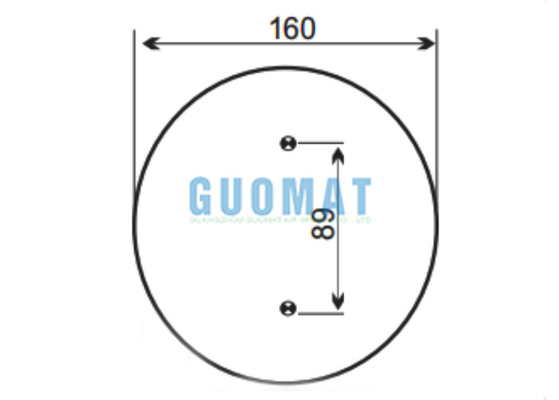

Threaded hole specification (bottom): 2pcs 3/8-16UNC
Center distance between two threaded holes (bottom): 89mm
Maximum outer diameter of rubber part: 262mm

The Dimensions of GUOMAT 2B6945 are the Same as those of Contitech FD 200-25 427

The dimensions of the GUOMAT model **2B6945** are identical to those of the **FD 200-25 427**, ensuring seamless compatibility and interchangeability between the two components. This shared dimensional specification means that both parts can be used in the same applications without requiring modifications to existing systems or mounting setups. Whether for replacement or integration purposes, users can rely on the precise alignment of size, shape, and fit, making the GUOMAT 2B6945 a direct equivalent to the FD 200-25 427 in terms of physical dimensions. This uniformity simplifies procurement, installation, and maintenance processes, offering convenience and efficiency in industrial or mechanical contexts.

About Us-GUOMAT Air Spring

Shipping

Payment

Shipping time: Spot goods are 3-7 working days after receiving payment; if there is no stock, you need to confirm with the sales representative
Shipping method: Generally, it is shipped by international express (FedEx, DHL, EMS, UPS); large-volume orders are shipped by air/sea/rail.
Freight policy: Our prices do not include freight and tariffs
Logistics tracking: After delivery, we will send you the waybill number for inquiry.
Notes on signing: Please be sure to check that the outer packaging is intact before signing. If there is any abnormality, you need to take a photo and contact us for processing.

Payment method: Bank card transfer/PayPal/Western Union

100% Payment

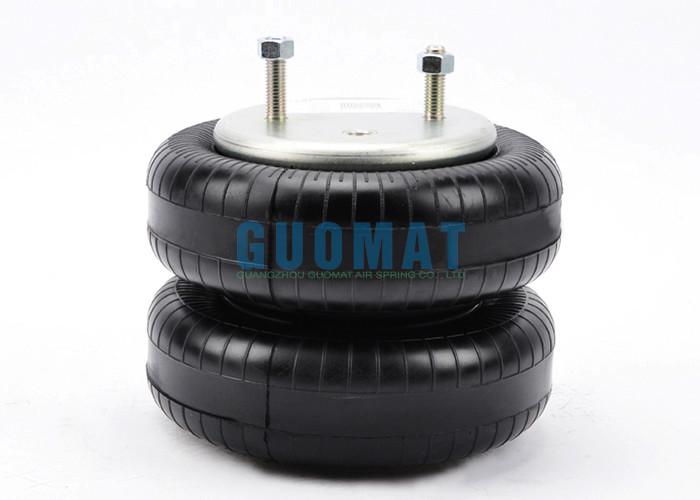

The related picture of 2B6945

Double Convoluted Air Spring 2B9-253 Goodyear W01-358-6945 Firestone Air Suspension 0
