High Quality Guomat 2B5338 Double Convoluted Air Shock Suspension G1/2 Air Hole

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949, ISO9001
Model Number:	2B5388

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Strong Carton Box or as Customers Requirement
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, D/A, D/P, Western Union
Supply Ability:	1000PCS/Week

Contact Now

Detailed Product Description

Model NO.:	2B5388	Trademark:	GUOMAT
Minimum Height:	75 MM	Maximum Height:	290 MM
Warranty:	One Year	Type Of Goods:	Air Spring/Air Bags/Air Ballons
Operation:	Gas-Filled	Material:	Natural Rubber
Highlight:	Double Convoluted Air Shock Suspension , High Quality Air Shock Suspension

High Quality Guomat 2B5338 Double Convoluted Air Shock Suspension G1/2 Air Hole

Product Introduction

Air bellows are the ideal choice for applications requiring short stroke, high thrust single acting actuators. Manufactured from fabric reinforced synthetic rubber in one, two or three convolutions according to stroke and model. They incorporate no reciprocating metal parts and so provide virtually frictionless thrust compared with conventional pneumatic cylinders.

Product Technical Datas

Bottom Plate Alignment: Parallel
Bottom Plate Center To Center Diameter: 157.5 mm
Bottom Plate Diameter: 231 mm
Bottom Plate Hole Quantity: 2×M10×1.5
Bottom Plate Type: Steel

Top Plate Alignment: Parallel
Top Plate Center To Center Diameter: 157.5 mm
Top Plate Diameter: 231 mm
Top Plate Hole Quantity: 2×M10×1.5
Top Plate Type: Steel

Expanded Height: 290 mm
Compressed Height: 75 mm
Spring Type: Double Convoluted
Nut/Blind Nuts Type: 2×M10×1.5
Max Rubber Bellow Diameter: 325 mm

Air Connection: G1/2
Operation: Gas-filled

Six Reasons to Choose Us

1.Hight stability
2.In situ installation
3.Ride comfort
4.Safe and durable
5.Effective shock absorption
6.Reduce the sound

Other Airride Air Springs We Could Provide

Single Convolutions
Fire-stone : W01 358 7731	Fire-stone : W01 M58 6165
Fire-stone : W01 358 7564	Fire-stone : W01 358 7598
Fire-stone : W01 M58 6374	FIRE-STONE FLEX 115
FIRE-STONE W01 358 0118	Fire-stone : W01 358 7008
Fire-stone: W01 358 7009	Fire-stone. W01 358 7103
Fire-stone. W01 358 7112
Double Convolutions
FIRE-STONE W01 095 0111	FIRE-STONE W01 358 7325
FIRE-STONE W01 358 7327	Fire-stone : W01 358 7325
Fire-stone : W01 M58 6353	FIRE-STONE W01 M58 7894
Fire-stone : W01 358 6926	Fire-stone : W01 358 6910
Fire-stone : W01 358 6902	Fire-stone : W01 358 6927
Fire-stone : W01 358 6943	Fire-stone : W01 358 6946
Fire-stone : W01 358 6945	Fire-stone : W01 M58 7679/20C2
Fire-stone:W01 358 6948	FIRE-STONE W01 358 6951
FIRE-STONE W01 358 6952	Fire-stone:W01 M58 6944/20-2
Fire-stone:W01 M58 6891/20-2	Fire-stoneW01 358 7180/22
FIRE-STONE W01 358 0226	FIRE-STONE 22T3 095 .0257
FIRE-STONE fole 210 095.008	Fire-ston:W01 358 7400/22
Fire-stone:W01 358 7405	Fire-stone:W01 358 7406
Fire-stone:W01 358 7424	Fire-stone:W01 358 7545
Fire-stone:W01 358 7550	Fire-stone:W01 358 7555
Fire-stone : W01 358 7136	FIRE-STONE W01 358 7146
FIRE-STONE W01 358 7143	Fire-stone:W01 358 7557
Fire-stone:W01 358 7781	Fire-stone:W01 095 0289
Fire-stone. W01 095 0508	Fire-stone.W01 358 9529
Fire-stone Style 21D-2
Triple Convolutions
Fire-stone:W01 358 8008	Fire-stone:W01 358 8010
Fire-stone:W01 358 8027/38	Fire-stone:W01 358 8029
Fire-stone:W01 358 8030/38	FIRE-STONE W01 358 8006
FIRE-STONE FLEX 38R/38D	FIRE-STONE W01 358 7808
FIRE-STONE W01 358 7798	FIRE-STONE FLEX 313D
FIRE-STONE FLEX 313D	FIRE-STONE W01 358 7800
FIRE-STONE W01 358 7818	FIRE-STONE FLEX 313D

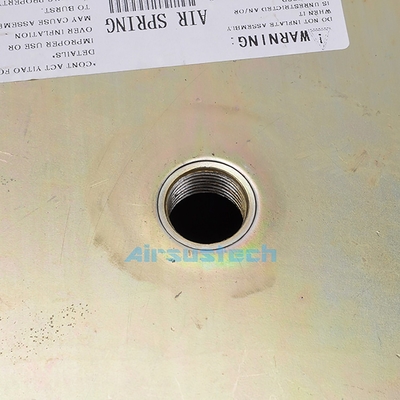

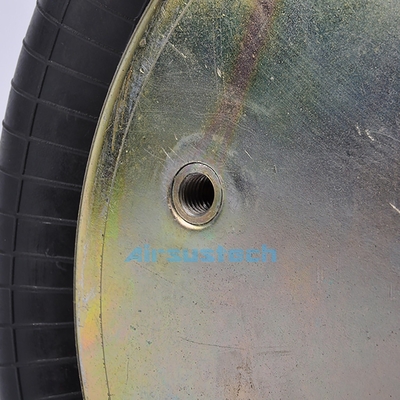

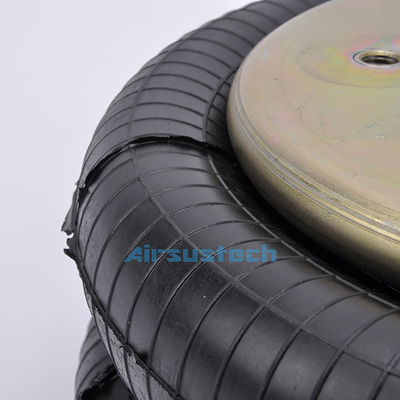

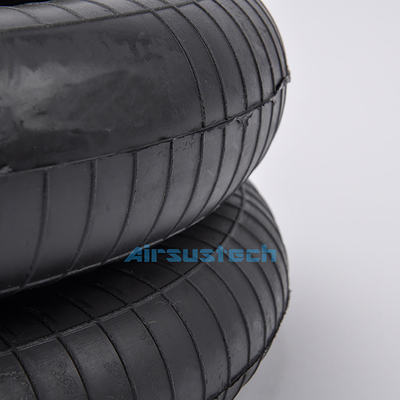

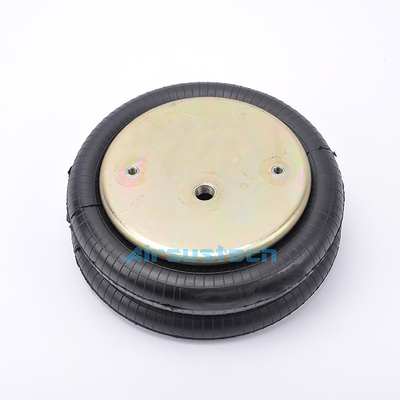

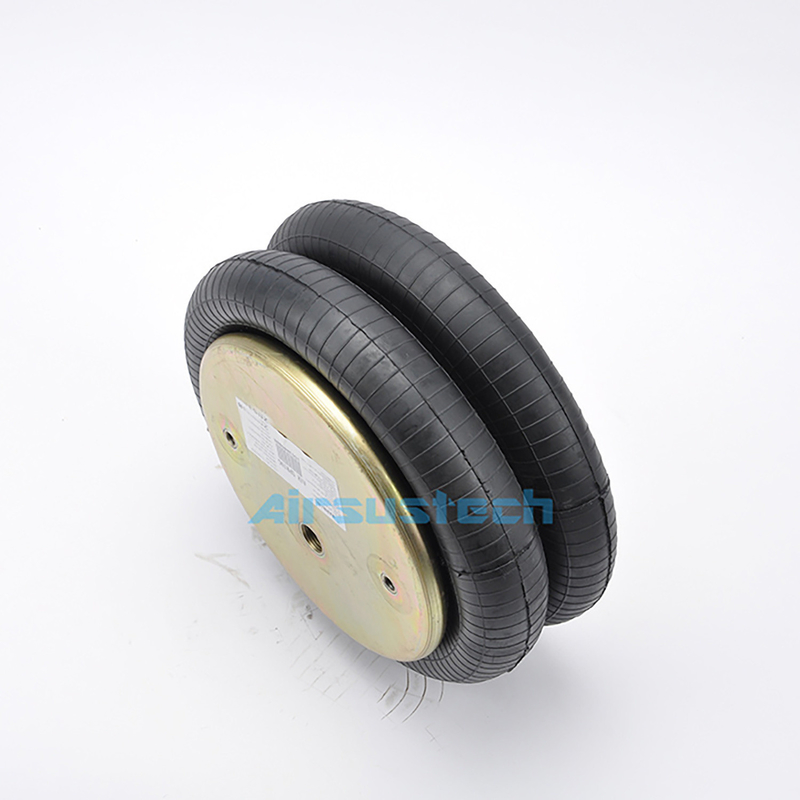

Product Images

High Quality Guomat 2B5338 Double Convoluted Air Shock Suspension G1/2 Air Hole 0

Company Profile

Guangzhou Guomat air spring Co., Ltd. is a domestic innovative enterprise dedicated to the research and production of automotive air springs. It is located in the beautiful flower city of Guangzhou. With modern workshops and advanced rubber air spring manufacturing equipment, it is one of the current air spring production bases in China. Our products are mainly used in the bases of commercial vehicles, passenger cars, and industrial machinery and equipment. The main products are: rubber air springs, passenger car and truck airbags, industrial airbags, air springs for papermaking machinery, large washing machines, rubber air springs for cars, etc. There are thousands of models and styles, and can also be customized according to customer requirements. Or the customer's existing product specifications to design and produce.
