6''X1 Air Spring Rubber Bellow PM/31061 Norgren Suspension Air Bags W01R584078

6''X1 Air Spring Rubber Bellow PM/31061 Norgren Suspension Air Bags W01R584078

Product Details
Item Name: Suspension Air Spring
Model Number: 1B6X1P
Material:Rubber and Aluminum
Warranty: 12 Months
Package: Strong Carton
Brand: GUOMAT/Neutral

1B6X1P GUOMAT Air Spring Technical Data

Max. stroke: 55 mm
Max. load at 8 bar: 12.4 kN
Max. diameter at 8 bar: 175 mm
Max. height: 110 mm
Min. height: 55 mm
Max. recommended operational height: 100 mm
plate: 175 mm
Mounting thread: 4xM8
Air inlet: G 1/2
Mmaterial bellow: Chloropren
Ttemperature range: - 40°C / +90°C

Packaging and Delivery

Why can We Choose Aluminum Cover for Air Spring?

1. Lightweight
This is the core advantage of aluminum material. The density of aluminum is about 1/3 of that of steel (about 2.7 g/cm³ vs 7.8 g/cm³).

Advantages: Significantly reduce the unsprung mass. The smaller the unsprung mass, the faster and more sensitive the suspension system will react to road bumps. This can bring:

a, Better handling and stability: The vehicle has less roll when cornering and the tires have better ground contact.

b, Higher ride comfort: The suspension can filter out road vibration more effectively.

c, Reduce tire wear: Reduce tire bounce.

d, Improve fuel efficiency/electric range: Reduce vehicle weight and reduce energy consumption.

2. Excellent strength-to-weight ratio
Although the absolute strength of pure aluminum is not as good as that of high-strength steel, aluminum alloys can achieve very high strength levels through alloying (such as adding elements such as magnesium, silicon, zinc, etc.) and heat treatment (such as T6 state).

Advantages: The cover made of high-strength aluminum alloy can withstand the high pressure and working load inside the air spring (such as supporting the weight of the vehicle body and absorbing impact) while maintaining the advantage of lightweight. Its strength is sufficient to meet the structural requirements and sealing requirements of the air spring end cover.

3. Good thermal conductivity
Aluminum is a good conductor of heat, and its thermal conductivity is much higher than that of steel.

Advantages:

a, Heat dissipation: During the frequent compression and extension of the air spring, the internal air temperature will rise. The aluminum cover helps to conduct and dissipate this part of the heat faster to prevent excessive heat accumulation.

b, Protect seals: Overheating will accelerate the aging and failure of seals (such as O-rings). Good heat dissipation helps protect key seals and extend service life and reliability.

4. Good processing performance and surface quality

Aluminum (especially forged or extruded aluminum alloys) has good machinability (cutting, milling, drilling, etc.) and casting performance.

Advantages:

High precision and finish: Sealing surfaces with high dimensional accuracy and good surface finish can be processed, which is essential to ensure reliable sealing of air springs.

Complex shapes: It is easy to manufacture complex cover shapes by casting or forging to meet specific installation and functional requirements (such as integrated sensor interfaces, air passages, etc.).

Production efficiency: Good processing performance is conducive to improving production efficiency and reducing costs (especially in mass production).

5. Excellent corrosion resistance

A dense aluminum oxide protective film will naturally form on the surface of aluminum alloy. This film has good inertness and can effectively resist corrosion from the atmosphere, rain and road salt.

Advantages: As a suspension component, it is normal to be exposed to harsh chassis environments (water, mud, snow melting agents). Aluminum covers have longer service life and better appearance retention than ordinary steel, and usually do not require additional electroplating or painting anti-corrosion treatment (or only simple anodizing treatment), reducing maintenance requirements and long-term costs.

6. Good sealing fit

The smooth and flat sealing surface of the aluminum cover plate works well with the rubber seal ring.

Advantages: It helps to form a reliable airtight seal and prevent the air spring from leaking and failing. The deformation characteristics of aluminum when under pressure also help maintain the sealing contact pressure.

7. Non-magnetic:

Aluminum is a non-magnetic material.

Advantages: This is a useful feature in certain specific applications (such as near sensors that need to avoid magnetic field interference) or special environments.

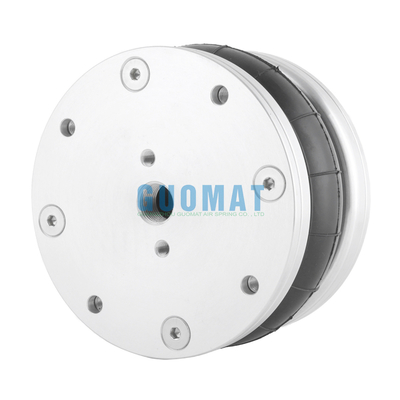

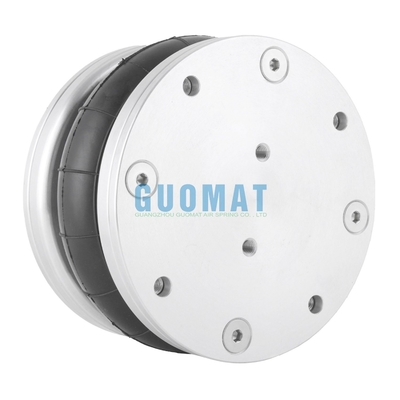

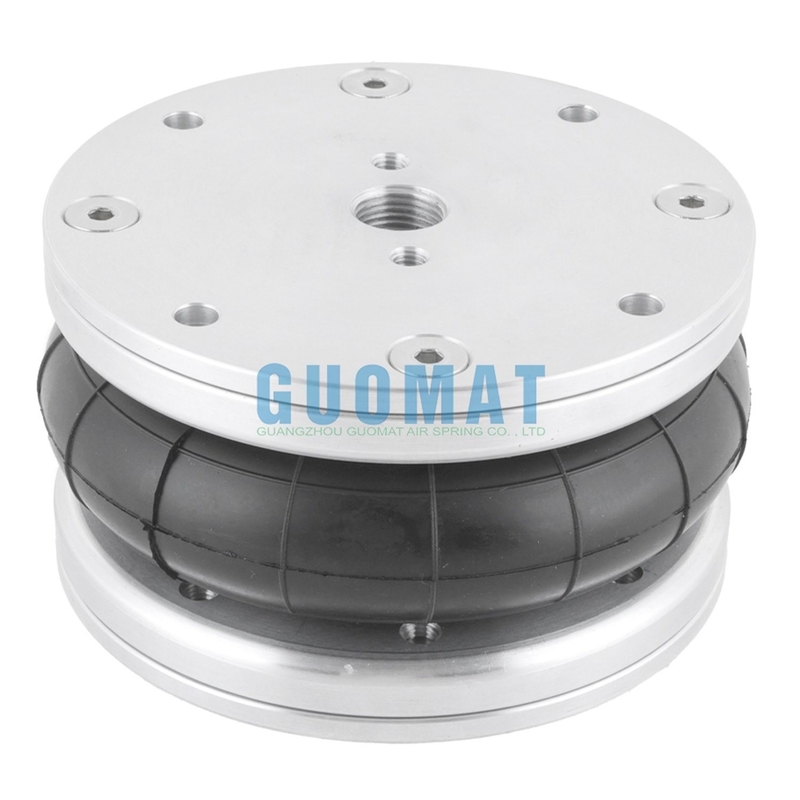

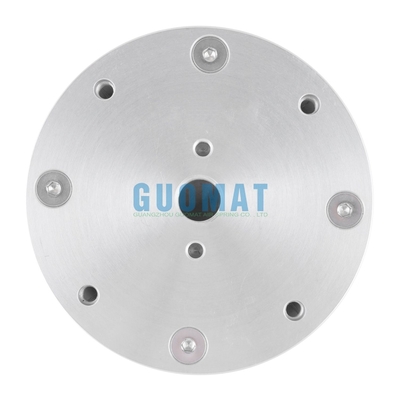

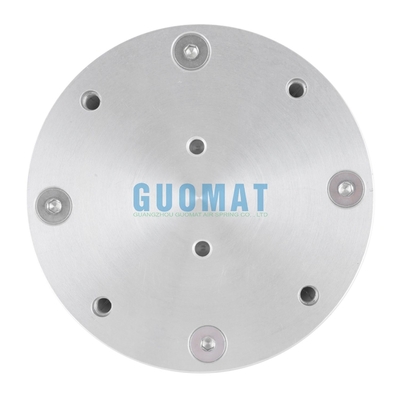

Product Images
