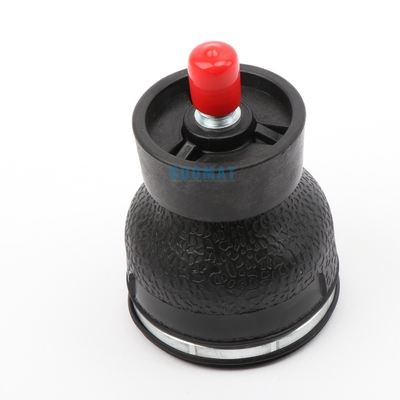

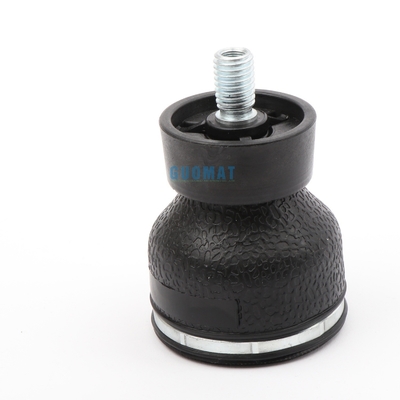

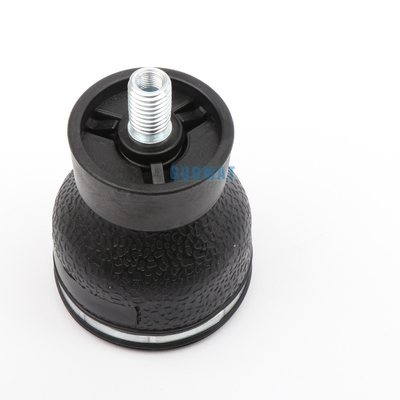

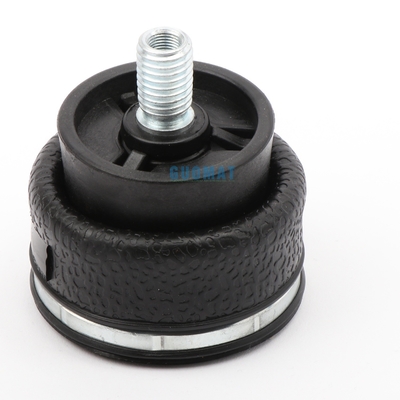

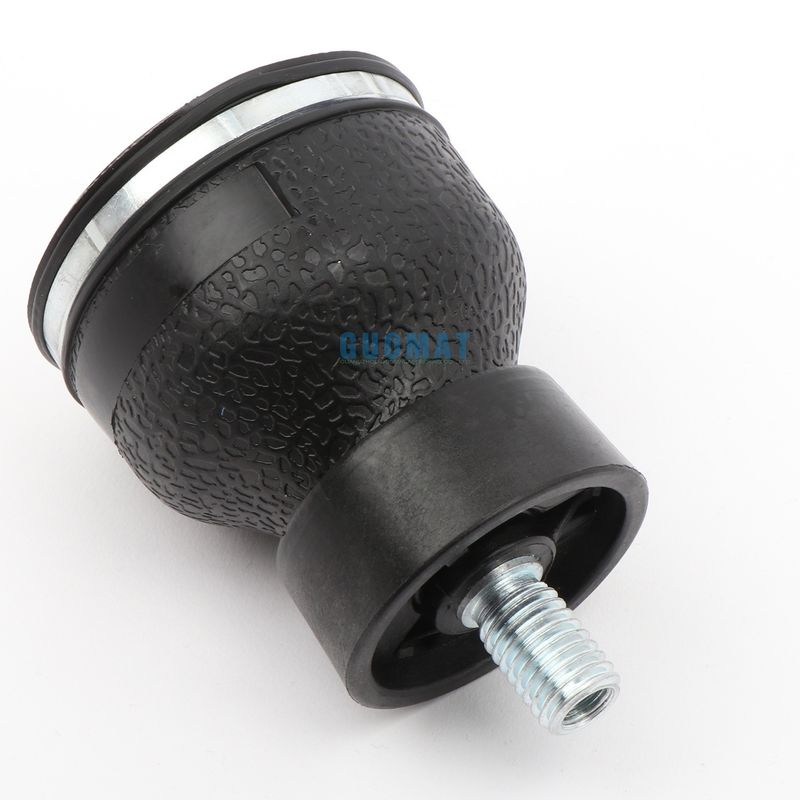

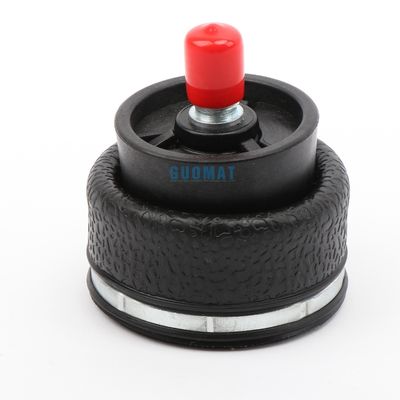

W02-358-3001 Firestone Sleeve Type Air Spring Style 1M1A-0 Replacement Air Actuator

Product Details:

Place of Origin:	Guangzhou,China
Brand Name:	GUOMAT
Certification:	ISO/Ts16949, ISO9001
Model Number:	G3001

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$29.9-39.9/pc
Packaging Details:	Carton packaging or packaging according to customer requirements
Delivery Time:	5-8 Working Days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10,000 Per Week

Contact Now

Detailed Product Description

Material:	Rubber And Iron	OEM:	Yes
N.W.:	0.26 Kg	Pressure Ability:	0.2-0.8 M PA
Air Inlet:	G1/8	Top Plate Hole/Stud:	3/8-16unc
Bottom Plate Dia:	60.96 Mm	Type:	Gas-Filled

W02-358-3001 Firestone Sleeve Type Air Spring Style 1M1A-0 Replacement Air Actuator

Product Description

Main Products:Air Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

Product Name: Sleeve Air Spring

Warranty: 12 Months

Material: Rubber+Steel

GUOMAT NO.: G3001

Type: Gas Filled

Place of Origin: Guangzhou,China

Certification: ISO/TS16949:2009

Packing: Neutral Packing

MOQ : 1 Pcs

Quality: High-Quality

Position: Auto/Truck parts

Application: Auto Suspension Systems

OEM Number/Cross Reference Number

Firestone Style Number: 1M1A-0

Firestone Part Number: W023583001

Firestone Part Number: W02 358 3001

Firestone Part Number: W02-358-3001

Firestone Part Number: WO23583001

Firestone Part Number: WO2 358 3001

Firestone Part Number: WO2-358-3001

Detail		Firestone Assembly Number
Style 1M1A-0	Blind nut,1/8NPT,Plastic stud	W02-358-3000
Style 1M1A-0	Blind nut,1/8NPT,brass stud	W02-358-3001
Teo Ply Bellows	Blind nut,1/8NPT,brass stud,stainless steel ring	W02-358-3005

Assembly Height: 2.0 inch

Volume@60PSIG: 6in³

@20PSIG: 110

@40PSIG: 230

@60PSIG: 340

@80PSIG: 460

@100PSIG: 580

GUOMAT air spring solemn commitment to the customer:

1, we don't spell at a low price, we only make quality products.
2, the same price on the market of air spring, we must be the best quality.
3, the same quality of air spring on the market, we must be the best price.
4, different regions, the same price of air spring there will be a slight difference, because of considering the freight after wait for a reason.
5, GUOMAT air spring not profiteering, only genuine, solid products.
6, all customers for the product quality problems need to be replaced, we have to change.

Packing List of G3001 Air Spring :

Description	PCS	Net Weight	Package Weight	Gross Weight	Length (cm)	Width (cm)	Height (cm)	Measurememt (cbm)
Air Suspension	1	0.6kg	0.4kg	1.0kg	12	9.2	9.2	0.100102
Shipping Terms	By DHL/UPS/FEDEX/TNT/AIRWAY/LCL/FCL or By Sea. It will take about 1 to 4 working days to reach By Express.
Payment Terms	T/T, Western Union,Paypal and Others
