| Place of Origin: | GuangDong, China |
| Brand Name: | CONTITECH |
| Certification: | ISO/TS16949:2009 |
| Model Number: | FT 44-15 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Strong Carton Box Or As Customers Need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/week |
| Name: | Convoluted Rubber Air Spring /Airbag/Suspension | Spring Material: | Natural Rubber |
|---|---|---|---|
| Type: | Gas-filled | Color: | Black |
| Convolutions: | 3 | Connection Method: | Cover Connection |
| Package: | Brown Carton | Part No.: | FT 44-15 DI CR G3/8 |
| High Light: | W01-R58-4035 Suspension Air Spring,DI CR Suspension Air Spring,44-15 DI CR Suspension Air Spring |
||

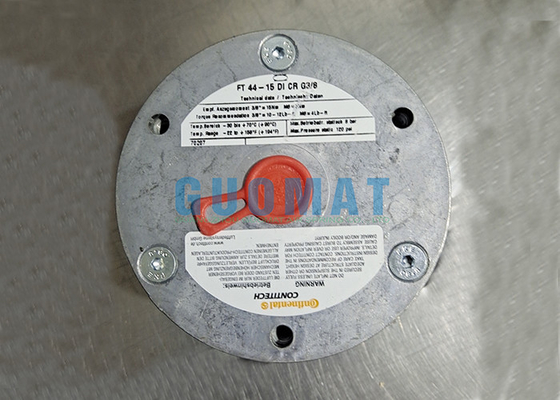

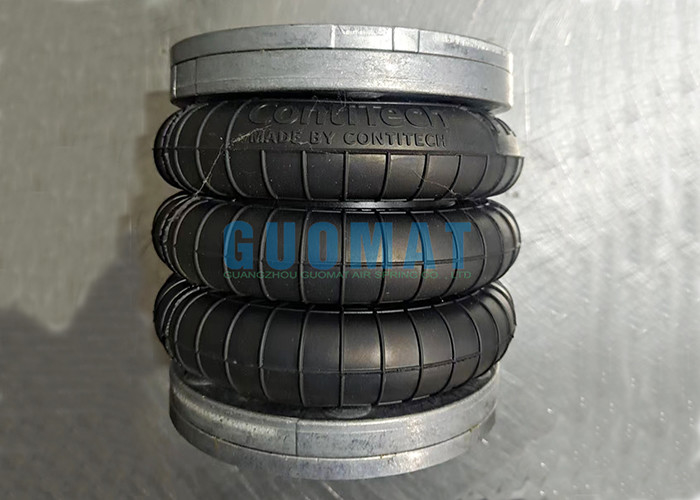

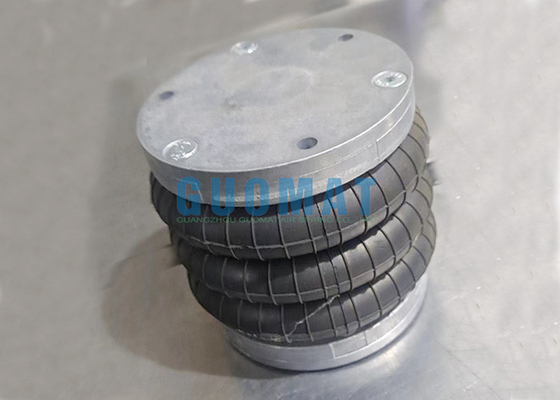

G3/8 FT 44-15 DI CR Contitech Triple Convolued Suspension Air Spring W01-R58-4035 Air Bellows
Product Description
Brand: CONTITECH
Part Number: FT44-15
Part Number: FT 44-15
Part Number: FT44-15 DI
Part Number: FT 44-15 DI
Part Number: FT44-15 DI CR
Part Number: FT 44-15 DI CR
Part Number: FT44-15 DI CR G3/8
Part Number: FT 44-15 DI CR G3/8
Part Number: FT44-15 DI CR 70207
Part Number: FT 44-15 DI CR 70207
FT 44-15 Contitech Suspension Air Spring Technical Data
Min. pressure: 0 bar
Return force to min height: ≤100 N
Overall weight: 1.05KG
Item | Parameter |
Maximum height | 200mm |
Minimum height | 90mm |
Compression height | 110mm |
Top and bottom cover diameter | 110mm |
Threaded hole specifications | M6 |
Air hole specifications | G3/8 |
Center distance between threaded holes | 93mm |
Rubber bellow maximum outer diameter | 125mm |
Suitable installation diameter | 140mm |
FT44-15 Replaces these Air Springs(Air Bellows)
FIRESTONE W01R584035 / W01 R58 4035 / W01-R58-4035
FIRESTONE WO1R584035 / WO1 R58 4035 / WO1-R58-4035
NORGREN PM/31043 / PM 31043 / PM31043
DUNLOP PNEURIDE 41/2''x3 / 4 1/2''x3 / 4.5x3
DUNLOP SPRINGRIDE SP2895
PARKER 9109402
Industrial Air Spring
Industrial air springs are a common type of actuator and vibration isolator used in a variety of industries. It is designed to provide support, cushioning and vibration control for a variety of applications. Industrial air springs are known for their durability and simplicity, making them suitable for many industrial and commercial uses.
Types of Industrial Air Springs
There are two main types of industrial air springs: rolling cams and bellows.
①
Rolling cam air springs use a single rubber bladder that folds inward and rolls outward depending on the direction and distance it moves. It offers higher usable stroke length, but has limited strength and power capacity due to its tendency to bulge.
②
Bellows air springs use one to three shorter bellows reinforced with waistbands. It has ten times the power of the rolling cam version and has a longer life cycle rating. However, it has less available travel.
Contitech Triple Convoluted Air Spring
Contitech FT 22-6 DI CR G1/4
Contitech FT 44-15 DI CR G3/8
Contitech FT 76-20 DI CR G1/2
Contitech FT 76-20 DS CR G1/2
Contitech FT 138-26 DS G1/2
Contitech FT 210-32 DS G1/2
Contitech FT 412-32 DS G1/2
Contitech FT 614-36 DS G1/2
Contitech FT 816-40 DS G1/2
The Drawing:
