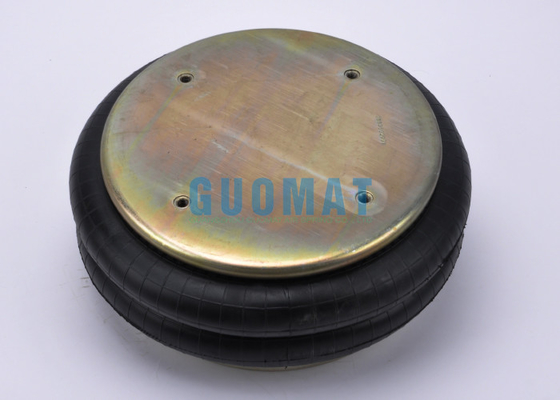

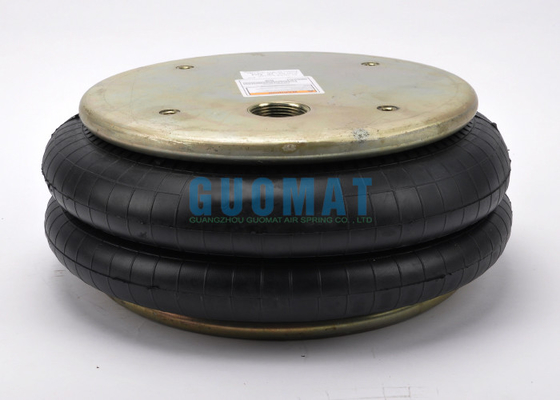

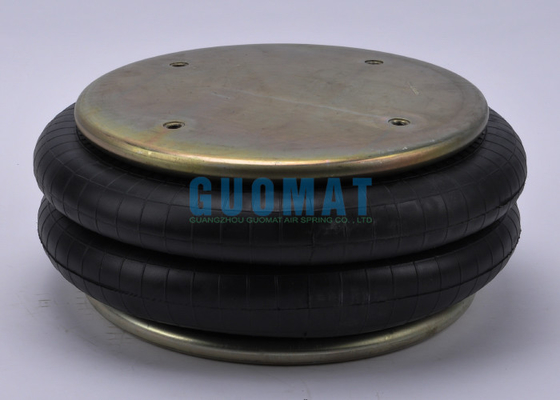

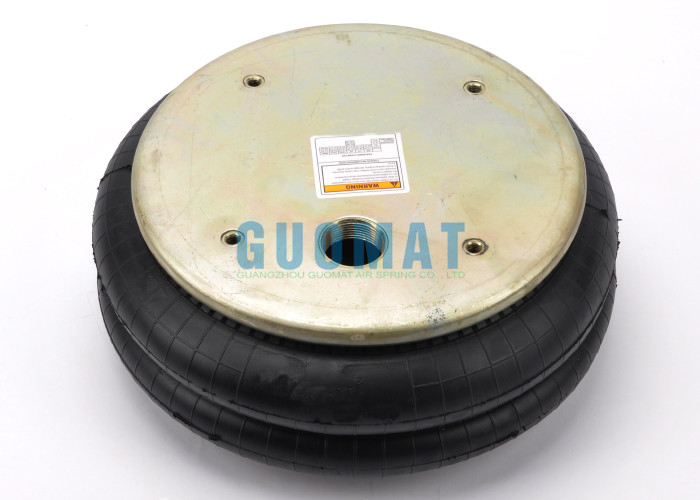

FD 530-35 545 Contitech Rubber Double Convoluted Air Spring 2B12-427 Goodyear Airbag Replacement

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B7781

Payment & Shipping Terms:

Minimum Order Quantity:	6PCS
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Product Name:	Convoluted Suspension Air Spring	Material:	Rubber+Steel
Warranty:	1 Year	Sample:	Available
Contitech:	FD 530-35 545	Car Fitment:	Air Suspension
Packaging Details:	Carton/Pallet	Firestone:	W01-358-7781
Highlight:	2B12-427 Goodyear Airbag Replacement , Rubber Double Convoluted Air Spring

FD 530-35 545 Contitech Rubber Double Convoluted Air Spring 2B12-427 Goodyear Airbag Replacement

Product Description

GUOMAT NO.: 2B7781

Cross Reference:

Contitech: FD 530-35 545

Contitech: FD530-35 545

Firestone: W01-358-7781

Firestone: W01 358 7781

Firestone: W013587781

Firestone: 233-2

Goodyear: 2B12-427

Goodyear: 2B 12-427

Automann: SP2B34RC-7781

Fleepride: AS7781

Taurus: 6412

Triangle: AS-4545

TRP: AS77810

Original Parts:

Cush OE No.: c-0083

Ridewell OE No.: 1003587781C

Technical Parameters

Parameter	Value/Description
Applicable models	Heavy trucks, semi-trailers, RVs
Working pressure	3-8 Bar
Temperature range	-40℃ ~ +80℃
Interface type	Standard 1/4" NPT air nozzle
Certification standards	ISO/TS16949:2009
Cover plate diameter	315mm
Threaded hole	M10X1.5
Center distance between threaded holes	159mm
Maximum outer diameter	325mm
Minimum height	90mm
Maximum height	300mm
Compressed height	210mm
