Rubber Singe Convoluted Air Spring FS330-11 468 Contitech 1B12-301 Goodyear Air Suspension

Product Details:

Place of Origin:	GuangDong, China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	1B5330P03

Payment & Shipping Terms:

Minimum Order Quantity:	6pcs
Price:	$59.9-69.9/pc
Packaging Details:	Strong Carton Box Or As Customers Need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Type:	Suspension Air Spring	Warranty:	12 Months
Material:	Rubber + Steel	Special Features:	Shock Absorption
Firestone:	W01-358-7009	Contitech:	FS 330-11 468
Goodyear:	1B12-301	Style:	Industrial Equipment Shock Absorption
Highlight:	FS330-11 468 Contitech Air Suspension , Rubber Singe Air Suspension , Goodyear Air Suspension

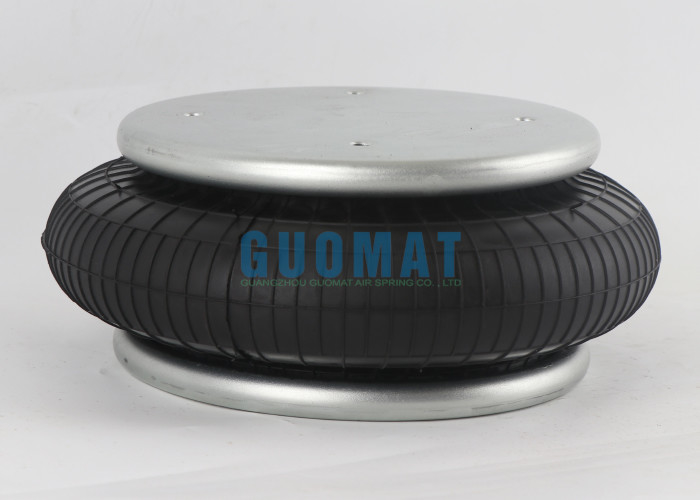

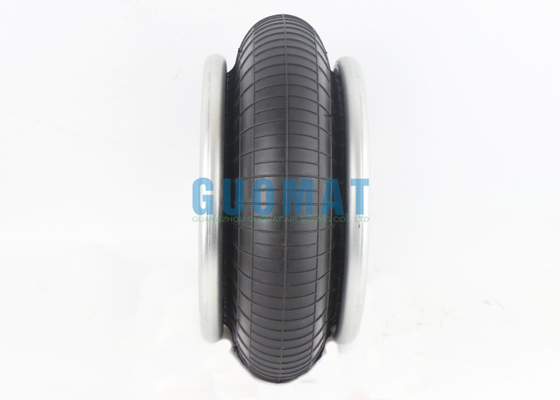

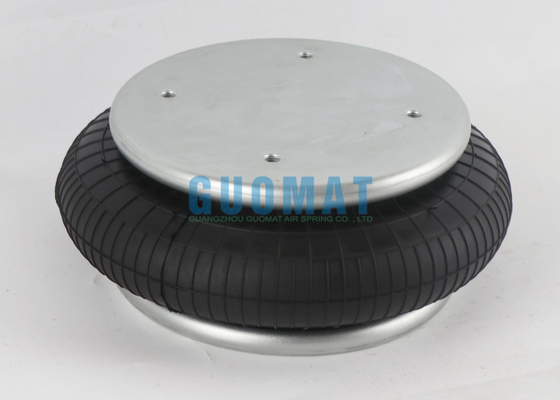

Rubber Singe Convoluted Air Spring FS330-11 468 Contitech 1B12-301 Goodyear Air Suspension

Product Description

GUOMAT NO.: 1B5330P03

Can Replace Firestone W01-358-7009 / WO1-358-7009

Can Replace Firestone W01 358 7009 / WO1 358 7009

Can Replace Firestone W013587009 / WO13587009

Can Replace Contitech FS330-11 468

Can Replace Contitech FS 330-11 468

Can Replace Goodyear 1B12-301

Can Replace Goodyear 1B 12-301

Can Replace Goodyear 578913301

Can Replace Goodyear 578 91 3 301

Can Replace Goodyear 578-91-3-301

Can Replace Triangle 6374
Can Replace Triangle 4468
Can Replace SAF Holland 90557002
Can Replace SAF Holland AR741

1B5330P03 Suspension Air Bellow Techncal Data

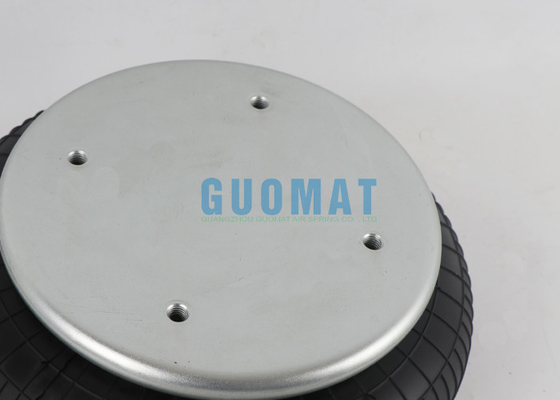

The maximum outer diameter of GUOMAT 1B5330P03 is 325mm (under 7Bar air pressure), the diameter of the top and bottom covers is 231mm, G1/4 air holes, M10X1.5 threaded holes, the center distance between the threaded holes is 140mm, the threaded holes are 57mm away from the air holes, the maximum height is 160mm, the minimum height is 55mm, and the compressed height is 105mm.

Vibration Isolation-Dynamic Characteristic Values

Design Height: H recommended 130mm,minimum100mm

Pressure P	bar	3	4	5	6	7	8	Vol.V(I)
Force (Load)	kN	10.7	14.2	17.8	21.8	25.4	29.1	6.8
Spring Rate	N/cm	2645	3290	3935	4580	5225	58702.5
Natural Frequency	Hz	2.5	2.4	2.4	2.3	2.3	2.3

Pneumatic Application-Static Characteristic Values

Force P

Pressure	Bar	3	4	5	6	7	8	Vol.(I)
Height H(mm)	130	10.7	14.2	17.8	21.8	25.4	29.0	7.0
	120	11.9	15.7	19.6	23.8	27.8	31.8	6.3
	110	12.7	16.9	21.1	25.8	30.1	34.4	5.8
	100	13.6	18.1	22.7	27.6	32.1	36.7	5.6
	90	14.4	19.2	24.0	29.1	34.0	38.9	5.3
	80	15.0	20.2	25.2	30.5	35.5	40.6	4.9
	70	15.5	20.9	26.2	31.6	36.9	42.1	4.3
	60	16.0	21.6	27.1	32.6	38.0	43.3	3.9
